AMERICAN BRIGHT
OPTOELECTRONICS CORP.
•
Bi-Color DOMILED BL-PMxx-xJS Series
Feature:
1. High brightness bi-color surface mount LED.
2. 120° viewing angle.
3. Small package outline (LxWxH) of 2.8 x 3.2 x 1.9 mm.
4. Qualified according to JEDEC moisture sensitivity Level 2.
5. Compatible to both IR reflow soldering and TTW soldering.
•

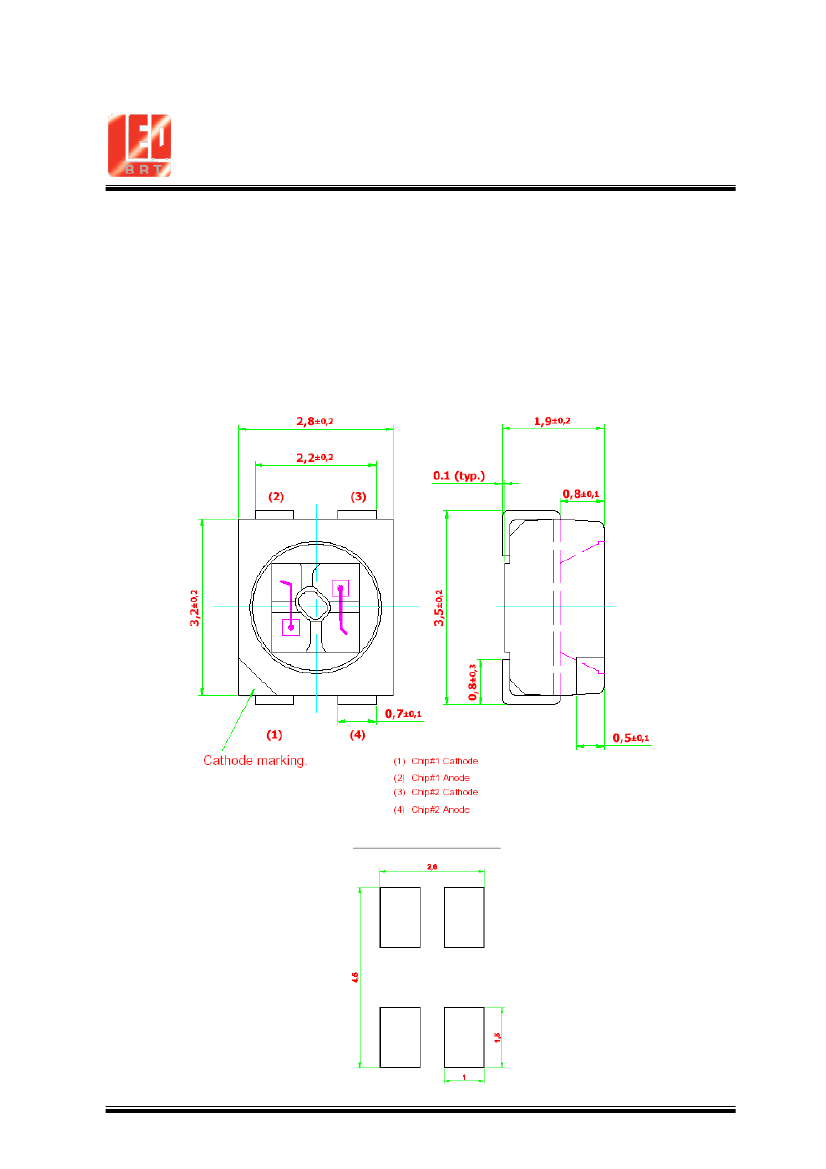

Package Dimension:
Recommended Solder Pad
V.13 Page: 1 of 6
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
•
Bi-Color DOMILED BL-PMxx-xJS Series
Absolute Maximum Ratings:
Parameter
DC forward current.
Maximum Value
AS AlInGaP
30
Peak pulse current.
(tp
≤
10
µs,
Duty cycle = 0.005)
Reverse voltage.
LED junction temperature.
Operating temperature.
Storage temperature.
AS AlInGaP
1000
5
125
-40 … +100
-40 … +100
InGaN
20
InGaN
200
V
°C
°C
°C
mA
Unit
mA
•
Optical Characteristics (T
A
= 25
o
C):
V
f
at I
f
=20mA
Typ.
Red
Super Red
Green
True Green
Blue
View Angle
Max
2.45
2.45
2.45
4.25
4.25
2.2
2.2
2.2
3.7
3.7
120
•
Vf Binning:
Vf Bin @ 20mA
Red, Yellow, Green;
AlInGaP (V)
00
01
02
03
1.25 … 1.55
1.55 … 1.85
1.85 … 2.15
2.15 … 2.45
True Green & Blue
InGaN (V)
3.05 … 3.35
3.35 … 3.65
3.65 … 3.95
3.95 … 4.25
Forward voltage, Vf is measured with an accuracy of
±0.1
V.
V.13 Page: 3 of 6
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
•
Bi-Color DOMILED BL-PMxx-xJS Series
Typical electro-optical characteristics curves:
Fig. 1 Relative luminous intensity vs. forward current.
Intensity vs. DC Forward Current
(AS AlInGaP: Red, Yellow & Green)
Relative intensity. Normalized at 20 mA.
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
FORWARD CURRENT (mA)
Intensity vs. DC Forward Current
( InGaN : True Green & Blue)
Relative intensity. Normalized at 20 mA.
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
FORWARD CURRENT (mA)
Fig. 2 Forward current vs. forward voltage
Forward Current (mA) vs. Forward Voltage
(AS AlInGaP: Red, Yellow & Green)
90
80
Forward Current (mA)
Forward Current (mA)
90
80
70
60
50
40
30
20
10
0
Forward Current (mA) vs. Forward Voltage (InGaN:
True Green & Blue)
70
60
50
40
30
20
10
0
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
Forward Voltage (V)
1
1.5
2
2.5
3
3.5
4
4.5
5
Forward Voltage (V)
Fig. 3 Radiation pattern.
30°
20°
10°
0°
1.0
Fig. 4 Maximum forward current vs. temperature
35
30
40°
0.8
25
50°
0.6
Forward Current, If
20
AlInGaP
InGaN
15
60°
70°
80°
0.4
10
0.2
5
0
90°
0
10
20
30
40
50
60
70
80
90
100
Ambient Temperature
V.13 Page: 5 of 6
