BL-PPB-CES-C10 datasheet, PDF - EEWORLD Datasheet

BL-PPB-CES-C10: DescriptionNOVALED InGaN Super high brightness surface mount LED.; CategoryLED optoelectronic/LED photoelectric; File Size270KB，6 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-PPB-CES-C10 Overview

NOVALED InGaN Super high brightness surface mount LED.

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	BRIGHT
package instruction	6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknow
color	BLUE
Configuration	SINGLE
Maximum forward current	0.05 A
Lens type	WATER CLEAR
Nominal luminous intensity	250.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
shape	ROUND
size	3.3 mm
surface mount	YES
perspective	120 deg

AMERICAN BRIGHT

OPTOELECTRONICS CORP.

Preliminary

NOVALED InGaN BL-PPx-CEx Series

•

Feature:

1. Super high brightness surface mount LED.

2. High flux output.

3. 120° viewing angle.

4. Compact package outline (LxW) of 6.0 x 6.0 mm. Ultra low height profile – 1.5 mm.

5. Designed for high current drive; typically 50 mA.

6. Low thermal resistance; Rth

(js)

= 20 K/W.

7. Compatible to both IR reflow soldering.

•

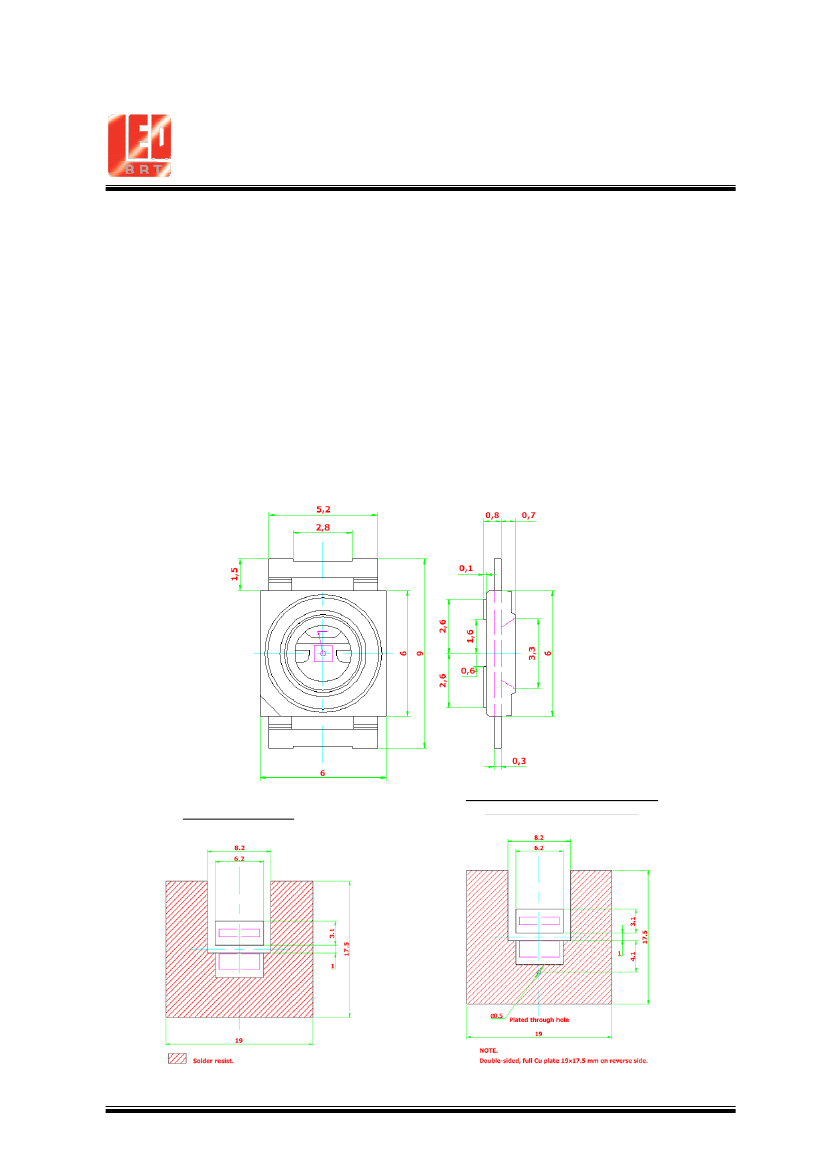

Package Dimension:

Solder Pad Design

Recommended Solder Pad Design

For Better Heat Dissipation.

V.2 Page: 1 of 6

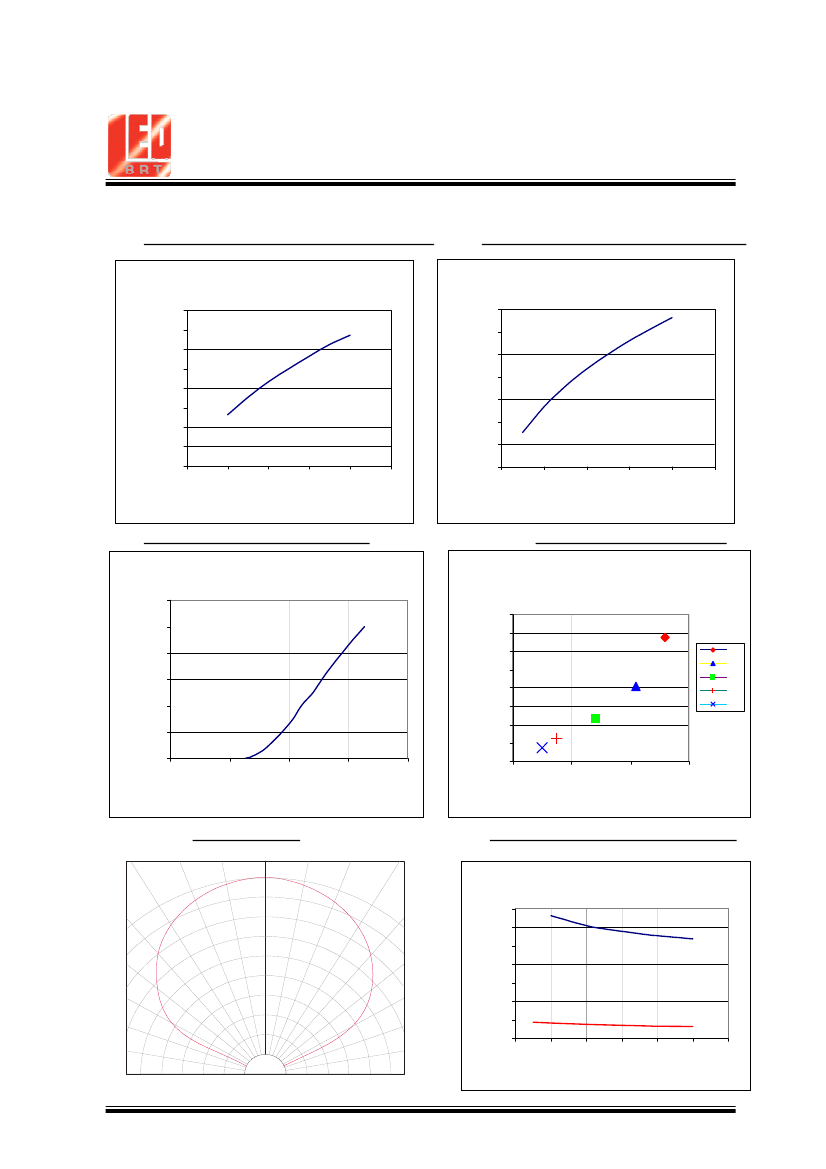

	BL-PPB-CES-C10	BL-PPT-CES-C10	BL-PPW-CED-C10
Description	NOVALED InGaN Super high brightness surface mount LED.	NOVALED InGaN Super high brightness surface mount LED.	NOVALED InGaN Super high brightness surface mount LED.
package instruction	6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2	6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2	6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknow	unknow	unknow
color	BLUE	TRUE GREEN	WHITE
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A
Lens type	WATER CLEAR	WATER CLEAR	DIFFUSED
Nominal luminous intensity	250.0 mcd	1000.0 mcd	1000.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.5 mm	1.5 mm	1.5 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND	ROUND
size	3.3 mm	3.3 mm	3.3 mm
surface mount	YES	YES	YES
perspective	120 deg	120 deg	120 deg
Is it lead-free?	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-
Maker	BRIGHT	-	BRIGHT
