BL-PWB-UJS-C10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-PWB-UJS-C10

BL-PWB-UJS-C10: DescriptionPower DOMILED InGan High brightness surface mount LED.; CategoryLED optoelectronic/LED photoelectric; File Size240KB，8 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-PWB-UJS-C10 Overview

Power DOMILED InGan High brightness surface mount LED.

BL-PWB-UJS-C10 Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknow
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	212.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.8 mm
method of packing	TAPE AND REEL
shape	ROUND
size	2.4 mm
surface mount	YES
perspective	120 deg

Preview

Download Datasheet

View All

AMERICAN BRIGHT

OPTOELECTRONICS CORP.

Power DOMILED InGan BL-PWx-xJS Series

•

Feature:

1. High brightness surface mount LED.

2. 120° viewing angle.

3. Small package outline (LxWxH) of 2.8 x 3.2 x 1.8 mm.

4. Qualified according to JEDEC moisture sensitivity Level 2.

5. Compatible to both IR reflow soldering and TTW soldering.

•

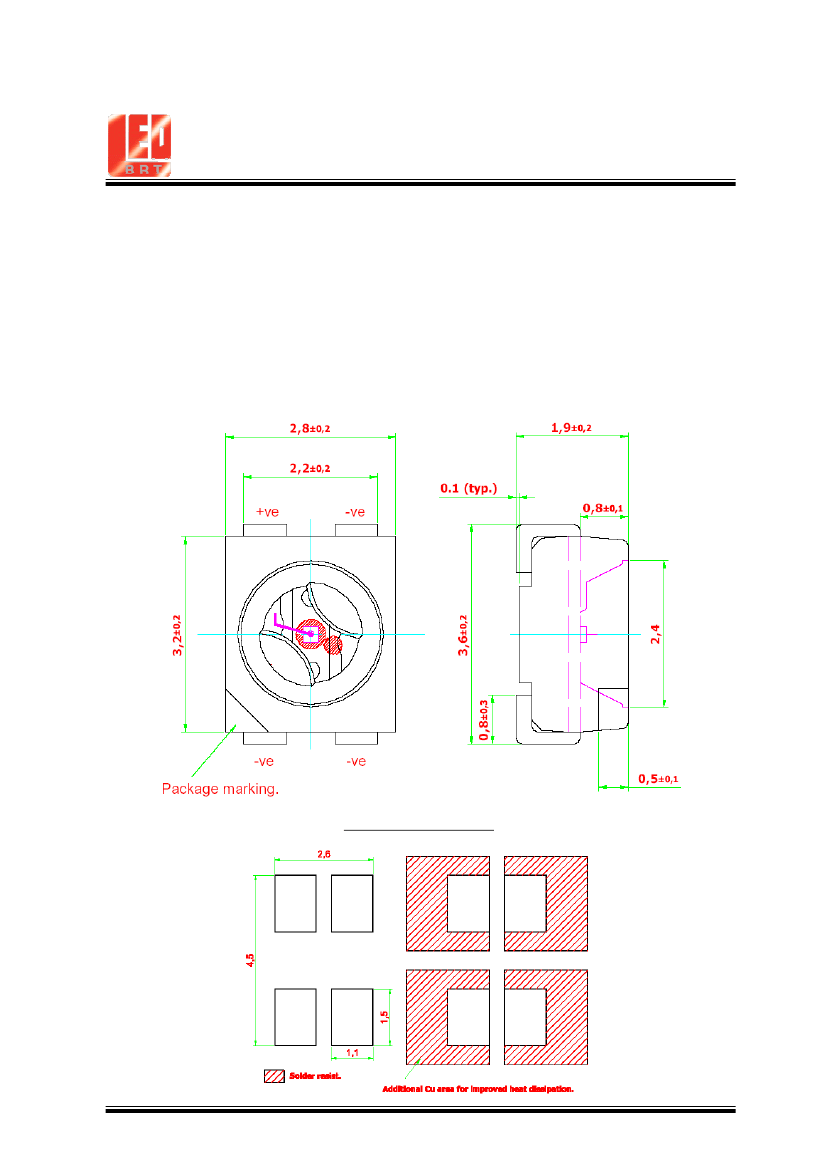

Package Dimension:

Recommended Solder Pad

V.5 Page: 1 of 8

BL-PWB-UJS-C10 Related Products

	BL-PWB-UJS-C10	BL-PWB-SJS-C20	BL-PWC-CJS-C10	BL-PWC-SJS-C10	BL-PWC-UJS-C10	BL-PWC-SJS-C20	BL-PWT-CJS-C10	BL-PWT-SJS-C10	BL-PWT-UJS-C10
Description	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.	Power DOMILED InGan High brightness surface mount LED.
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknow	unknow	unknow	unknown	unknow	unknow	unknow	unknow	unknow
color	BLUE	BLUE	CYAN	CYAN	CYAN	CYAN	TRUE GREEN	TRUE GREEN	TRUE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Nominal luminous intensity	212.5 mcd	135.0 mcd	315.0 mcd	500.0 mcd	787.5 mcd	787.5 mcd	315.0 mcd	500.0 mcd	787.5 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	-	BRIGHT	BRIGHT	BRIGHT
Lens type	WATER CLEAR	-	-	WATER CLEAR	WATER CLEAR	-	-	WATER CLEAR	WATER CLEAR
