SLW-144-01-L-S: DescriptionBoard Connector, 44 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SLW-144-01-L-S Overview

Board Connector, 44 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT

SLW-144-01-L-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TIGER BUY, LOW PROFILE
subject depth	0.18 inch
body length	4.4 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	5.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.115 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

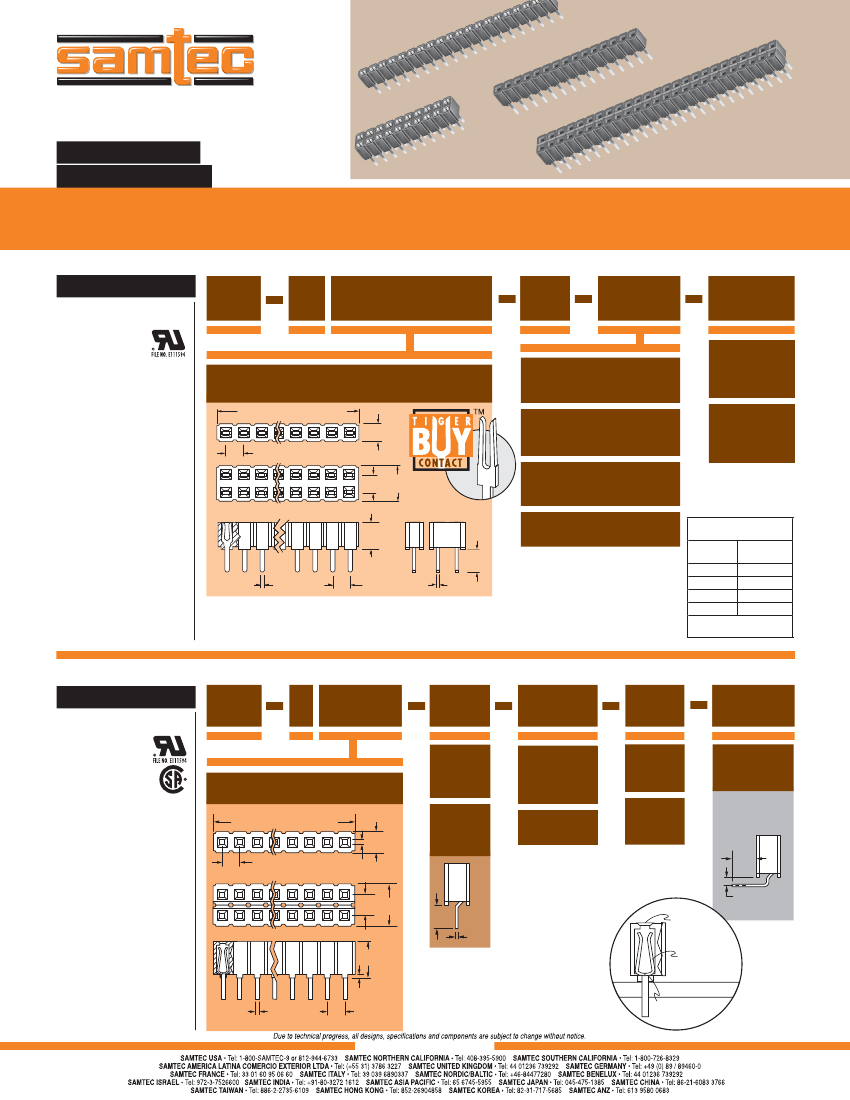

F-213

SLW–120–01–T–S

CES–115–01–T–S

CES–125–01–T–D

(2,54 mm) .100"

SLW, CES SERIES

SLW–110–01–T–D

LOW PROFILE SOCKET STRIPS

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SLW

Insulator Material:

Black G.F. Polyester

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ"(1,27 µm) Ni

Voltage Rating:

550 VAC

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

(2,16 mm) .085" to

(2,92 mm) .115"

Insertion Force:

(Single contact only)

(3,34 N) 12 oz avg.

(0,64 mm) .025" SQ pin

Withdrawal Force:

(Single contact only)

(1,67 N) 6 oz avg.

(0,64 mm) .025" SQ pin

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

SLW

1

NO. PINS

PER ROW

01

PLATING

OPTION

ROW

OPTION

01 thru 50

(2,54) .100 X No. of Positions

01 02

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Single

Row

–S

(2,54)

.100

(2,54) .100 TYP

02

= 10µ" (0,25 µm) Gold on contact,

Matte Tin on tail

–L

= Double

Row

–D

(2,54) (4,95)

.100 .195

01

= 20µ" (0,51 µm) Gold on contact,

Gold ﬂash on balance

–G

–T

(4,57)

.180

(2,92)

.115

(0,64) .025

(2,54) .100

(0,41) .016

= Matte Tin

Note:

Other Gold

plating options available.

Contact Samtec.

Mates with:

TLW, TSW, MTLW, MTSW,

HW, EW, ZW, HTSW, HMTSW, TSM

CURRENT RATING

(PER CONTACT)

AMBIENT SLW mated

TEMP

with TSW

20°C

7.1A

40°C

6.2A

60°C

5.8A

95°C

3.7A

6 POSITIONS (2x3)

POWERED

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?CES

Insulator Material:

Black G.F. Polyester

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

1A/Contact

Voltage Rating:

333 VAC

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

(2,62 mm) .103" to

(4,06 mm) .160"

Insertion Force:

(Single contact only)

(2,22 N) 8 oz avg.

(0,64 mm) .025" SQ pin

Withdrawal Force:

(Single contact only)

(1,11 N) 4 oz avg.

(0,64 mm) .025" SQ pin

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

CES

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

RA

OPTION

01 thru 50

01 02

= (3,25 mm)

.128

“A” Dim.

– 01

–L

= 10µ" (0,25 µm)

Gold contact,

Matte Tin on tail

= Single

Row

–S

= Right Angle

version

Style – 02 only

Single Row only

– RA

(2,54) .100 X No. of Positions

(3,05)

.120

(2,54)

.100 TYP

(0,71)

.028 SQ

02

= (5,66 mm)

.223

“A” Dim.

– 02

= Matte Tin

Note:

Other Gold plating

options available.

Contact Samtec.

–T

–D

= Double

Row

(3,05)

.120

(2,54)

(5,59)

.100

.220

01

(1,02)

.040

A

(0,25)

.010

Chamfered

(5,08)

.200

(0,51)

.020

(0,64)

.025

(2,54)

.100

Mates with:

TLW, TSW, MTLW,

MTSW, HW, EW, ZW,

DW, HTSW, PHT, HMTSW

Dual leaf

folded

contact

Closed bottom

contact
