RH101 thru RH105
SURFACE MOUNT GLASS PASSIVATED
BARRIER RECTIFIERS
FEATURES
●
Rating to 1000V PRV
●
Ideal for printed circuit board
●
Reliable low cost construction utilizing
REVERSE VOLTAGE
- 100
to
1000
Volts
FORWARD CURRENT
- 0.8
Amperes
MBS
.275(7.0)MAX
.067(1.7)
.057(1.3)
.051(1.3)
.035(0.9)
.165(4.2)
.150(3.8)
molded plastic technique results in inexpensive product
●
Lead tin plated copper
~ ~
+ -
.031(0.8)
.019(0.5)
.106(2.7)
.09(2.3)
.193(4.9)
.177(4.5)
.014(.35)
.006(.15)
MECHANICAL DATA
●
Polarity:Symbol molded on body
●
Weight: 0.0044 ounces,0.125 grams
●
Mounting position :Any
.043(1.1)
.027(0.7)
.067(1.7)
.057(1.3)
.106(2.7)
.09(2.3)
.008(0.2)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current (Note 1)
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load(JEDEC Method)
Peak Forward Voltage at 0.8A DC
Maximum DC Reverse Current
at Rated DC Bolcking Voltage
I
2
t Rating for Fusing (t＜8.3ms)
Maximum Reverse Recovery Time
Tyical Junction Capacitance Per Element
Tyical Thermal Resistance (Note3)
Operating Temperature Range
Storage Temperature Range
NOTES:1.Mounted on P.C. board.
(Note2)
@T
J
=25℃
@T
J
=125℃
@T
A
=40℃
SYMBOL
V
RRM
V
RMS
V
DC
I
(AV)
RH101
100
70
100
RH102
200
140
200
RH103
400
280
400
0.8
RH104
600
420
600
RH105
800
560
800
UNIT
V
V
V
A
I
FSM
V
F
I
R
I
2
t
T
RR
C
J
R
θJC
T
J
T
STG
150
40
1.15
5.0
500
3.7
250
13
75
-55 to +150
-55 to +150
500
A
V
uA
A
2
s
nS
pF
℃/W
℃
℃
2.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3.Thermal resistance junction to ambient.
~ 215 ~

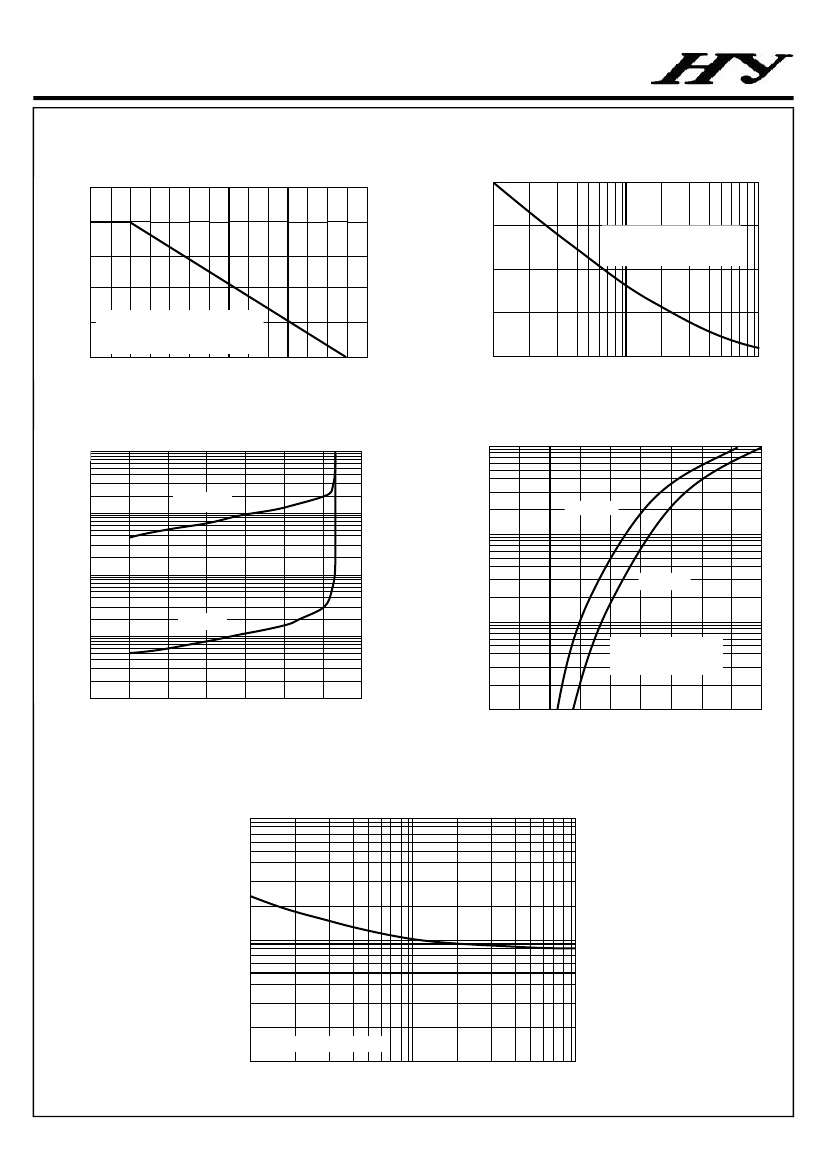

RATING AND CHARACTERTIC CURVES
RH101 thru RH105
FIG.1-FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT
AMPERES
1.0
AVERAGE FORWARD CURRENT
AMPERES
0.8
0.6
0.4
0.2
0.1
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE,
MOUNTED ON BOARD
SINGLE PHASE HALF WAVE 60Hz
RESISTIVE OR INDUCTIVE LOAD
FIG.2-MAXIMUM NON-REPETITVE
SURGE CURRENT
40
30
PULSE WIDTH 8.3ms
SINGLE HALF-SINE-WAVE
(JEDEC METHOD)
20
10
0
1
2
5
10
20
50
100
NUMBER OF CYCLES AT 60H
Z
FIG.4-TYPICAL FORWARD CHARACTERISTICS
10
FIG.3-TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT,(mA)
INSTANTANEOUS FORWARD CURRENT,(A)
10
T
J
=125℃
T
J
=125
℃
1.0
1.0
T
J
=
25
℃
T
J
=25℃
0.1
0.1
T
J
=25
℃
PULSE WIDTH 300us
0.01
0
20
40
60
80
100
120
140
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
PERCENT OF RATED PEAK REVERSE VOLTAGE，(%)
INSTANTANEOUS FORWARD VOLTAGE， VOLTS
FIG.5-TYPICAL JUNCTION CAPACITANCE
100
CAPACITANCE(
P
F)
10
T
J
=25
℃
，f=1MH
Z
1.0
1
4
10.0
100
REVERSE VOLTAGE， VOLTS
