17HE-23150-C(D8A2) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 17HE-23150-C(D8A2)

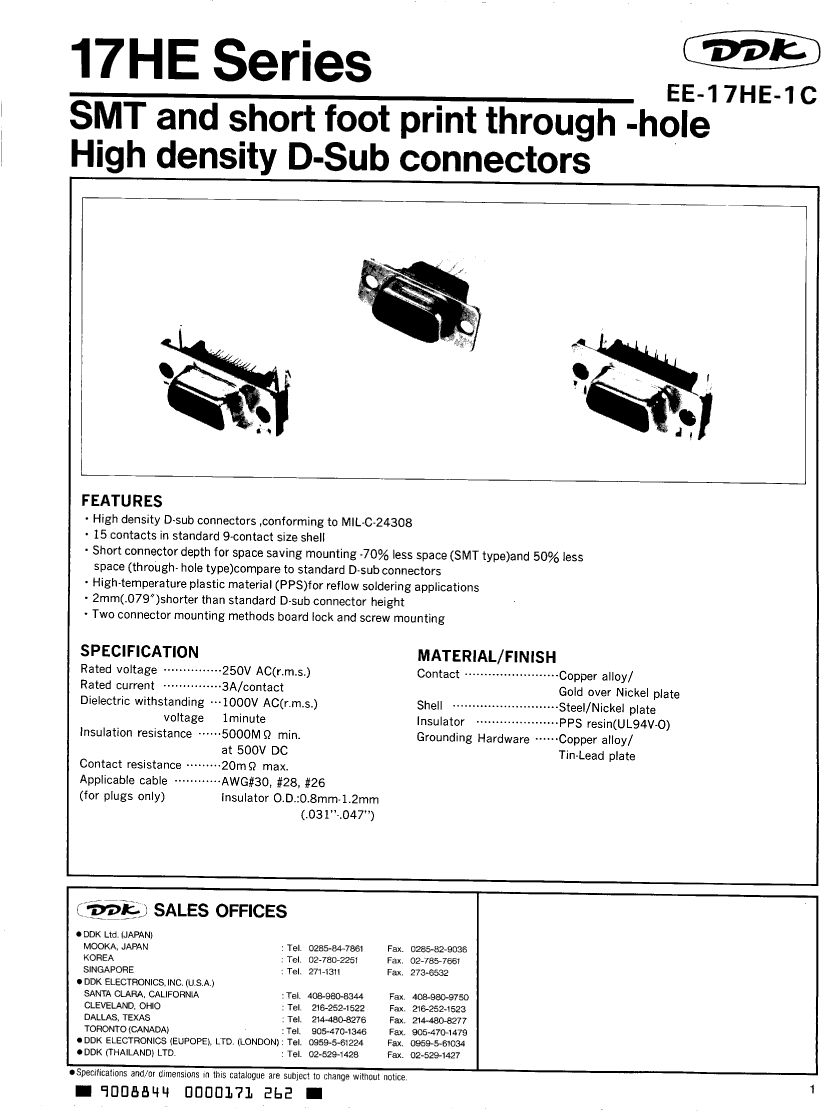

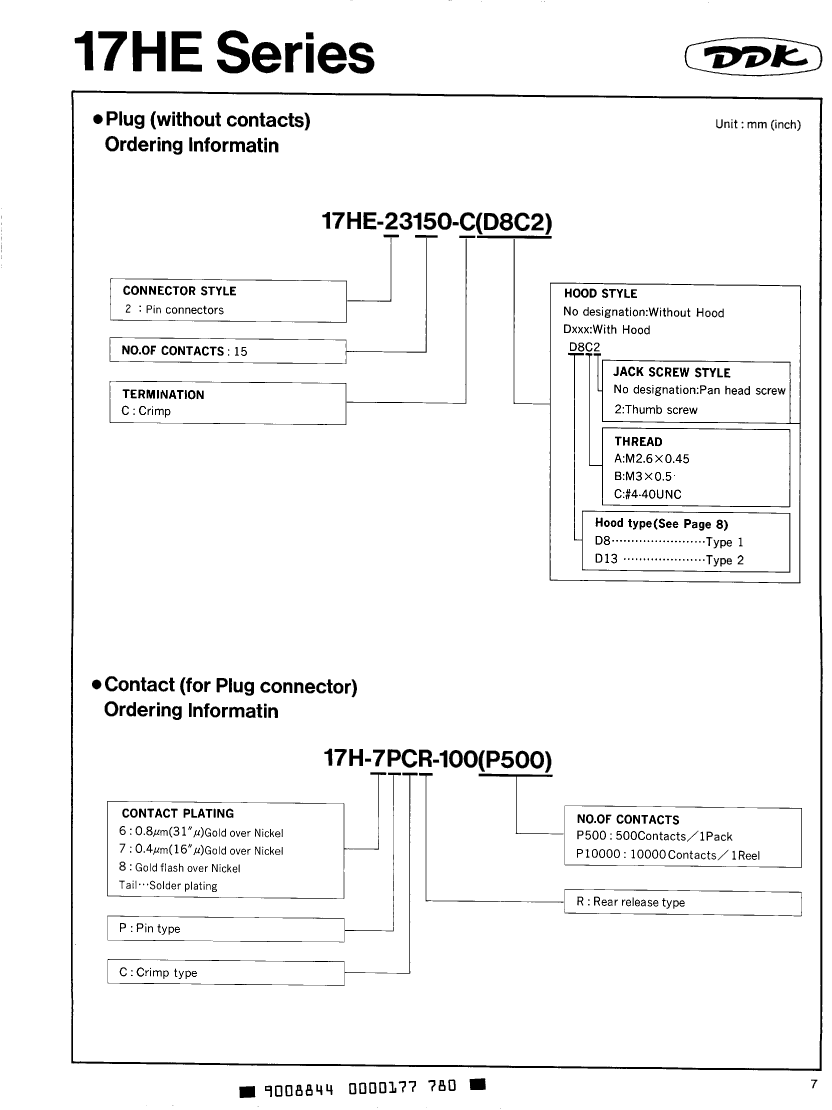

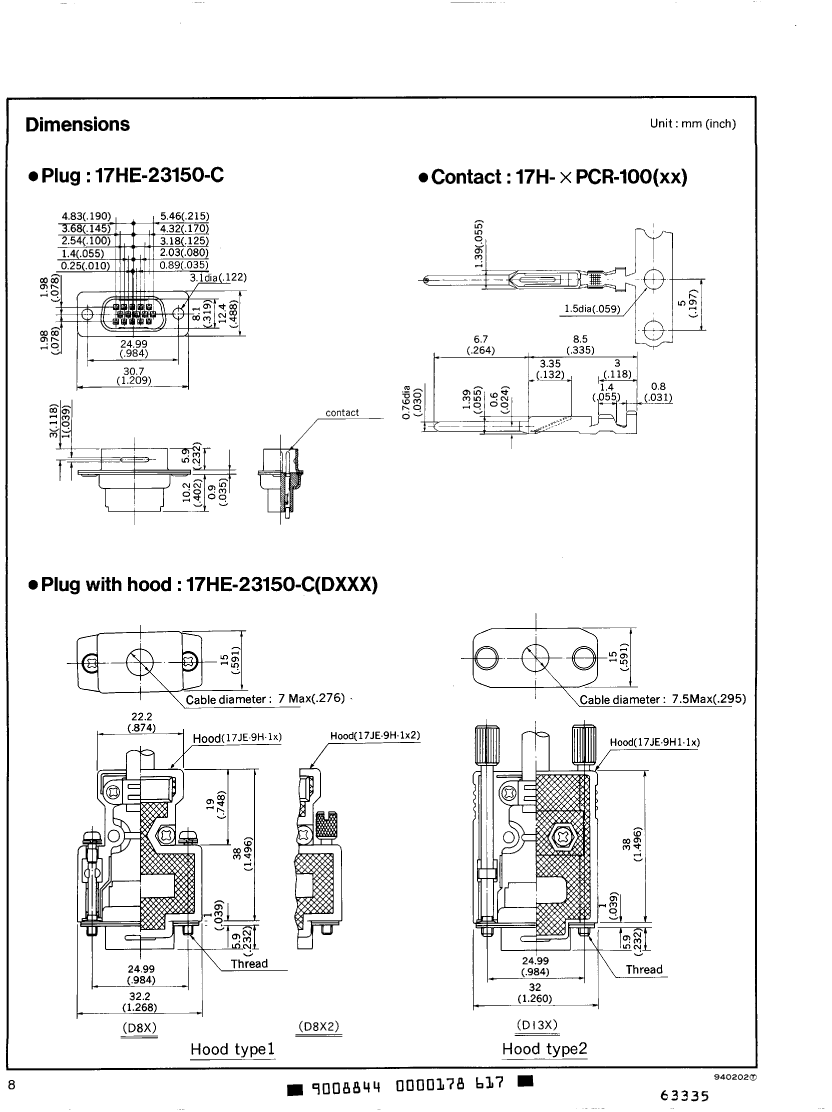

17HE-23150-C(D8A2): DescriptionD Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, M2.6, Receptacle; CategoryThe connector The connector; File Size203KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

17HE-23150-C(D8A2) Overview

D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, M2.6, Receptacle

17HE-23150-C(D8A2) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.488 inch
subject depth	0.402 inch
body length	1.209 inch
Body/casing type	RECEPTACLE
Contact point gender	MALE
contact mode	STAGGERED
Insulation resistance	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	YES
Manufacturer's serial number	17HE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	M2.6
Installation option 2	JACKSCREW
Number of rows loaded	3
Guideline	UL
reliability	MIL-C-24308
Shell surface	NICKEL
Shell material	STEEL
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

17HE-23150-C(D8A2) Related Products

	17HE-23150-C(D8A2)	17HE-23150-C(D13A2)	17HE-23150-C(D8C2)	17HE-23150-C(D8B2)	17HE-23150-C(D13C2)	17HE-23150-C(D13B2)	17H-8PCR-100(P500)	17H-8PCR-100(P10000)	17H-6PCR-100(P500)	17H-6PCR-100(P10000)
Description	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, M2.6, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, M2.6, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, #4-40, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, M3, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, #4-40, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, M3, Receptacle	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown	unknown
Manufacturer's serial number	17HE	17HE	17HE	17HE	17HE	17HE	17H	17H	17H	17H
body width	0.488 inch	0.488 inch	0.488 inch	0.488 inch	0.488 inch	0.488 inch	-	-	-	-
subject depth	0.402 inch	0.402 inch	0.402 inch	0.402 inch	0.402 inch	0.402 inch	-	-	-	-
body length	1.209 inch	1.209 inch	1.209 inch	1.209 inch	1.209 inch	1.209 inch	-	-	-	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-	-	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	-	-	-	-
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-	-	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	-	-	-
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	-	-	-	-
MIL compliance	YES	YES	YES	YES	YES	YES	-	-	-	-
Plug contact pitch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	-	-	-	-
Match contact row spacing	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	-	-	-	-
Installation option 1	M2.6	M2.6	#4-40	M3	#4-40	M3	-	-	-	-
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	-	-	-	-
Number of rows loaded	3	3	3	3	3	3	-	-	-	-
Guideline	UL	UL	UL	UL	UL	UL	-	-	-	-
reliability	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	-	-	-	-
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	-	-	-	-
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	-	-	-	-
Total number of contacts	15	15	15	15	15	15	-	-	-	-
Base Number Matches	1	1	1	1	1	1	1	1	-	-
