SAB80C53516NLBTR datasheet, PDF

SAB80C53516NLBTR: DescriptionMicrocontroller, 8-Bit, 16MHz, CMOS, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size815KB，23 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

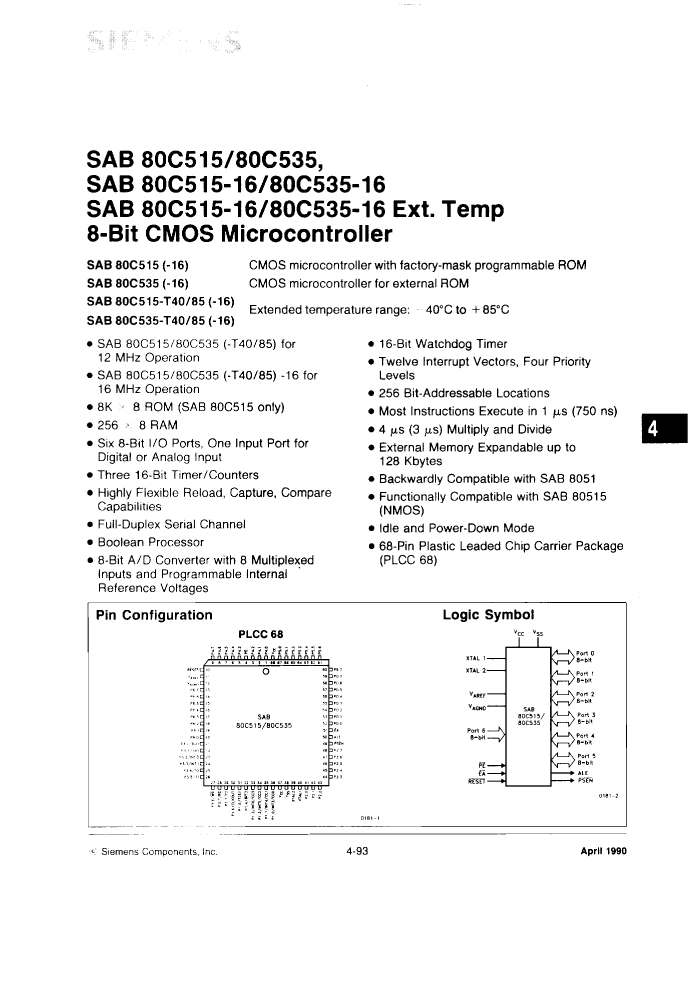

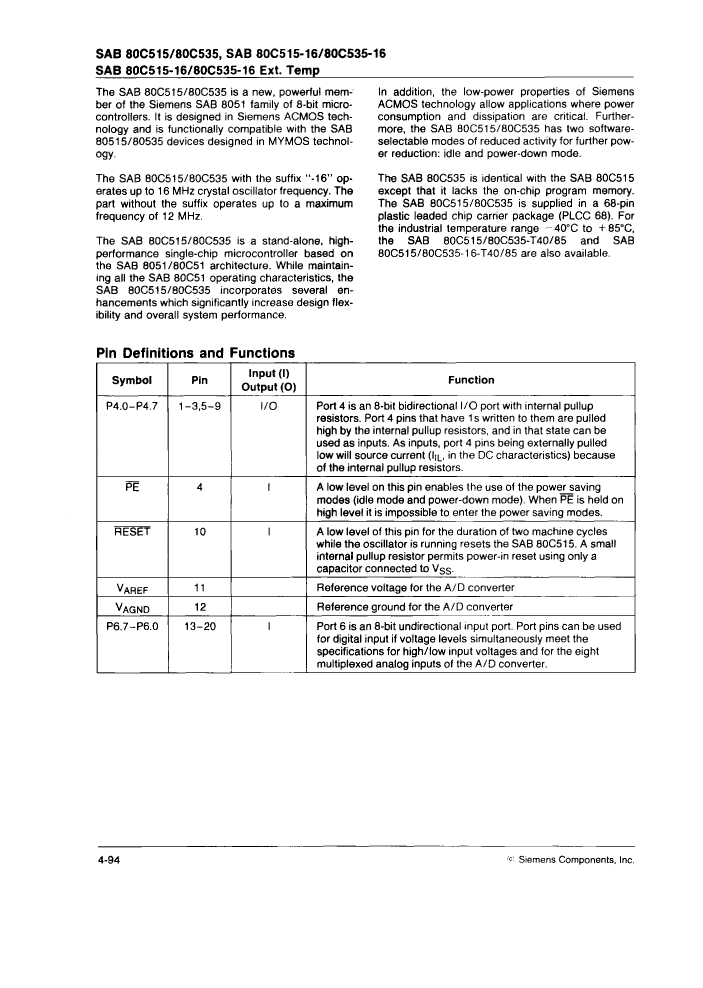

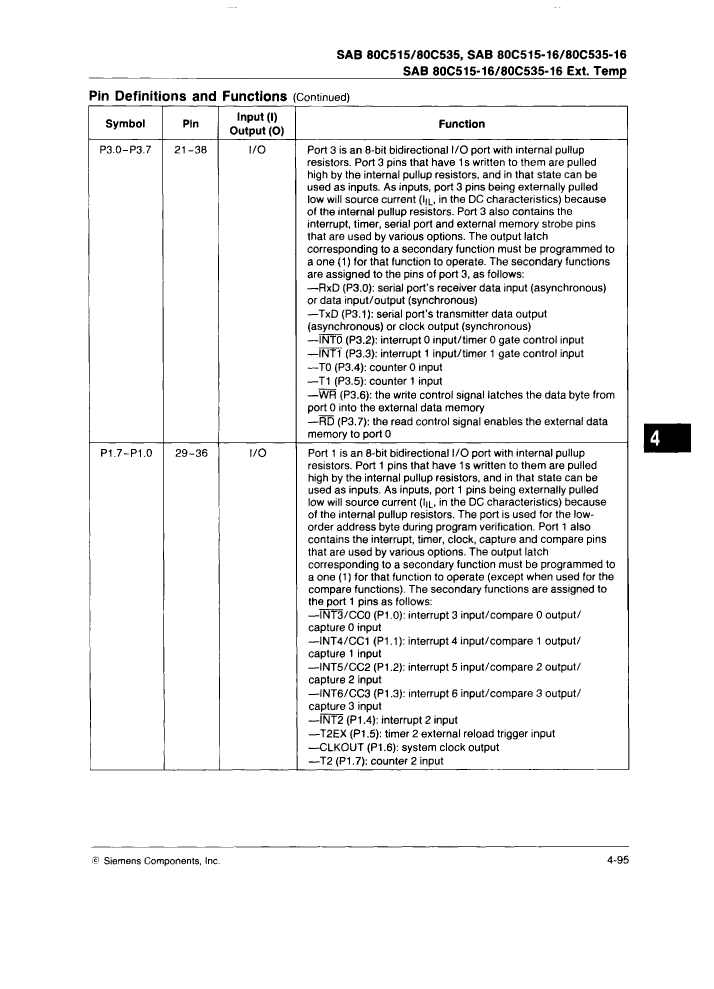

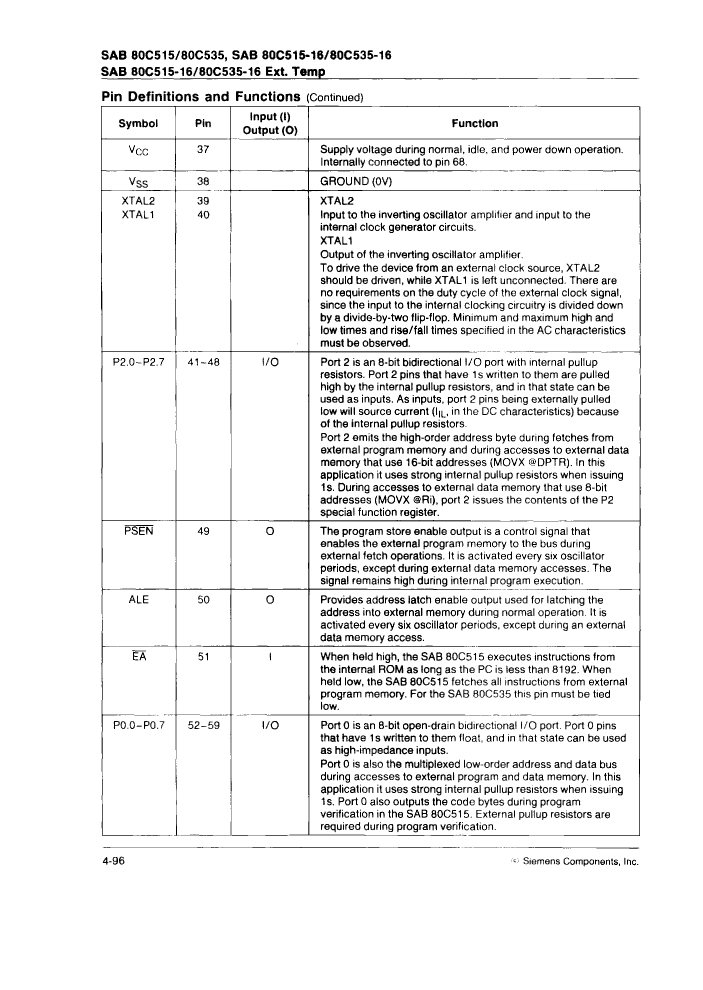

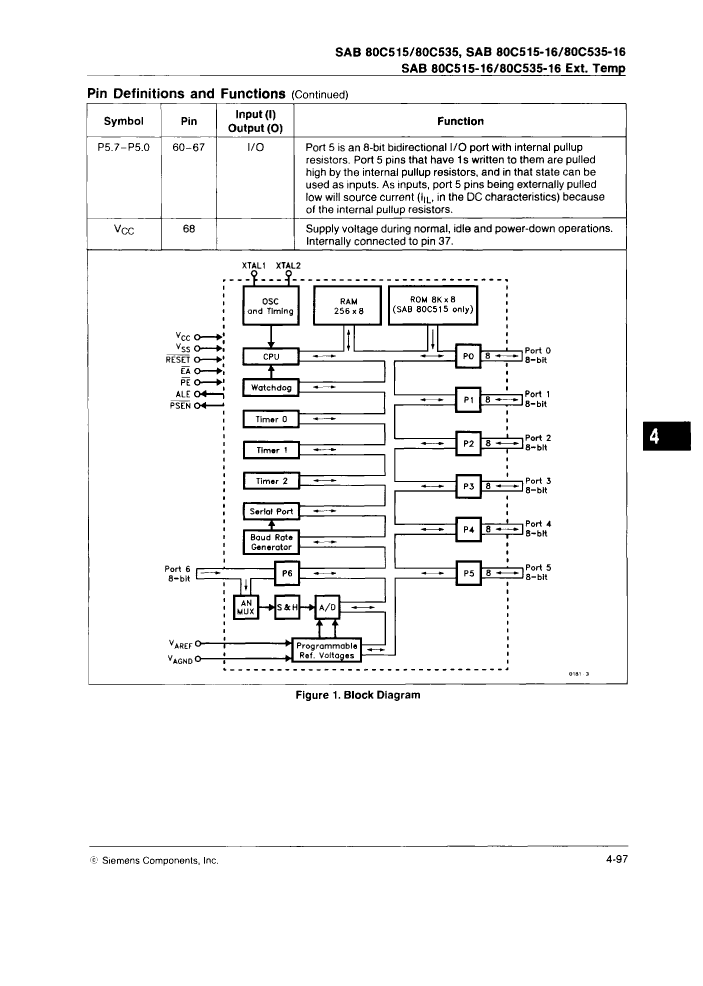

SAB80C53516NLBTR Overview

Microcontroller, 8-Bit, 16MHz, CMOS, PQCC68, PLASTIC, LCC-68

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	68
Reach Compliance Code	unknown
Has ADC	YES
Other features	BOOLEAN PROCESSOR
Address bus width	8
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J68
length	24.21 mm
Number of I/O lines	56
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	5.08 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.21 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	SAB80C53516NLBTR	SAB80C515-16-N-T40/85	SAB80C53516NDATR
Description	Microcontroller, 8-Bit, 16MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 8-Bit, 16MHz, CMOS, PQCC68, PLASTIC, LCC-68
Parts packaging code	LCC	LCC	LCC
package instruction	QCCJ,	PLASTIC, LCC-68	QCCJ,
Contacts	68	68	68
Reach Compliance Code	unknown	compliant	unknown
Has ADC	YES	YES	YES
Address bus width	8	16	8
bit size	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
JESD-30 code	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68
length	24.21 mm	24.21 mm	24.21 mm
Number of I/O lines	56	48	56
Number of terminals	68	68	68
Maximum operating temperature	70 °C	85 °C	70 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
speed	16 MHz	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD
width	24.21 mm	24.21 mm	24.21 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Other features	BOOLEAN PROCESSOR	-	BOOLEAN PROCESSOR
Base Number Matches	1	1	-
