H3005BS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> H3005BS

H3005BS: DescriptionSafety Door Switch, SPST, Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size49KB，1 Pages; ManufacturerArcolectric; Environmental Compliance

Download Datasheet Parametric View All

H3005BS Overview

Safety Door Switch, SPST, Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT

H3005BS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	18 mm
body height	19.8 mm
Body length or diameter	30.2 mm
Electrical life	50000 Cycle(s)
Manufacturer's serial number	3005
Installation features	PANEL MOUNT
seal	SPLASH PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SAFETY DOOR SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

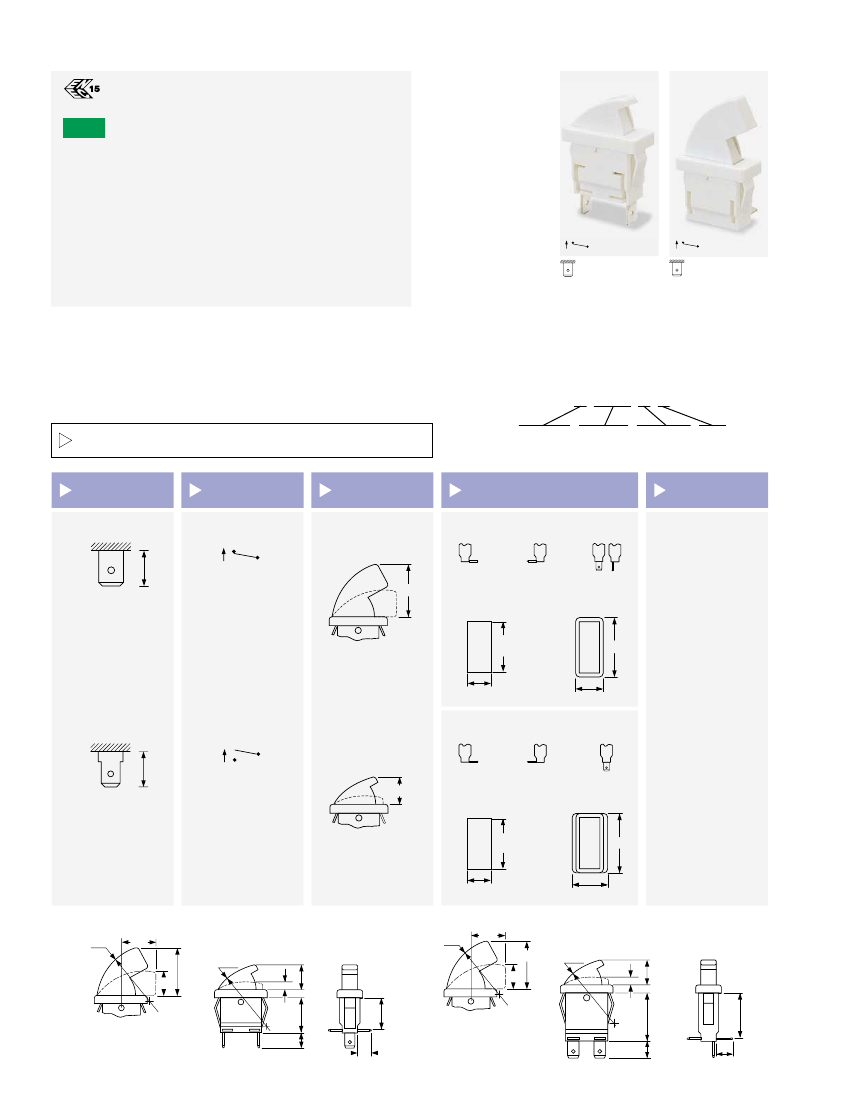

3005 Refrigerator Door Switches

Splashproof

3005 25W 25T85 5E4 (50,000 Operations) 250Vac

3006 65W 25T85 5E4 (50,000 Operations) 250Vac

Door switches

Momentary on and

momentary off

switching

Splashproof

RoHS

RoHS compliant

These products require 3mm minimum actuator stroke to ensure

switch action and rating above.

µ contact gap.

Technical data on pages 4 & 5.

Choice of terminal

orientation

Choice of actuators

C3005CB

C3005BL

C 3005 C B

ORDER FORMAT

TERMINAL

3005

FUNCTION

9.1

TERMINAL

CODE

ACTUATOR

BODY

3005 or 3006

FUNCTION

CODE

ACTUATOR BODY

CODE

OPTIONS

Finish

3005

3006

Gloss finish only

Color

White is standard

Call factory for

custom colors

A full range is available for

large orders

Terminal direction (viewed from hinge end)

6.3 x 0.8

ON - OFF

(momentary OFF)

1mm max travel

to OFF position

26.0

Panel cut-out

Bezel

25.4

25.5

30.2

3006

12.1/12.2

14.0

3005 only

9.1

4.8 x 0.8

ON - OFF

(momentary ON)

3mm min travel

to ON position

13.0

Terminal direction (viewed from hinge end)

Panel cut-out

Bezel

25.4

25.5

30.2

12.1/12.2

18.0

Dimensions

(mm) (C terminals shown)

3005

R31.0

20.3

26.0

13.8

R31.0

4.2

13.0

5.0

19.8

9.1max

17.8

3006

R31.0

20.3

26.0

13.8

R31.0

4.2

13.0

5.0

27.0

9.1max

25.0

Panel thickness 1.0 - 2.5mm

9.1

max

Panel thickness 1.0 - 2.5mm

9.1max
