800-2700 MHz Broadband Driver Amplifier

Preview

Download Datasheet

View All

800-2700 MHz

Broadband Driver Amplifier

December 2007 - Rev 29-Dec-07

CMM2306-AJ

Features

+17.5 dBm Output Power

Low Current: 70 mA, Typ.

800-2700 MHz Operation

Single +3V to +6V Supply

Input and Output Matched to 50 , DC Blocked

Low-Cost SOIC-8 Plastic Package

Functional Block Diagram

GND

RF IN

GND

RF OUT

GND

Applications

The Mimix CMM2306-AJ is a premium performance, pin-

for-pin compatible second source for the TriQuint ® 9132

and the Mini-Circuits® VNA. Providing higher gain and lower

noise figure than either of the existing standard amplifiers at

25% less drain current, the CMM2306-AJ is an excellent choice

for power sensitive applications, while delivering more design

margin than either of the existing alternatives. This device

will drop into existing sockets and offers the same single sup-

ply, broadband, 50 matched and DC blocked input and out-

put features and performance, that the industry has come to

expect, with much higher efficiency and lower current.

Packaged in a low-cost surface mount SOIC-8 package, the

CMM2306-AJ offers superior performance to existing

alternatives at a competitive price.

Description

Power Amplifier Drivers

Diode-Ring Mixer Buffers

PCS Medium Power Amplifiers

Medium Power WLANs

Base Station Receivers

Absolute Maximum Ratings

Drain Voltage (+Vd)

Drain Current (Id)

RF Input Power

Power Dissipation

Thermal Resistance

Storage Temperature

Operating Temperature

Channel Temperature

Soldering Temperature

+7 V

150 mA

15 dBm

1.0 W

55 ºC/W

-65 ºC to +150 ºC

-40 ºC to +80 ºC

175 ºC

260 ºC for 5 Sec

Recommended Operating Conditions

Parameter

Typ

Units

Parameter

Typ

Units

Drain Voltage (+Vd )

3.0 to 6.0

Volts

Operating Temperature (PC Board)

-40 to +70

°C

Electrical Characteristics

Parameter

The following specifications are guaranteed at room temperature with drain voltage (+Vd ) = 5.0 V ±5% at 2.5 GHz.

Condition

Min

Typ

Max

Units

Frequency Range

Small Signal Gain

N oi se F i gure

Power O utput @ 1 dB Compression

Output 3rd Order Intercept

Input Return Loss

Output Return Loss

DC Supply Current

Supply Voltage

TriQuint and Mini-Circuits are trademarks of their respective corporations.

800

18.5

15. 5

2700

3. 5

MHz

dB m

dBm

Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099

Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com

Page 1 of 5

Characteristic Data and Specifications are subject to change without notice.

Mimix Broadband, Inc.

Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept

their obligation to be compliant with U.S. Export Laws.

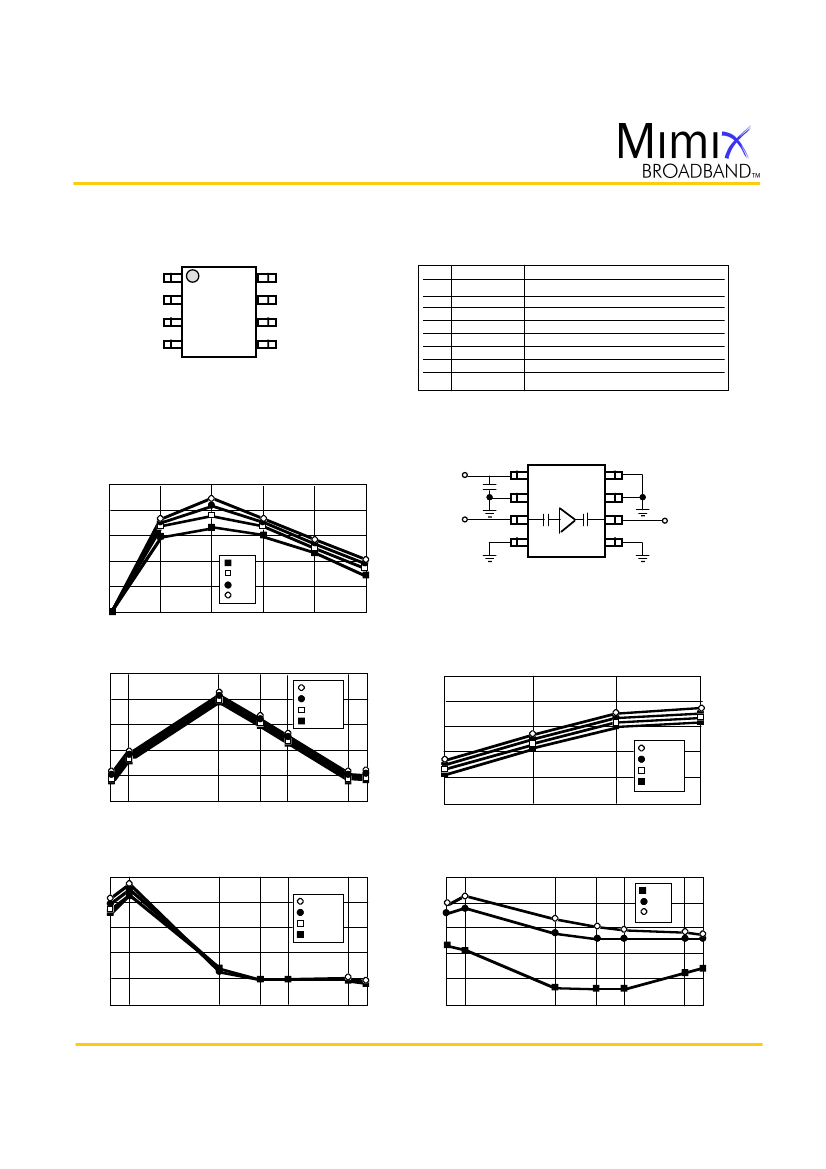

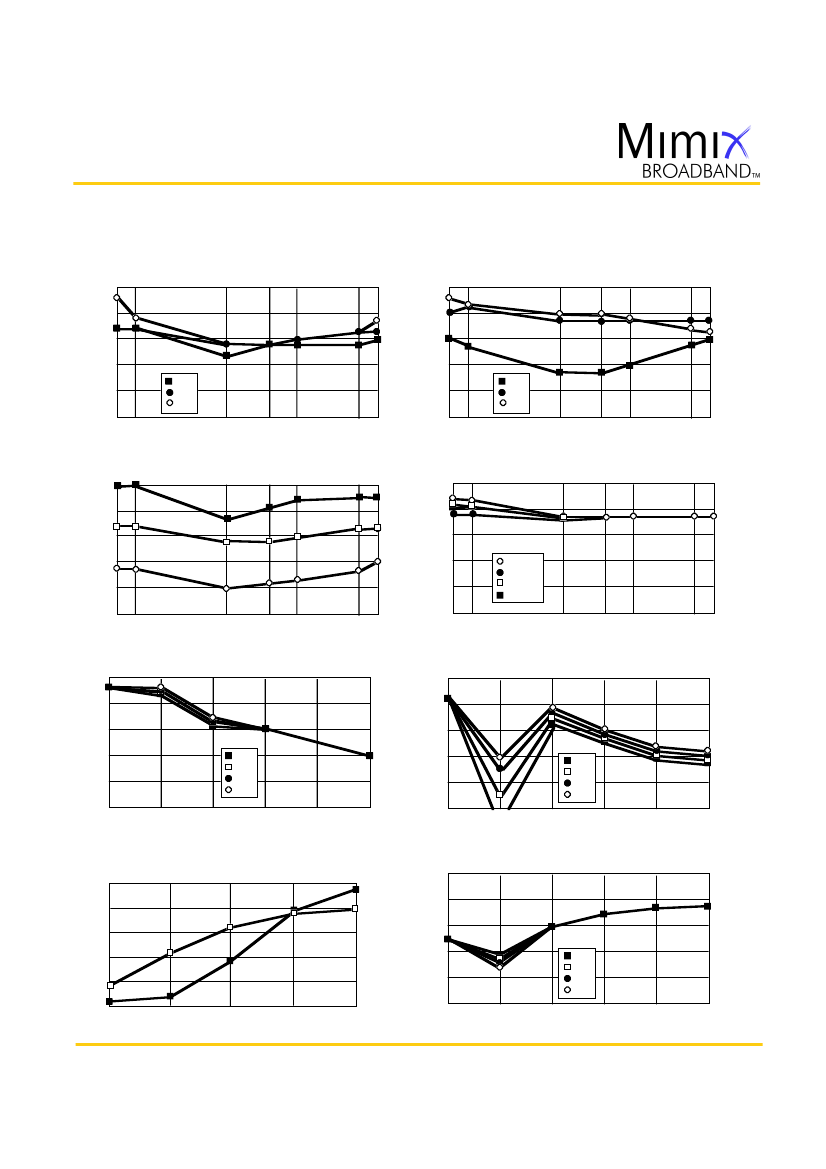

800-2700 MHz

Broadband Driver Amplifier

December 2007 - Rev 29-Dec-07

CMM2306-AJ

Handling and Assembly Information

CAUTION!

- Mimix Broadband MMIC Products contain gallium arsenide (GaAs) which can be hazardous to the human

body and the environment. For safety, observe the following procedures:

Do not ingest.

Do not alter the form of this product into a gas, powder, or liquid through burning, crushing, or chemical

processing as these by-products are dangerous to the human body if inhaled, ingested, or swallowed.

Observe government laws and company regulations when discarding this product. This product must be

discarded in accordance with methods specified by applicable hazardous waste procedures.

Life Support Policy

- Mimix Broadband's products are not authorized for use as critical components in life support

devices or systems without the express written approval of the President and General Counsel of Mimix Broadband. As

used herein: (1) Life support devices or systems are devices or systems which, (a) are intended for surgical implant into

the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions

for use provided in the labeling, can be reasonably expected to result in a significant injury to the user. (2) A critical

component is any component of a life support device or system whose failure to perform can be reasonably expected

to cause the failure of the life support device or system, or to affect its safety or effectiveness.

Package Attachment

- This packaged product from Mimix Broadband is provided as a rugged surface mount package

compatible with high volume solder installation. Care should be taken not to apply heavy pressure to the top or base

material to avoid package damage. Vacuum tools or other suitable pick and place equipment may be used to pick and

place this part. Care should be taken to ensure that there are no voids or gaps in the solder connection so that good RF,

DC and ground connections are maintained. Voids or gaps can eventually lead not only to RF performance degradation,

but reduced reliability and life of the product due to thermal stress.

Mimix Lead-Free RoHS Compliant Program -

Mimix has an active program in place to meet customer and governmental

requirements for eliminating lead (Pb) and other environmentally hazardous materials from our products. All Mimix

RoHS compliant components are form, fit and functional replacements for their non-RoHS equivalents. Lead plating of

our RoHS compliant parts is 100% matte tin (Sn) over copper alloy and is backwards compatible with current standard

SnPb low-temperature reflow processes as well as higher temperature (260°C reflow) “Pb Free” processes.

Ordering Information

Part Number for Ordering

CMM2306-AJ-0G00

CMM2306-AJ-0G0T

PB-CMM2306-AJ-0000

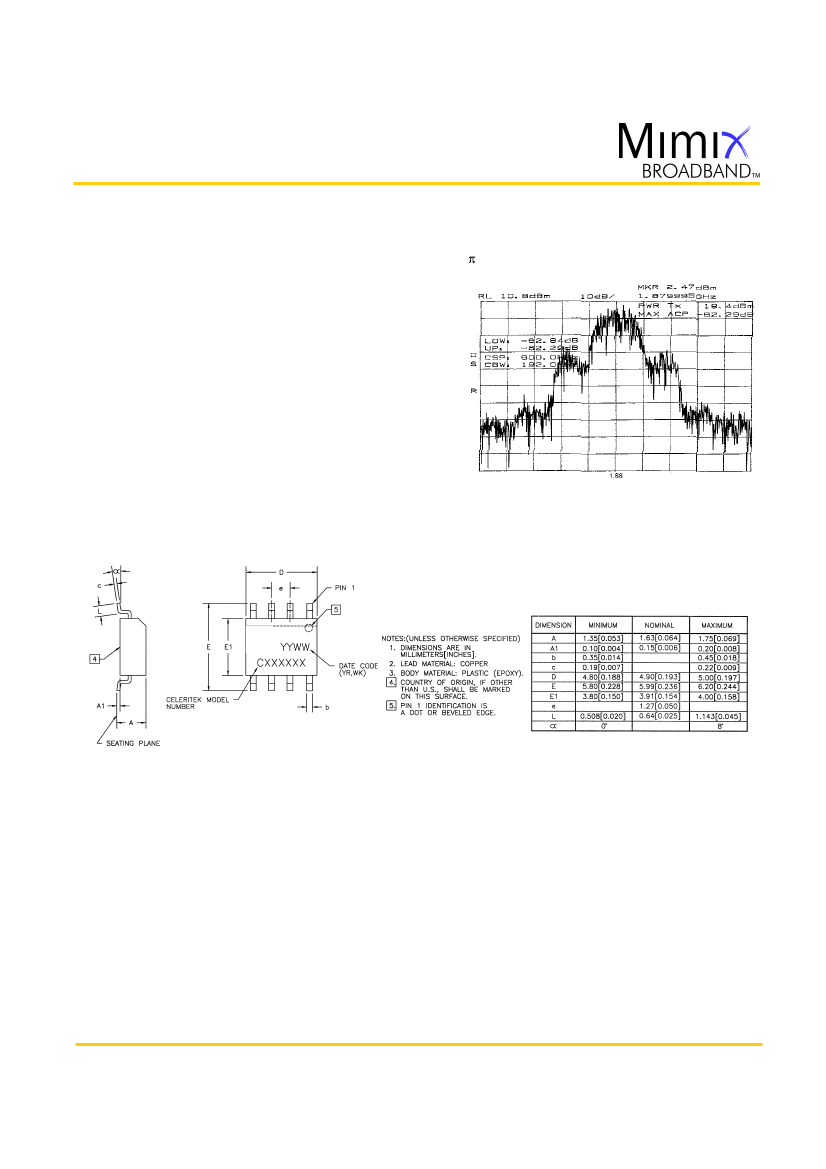

The CMM2306-AJ is available in a surface mount SOIC-8 plastic package.

Package

Matte Tin finished RoHS compliant SOIC-8 package in bulk quantity

Matte Tin finished RoHS compliant SOIC-8 package in tape and reel

Evaluation Board

Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099

Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com

Page 5 of 5

Characteristic Data and Specifications are subject to change without notice.

Mimix Broadband, Inc.

Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept

their obligation to be compliant with U.S. Export Laws.
