A20-004-0231C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A20-004-0231C

A20-004-0231C: DescriptionCircular Connector, 4 Contact(s), Copper Alloy, Female, Socket; CategoryThe connector The connector; File Size77KB，2 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

A20-004-0231C Overview

Circular Connector, 4 Contact(s), Copper Alloy, Female, Socket

A20-004-0231C Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	IRM-A20
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COPPER ALLOY
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

Mini Circular Connectors

CRM-A18, IRM-A19, A20 Series

Connectors

FEATURES

A "one-touch" lock device ensures secure fitting.

CRM-A18 series is compatible with IBC-P60B

and IBC-P70 series.

CRM-A18

IRM-A19

IRM-A20

HOW TO ORDER

1. CRM-A18 Series (PCB mount type) 2. IRM-A19 Series (Plug cable Ass'y) 3. IRM-A20 Series (Socket cable Ass'y)

A18-

A19-

A20-

1 Series No. (A18)

2 No. of contacts

(004 : 4pins, 005 : 5pins, 006 :

6pins, 008 : 8pins)

3 Product Specifications

(0263C : 4pins, 0263B : 5pins,

0263D : 6pins, 0263A : 8pins)

1 Series No. (A19)

1 Series No. (A20)

2 No. of contacts

(004 : 4pins, 006 : 6pins, 008 : 8pins)

3 Product Specifications

(0230C : 4pins, 0230D : 6pins,

(0231C : 4pins, 0231D : 6pins,

0230A : 8pins)

0231A : 8pins)

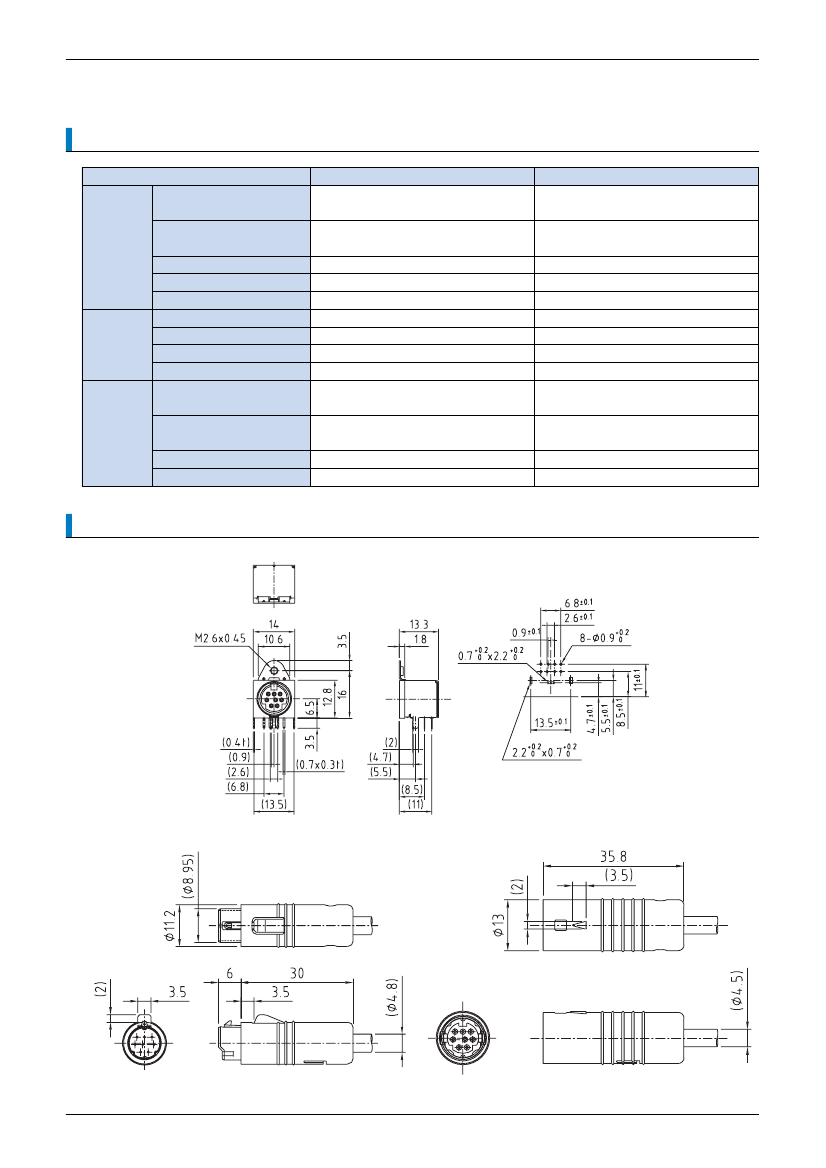

SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

Rated Voltage

Rated Current

Withstanding Voltage

Insulation Resistance

Contact Resistance

MECHANICAL CHARACTERISTICS

Life (Matching Cycle)

Total Insertion Force

Total Withdrawal Force

Using Temperature Range

1,000 times

49N (5kgf ) max.

2~49N (0.2~5kgf )

-20~+80˚C

30V DC

DC 1A

250V AC 1minute

50MΩ min.

30mΩ max.

A20-004-0231C Related Products

	A20-004-0231C	A18-004-0263C	A18-005-0263B	A18-006-0263D	A18-008-0263A	A19-004-0230C	A19-006-0230D	A19-008-0230A	A20-006-0231D	A20-008-0231A
Description	Circular Connector, 4 Contact(s), Copper Alloy, Female, Socket	Circular Connector, 4 Contact(s), Copper Alloy, Female, Solder Terminal, Socket	Circular Connector, 5 Contact(s), Copper Alloy, Female, Solder Terminal, Socket	Circular Connector, 6 Contact(s), Copper Alloy, Female, Solder Terminal, Socket	Circular Connector, 8 Contact(s), Copper Alloy, Female, Solder Terminal, Socket	Circular Connector, 4 Contact(s), Copper Alloy, Male, Plug	Circular Connector, 6 Contact(s), Copper Alloy, Male, Plug	Circular Connector, 8 Contact(s), Copper Alloy, Male, Plug	Circular Connector, 6 Contact(s), Copper Alloy, Female, Socket	Circular Connector, 8 Contact(s), Copper Alloy, Female, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	PLUG	PLUG	PLUG	SOCKET	SOCKET
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE	FEMALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	IRM-A20	CRM-A18	CRM-A18	CRM-A18	CRM-A18	IRM-A19	IRM-A19	IRM-A19	IRM-A20	IRM-A20
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	BOARD	BOARD	BOARD	BOARD	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Total number of contacts	4	4	5	6	8	4	6	8	6	8
Base Number Matches	1	1	1	1	1	1	1	1	1	1
