TL-6100-C-F300-Q-P

Description
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 50VDC, 3.43N, Solder Terminal, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size279KB,2 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Environmental Compliance
Download Datasheet Parametric View All

TL-6100-C-F300-Q-P Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 50VDC, 3.43N, Solder Terminal, Through Hole-straight

TL-6100-C-F300-Q-P Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
body width7.2 mm
Body length or diameter7.2 mm
Circuit configuration1X1
Maximum contact current (DC)0.05 A
Contact (DC) maximum rated R load.05A@50VDC
Maximum contact voltage (DC)50 V
Electrical life50000 Cycle(s)
JESD-609 codee4
Manufacturer's serial numberTL6100
Installation featuresTHROUGH HOLE-STRAIGHT
Number of switches1
Maximum operating force3.43 N
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
surface mountNO
Switch actionMOMENTARY-TACTILE
switch functionSPST
Switch typeKEYPAD SWITCH
Terminal surfaceSilver (Ag)
Termination typeSOLDER
Base Number Matches1

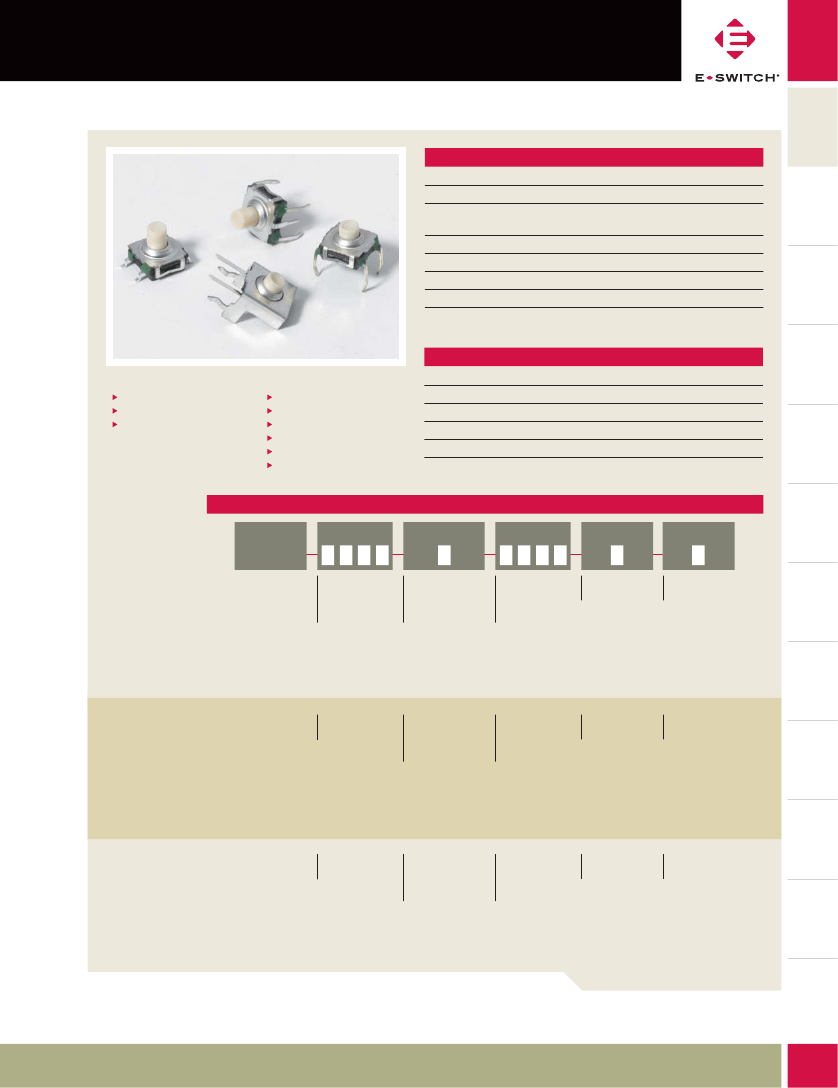

SERIES TL 6100 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
50,000 cycles
50mΩ max., typical @ 5 VDC
100mA for both silver and gold plated contacts
10000MΩ min.
300 VAC
130± 50 gf, 160± 50 gf, 300± 50 gf, 500± 100 gf
PUSHBUTTON
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
Specifications subject to change without notice.
Operating Temperature: -40°C to 85°C
MATERIALS
FEATURES & BENEFITS
Multiple gram force options
Multiple actuator lengths
Process Sealed
APPLICATIONS/MARKETS
Telecommunications
Consumer Electronics
Audio/visual
Medical
Testing/instrumentation
Computer/servers/peripherals
Housing:
Frame:
Actuator:
Moving Contact:
Terminals:
Nylon
Copper alloy, tin plated
Nylon
Phoz. Bronze, plated
Copper alloy, plated
SERIES
MODEL NO.
ACTUATOR
("L" Dimension)
OPERATING
FORCE
CONTACT
MATERIAL
TERMINATION
TL
TL
6100
6105 =
Earth Ground
A
B
C
D
= 4.70mm
= 5.20mm
= 6.90mm
= 10.0mm
F130
F160
F300
F500
Q = Silver
R = Gold
P = PC Pin
SNAP-ACTION
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
Q = Silver
R = Gold
G = Gullwing
DIP
SWITCHES
6110
Right Angle
A
B
C
D
=
=
=
=
3.50mm
4.00mm
5.70mm
8.70mm
F130
F160
F300
F500
Q = Silver
R = Gold
P = PC Pin
A
B
C
D
= 4.70mm
= 5.20mm
= 6.90mm
= 10.00mm
F130
F160
F300
F500
Example Ordering Number
TL
_
6100
_
A_ F130
_
Q
_
P
TL
Example Ordering Number
TL
_
6110
_
C_ F300_ R_ P
TL
6120
Surface Mount
Example Ordering Number
TL
_
6120
_
B_ F160_ Q_ G
www.e-switch.com
info
@
e-switch.com
SLIDE
SWITCHES
HOW TO ORDER
ROCKER
SWITCHES
TOGGLE
SWITCHES
NAVIGATION
SWITCHES
Contact Rating:
50mA@50 VDC
TACT
SWITCHES

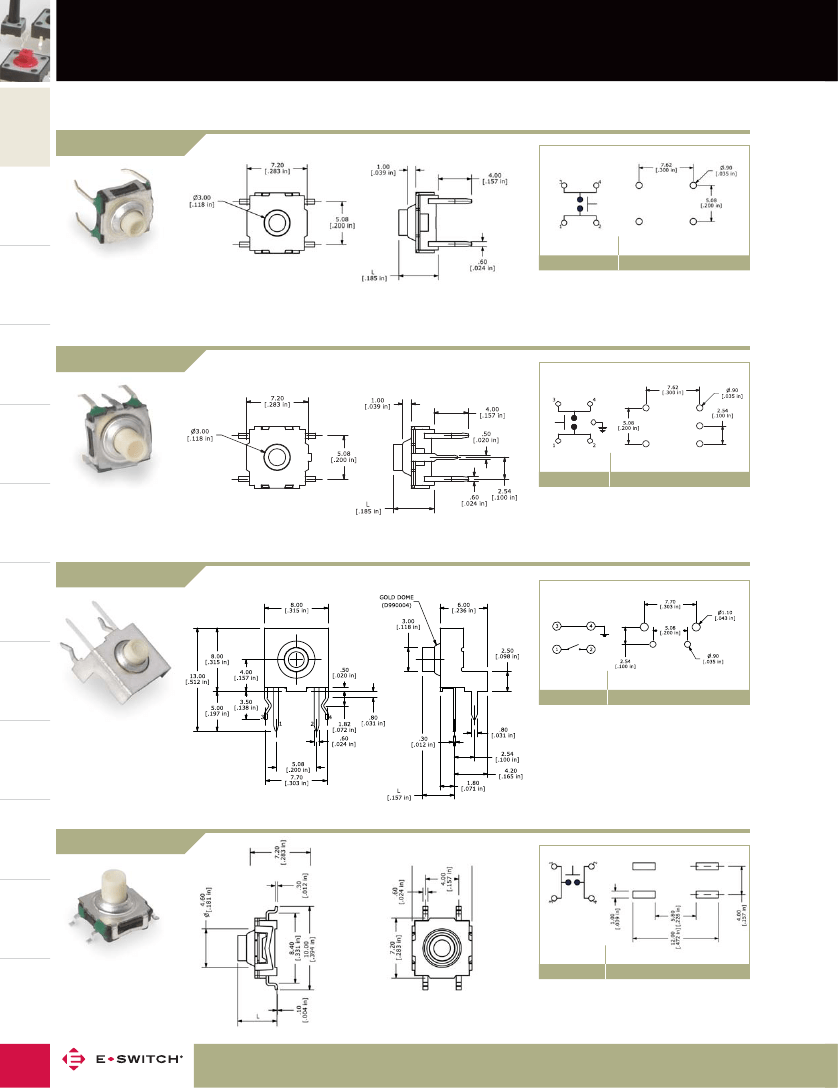

TACT SWITCHES - SEALED THRU-HOLE
