TECHNICAL DATA SHEET
TNC 50
Ω

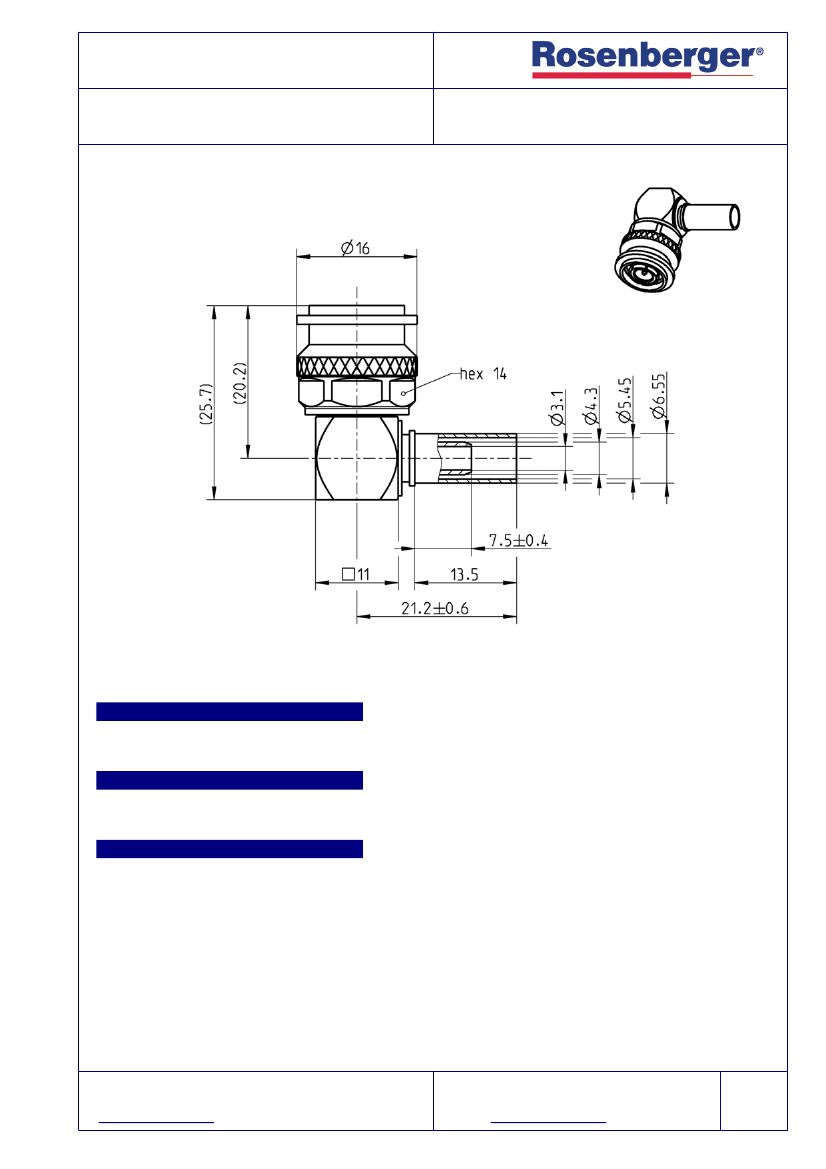

RIGHT ANGLE PLUG
56S209-306N4
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
Documents
Assembly instruction
51 M
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Crimping ferrule
Material
Plating
Brass
Gold, min. 0.8 µm, over chemical nickel
Brass
White bronze(e.g. Optalloy®)
Brass
Flash white bronze over silver(e.g. Optargen®)
PTFE
NeopreneCR 50C6
Copper
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
TNC 50
Ω
RIGHT ANGLE PLUG
56S209-306N4
50
Ω
DC to 10 GHz
≥
30 dB, DC to 2 GHz
≥
20 dB, 2 to 4 GHz
≤
0.05 dB, DC to 4 GHz
≥
5 x10
3
MΩ
≤
1.5 mΩ
≤
1 mΩ
1500 V rms
500 V rms
≤
80 W @ 2 GHz
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
- Limitations are possible due to the used cable type –
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 500
≥
15 N
max. 1.7 Nm
0.46 Nm to 0.69 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-108
Suitable cables
RG 141 /U, RG 58 C/U
Packing
Standard
Weight
100 pcs in bag
22.2 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
09/03/05
Approved
J. Krautenbacher
Date
05/10/06
Rev.
b00
Engineering change number
06-0478
Name
S. Huber-Siegl
Date
05/10/06
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
