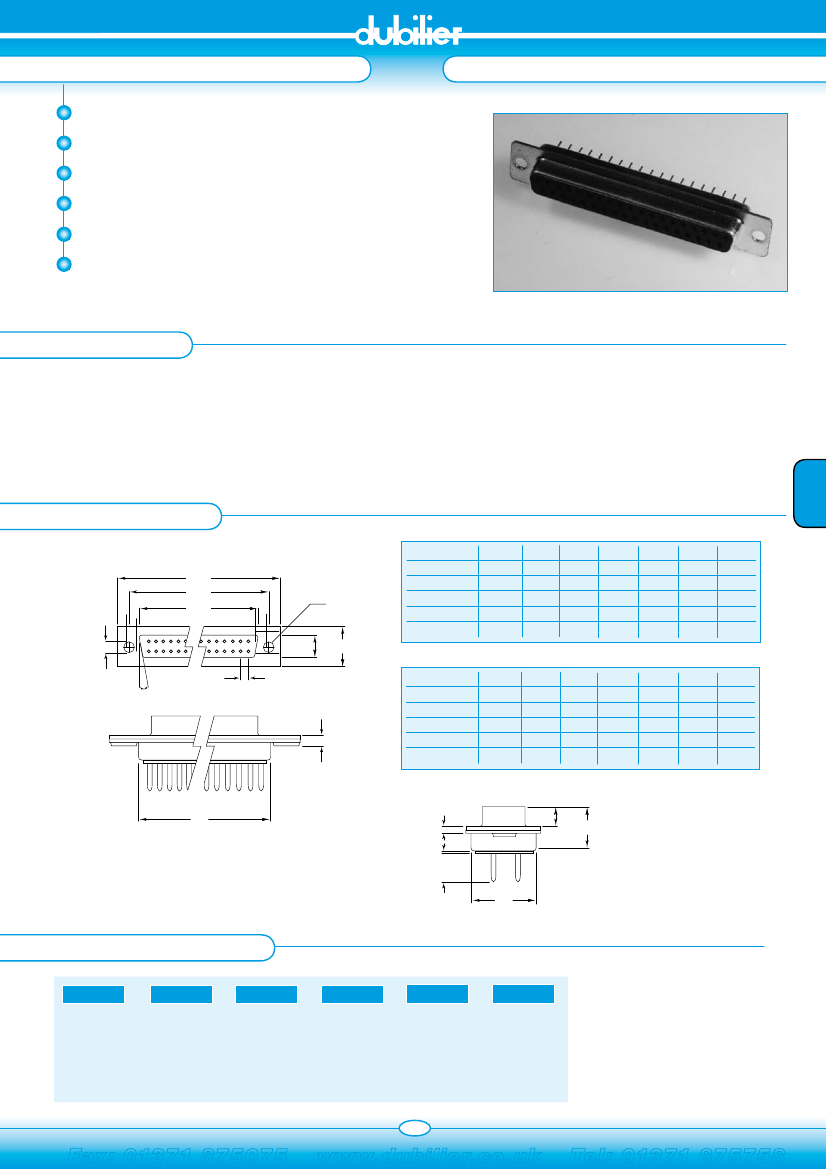

D TYPE CONNECTORS LOW COST

9, 15, 25, 37 or 50 way

Stamped & Formed Contact

Selective Gold Plated Contacts

Tin Plated Metal Housing

Current Ratings - 5Amps

Low Cost

D CONNECTORS - PCB SOLDER PIN STRAIGHT

SPECIFICATION

Material:

Insulator:

Pin contacts:

Shell:

PBT +30% Glass Fibre

UL94V-0

Phosphor Bronze

Gold Plated

Steel, SPCC

Nickel and Tin Plated

Electrical Data:

Rated Voltage:

Rated Current:

Withstand Voltage:

Insulation Resistance:

Contact Resistance:

Temperature:

350V AC

5A

500V AC(rms)

Over 1000 MΩ

5 MΩ AT 1A

-40°C to 100°C

SECTION 11

OUTLINE DRAWING

C

CB

BA

A

10°

2.84

10°

C

B2.77

A

2.77

A

B

25.00

33.30

47.00

63.50

61.10

C

30.80

39.10

53.00

69.30

66.90

D

19.30

27.50

41.30

57.70

55.30

E

8.10

11.10

F

12.50

15.40

G

10.70

13.60

2-ø3.1

E F

2.84

9 WAY

15 WAY

25 WAY

37 WAY

50 WAY

16.90

25.30

39.00

55.10

52.80

Dimension - mm (Male)

2-ø3.1

9 WAY

15 WAY

E F

25 WAY

37

0.60

WAY

1.30

0.60

50 WAY

2.77 1.30

1.00

A

16.30

24.70

38.40

54.80

52.40

B

C

D

19.30

27.50

41.30

57.70

55.30

E

7.90

10.80

F

12.50

15.40

G

10.70

13.60

D

1.00

Dimension - mm (Female)

5.00

G

5.00

0.60 G

1.30

1.00

5.00

6.00

25.00 30.80

33.30 39.10

47.00 53.00

63.50 69.30

6.00 11.00

61.10 66.90

11.00

6.00 11.00

D

G

ORDERING INFORMATION

DBC

Dubilier

Connectors

SD

Series

SD = Stamped &

Formed Pin D

M

Contact Type

M = Male(plug)

F = Female(socket)

SS

Contact Style

SS = Solder Straight

09

Nº of Ways

09 = 9 ways

15 = 15 ways

25 = 25 ways

37 = 37 ways

50 = 50 ways

S

Contact plating

S = Selective Gold

Plating

253

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
