CAT28F150EA-12T datasheet, PDF

Datasheet> All Categories > storage> storage> CAT28F150EA-12T

CAT28F150EA-12T: DescriptionFlash, 192KX8, 120ns, PDSO44; Categorystorage storage; File Size1MB，16 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT28F150EA-12T Overview

Flash, 192KX8, 120ns, PDSO44

CAT28F150EA-12T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP44,.63
Reach Compliance Code	unknown
Maximum access time	120 ns
startup block	TOP
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
memory density	1572864 bit
Memory IC Type	FLASH
memory width	8
Number of departments/size	1,2,1,1
Number of terminals	44
word count	196608 words
character code	192000
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
organize	192KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP44,.63
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Department size	16K,8K,64K,96K
Maximum standby current	0.0001 A
Maximum slew rate	0.055 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
switch bit	NO
type	NOR TYPE
Base Number Matches	1

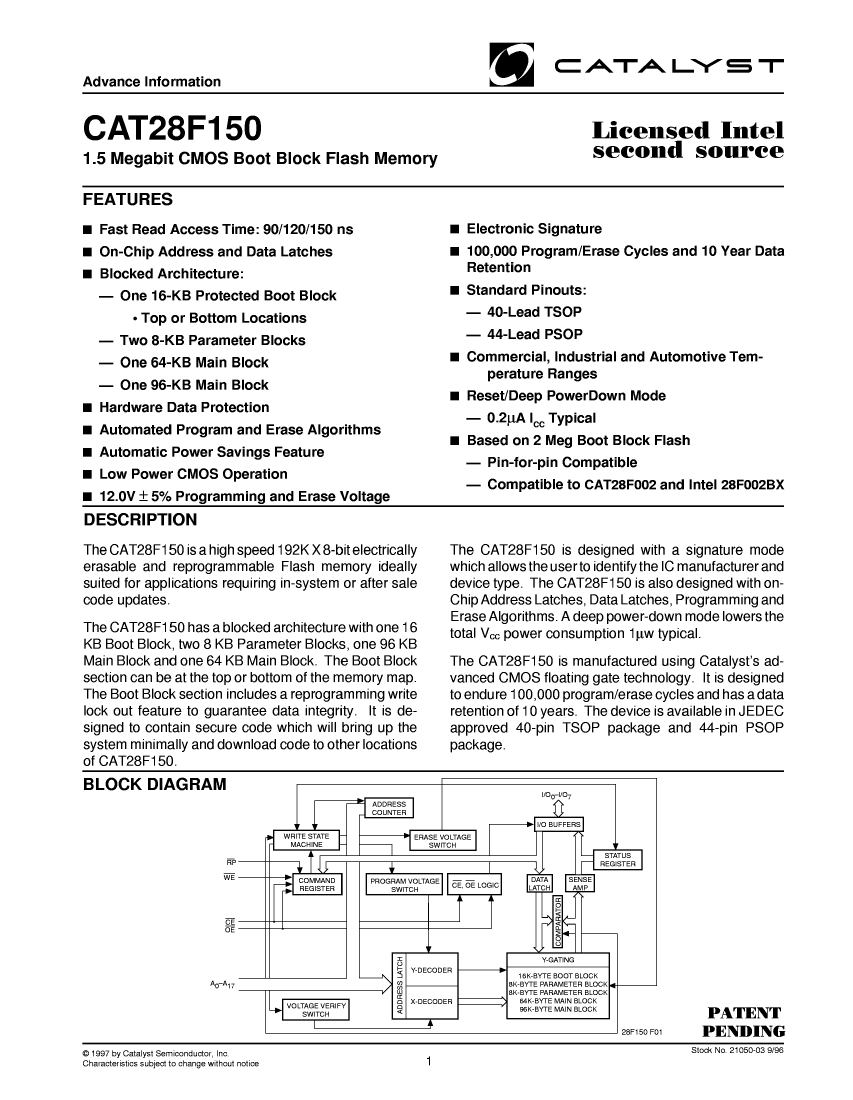

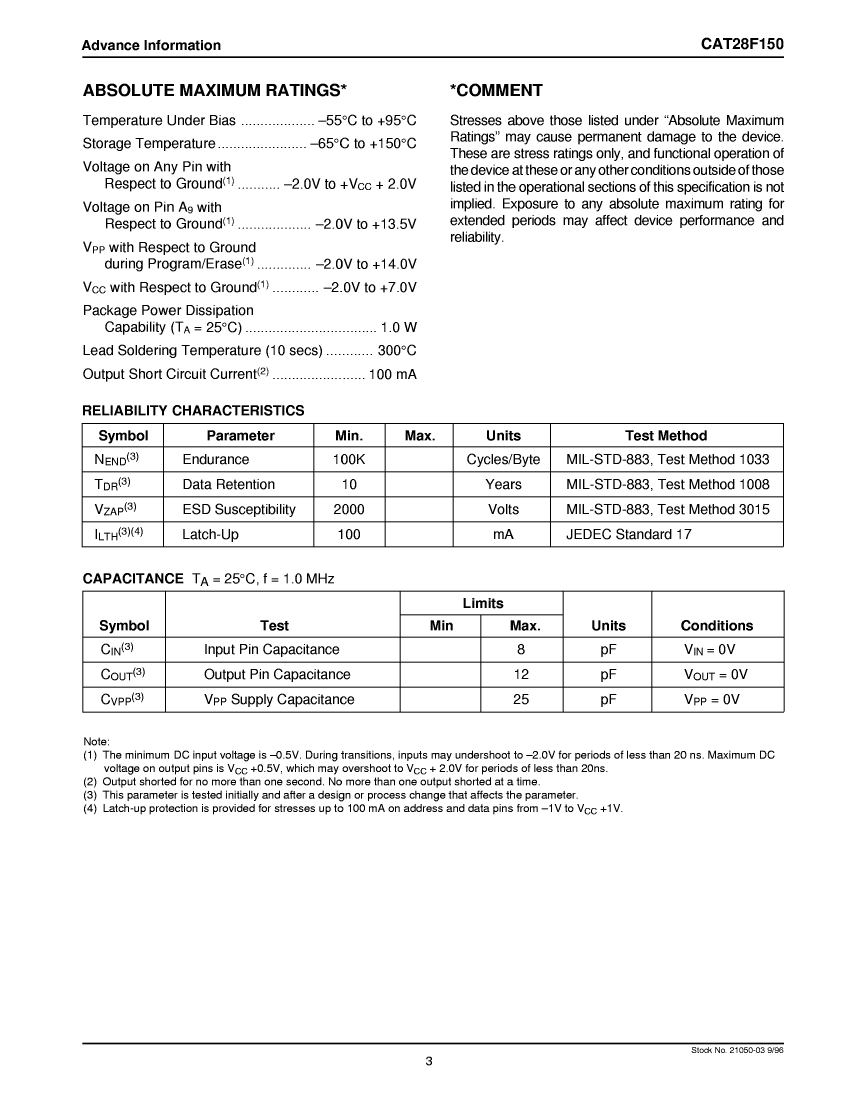

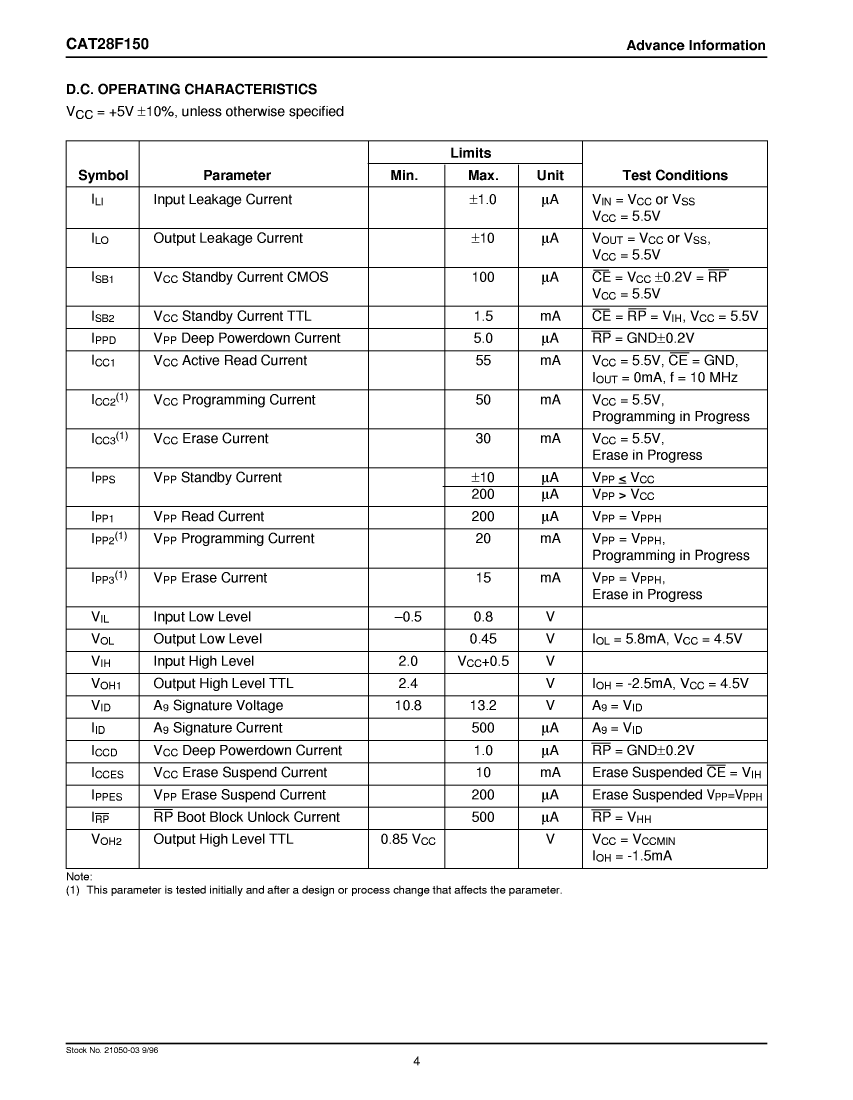

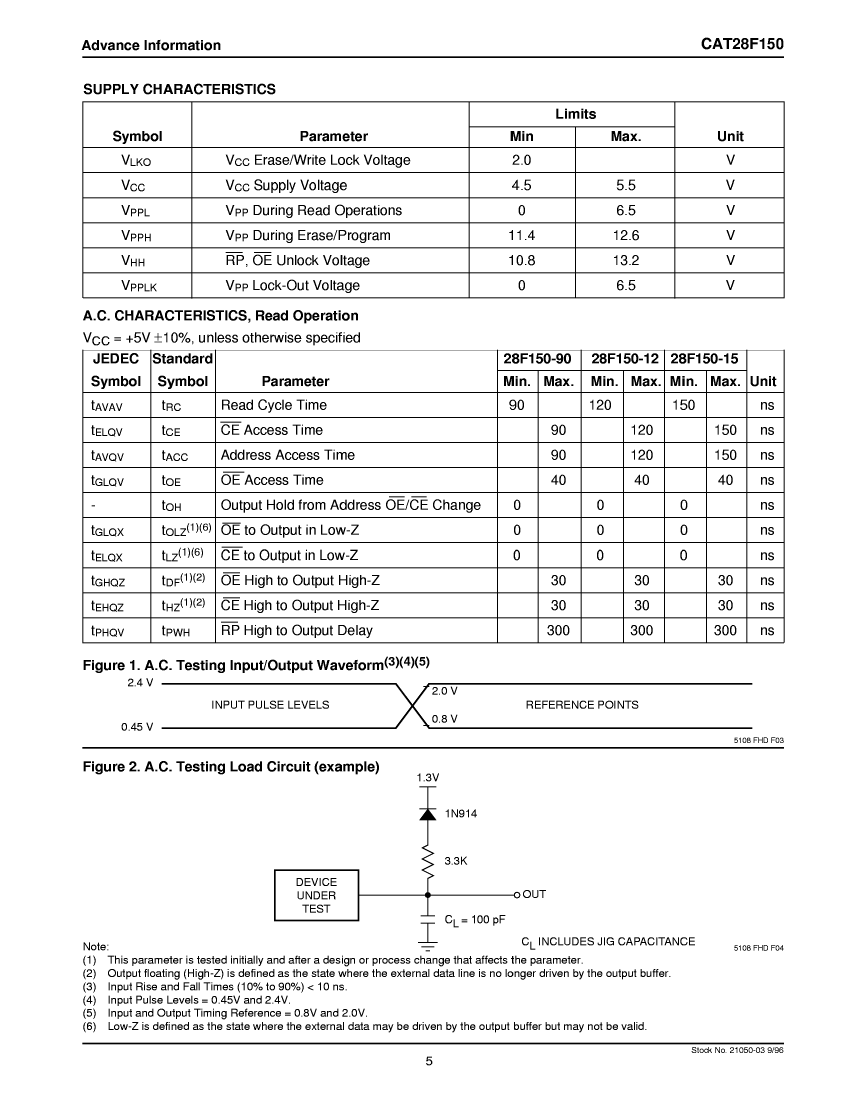

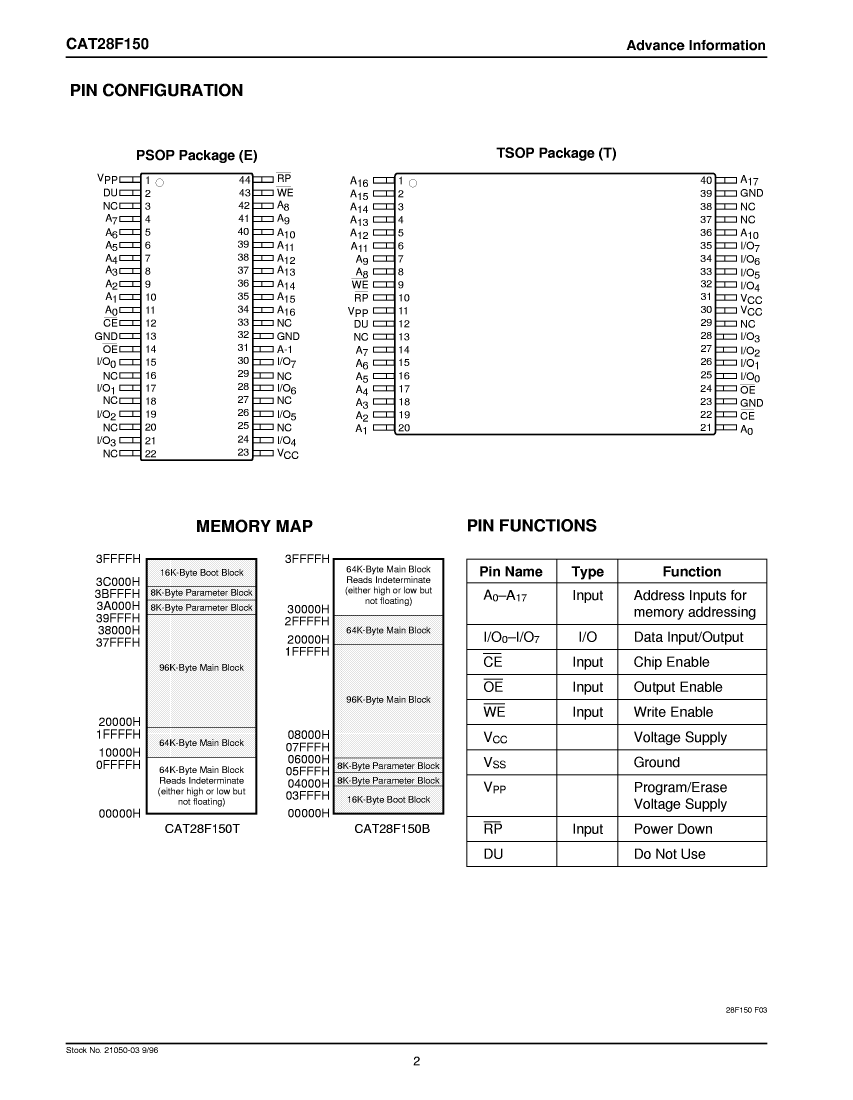

Preview

Download Datasheet

View All

CAT28F150EA-12T Related Products

	CAT28F150EA-12T	CAT28F150E-12B	CAT28F150E-15T	CAT28F150EA-12B	CAT28F150EA-15T	CAT28F150EA-90T	CAT28F150EI-12B	CAT28F150EI-12T	CAT28F150EI-15B	CAT28F150EI-90B
Description	Flash, 192KX8, 120ns, PDSO44	Flash, 192KX8, 120ns, PDSO44	Flash, 192KX8, 150ns, PDSO44	Flash, 192KX8, 120ns, PDSO44	Flash, 192KX8, 150ns, PDSO44	Flash, 192KX8, 90ns, PDSO44	Flash, 192KX8, 120ns, PDSO44	Flash, 192KX8, 120ns, PDSO44	Flash, 192KX8, 150ns, PDSO44	Flash, 192KX8, 90ns, PDSO44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	150 ns	120 ns	150 ns	90 ns	120 ns	120 ns	150 ns	90 ns
startup block	TOP	BOTTOM	TOP	BOTTOM	TOP	TOP	BOTTOM	TOP	BOTTOM	BOTTOM
command user interface	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Data polling	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8	8	8
Number of departments/size	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1
Number of terminals	44	44	44	44	44	44	44	44	44	44
word count	196608 words	196608 words	196608 words	196608 words	196608 words	196608 words	196608 words	196608 words	196608 words	196608 words
character code	192000	192000	192000	192000	192000	192000	192000	192000	192000	192000
Maximum operating temperature	105 °C	70 °C	70 °C	105 °C	105 °C	105 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	192KX8	192KX8	192KX8	192KX8	192KX8	192KX8	192KX8	192KX8	192KX8	192KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Department size	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K	16K,8K,64K,96K
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.055 mA	0.055 mA	0.055 mA	0.055 mA	0.055 mA	0.055 mA	0.055 mA	0.055 mA	0.055 mA	0.055 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
switch bit	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
Base Number Matches	1	1	1	1	1	1	1	1	1	1
