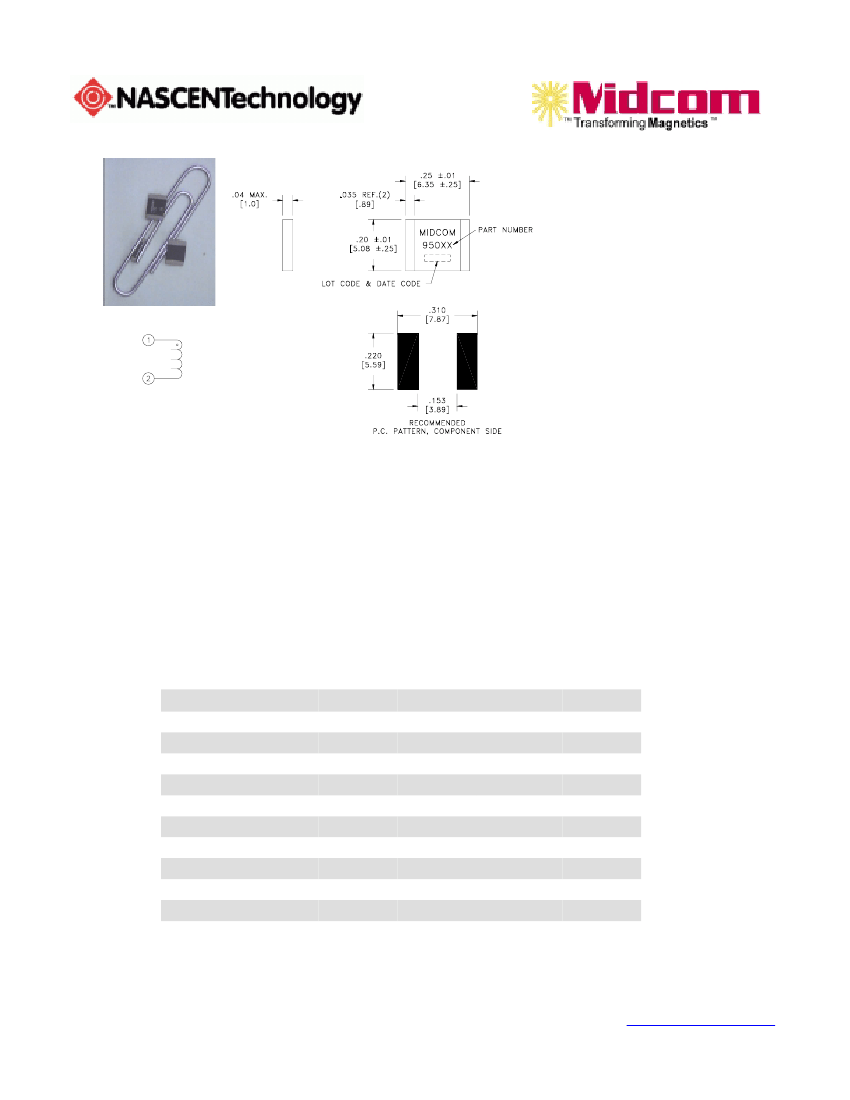

Low Profile Series 2520 SMT Inductors

Features

1mm maximum height

Rugged package

Self shielding

Designed for pick and place

Compatible with typical lead free solder

profiles

Good DC bias overload characteristics

Low cost

Dimensions in Inches

Applications

Low power high frequency switch mode

DC/DC converters:

•

Buck/Boost

•

Inverting

•

SEPIC

White LED driver circuits

PDAs, digital cameras, pagers

Cordless phones, LCD displays

Midcom, Inc.

NASCENTechnology division has developed a family of inductors to demonstrate what can be done

using Low Temperature Co-fired Ceramic (LTCC) technology. Although primarily designed for portable battery pow-

ered applications where low profile and rugged construction are critical, these inductors will find use wherever a low

cost solution is desired. Since the windings are completely enclosed by ferrite, superior EMI characteristics are

noted. Sized in between typical “chip” inductors and drum cores, the new Midcom inductor series has DC bias

characteristics closer to drum cores, while being able to withstand DC bias overloads without totally saturating. In

addition, the construction materials used can withstand high temperatures without degradation.

This product is protected under Midcom’s Intellectual Property Portfolio, specifically US Patents # 6,054,914, # 6,198,374

and other pending patents.

Part No

95034

95035

95036

95037

95038

95039

95040

95041

95042

95043

95044

Ls (uH)

0. 47

0. 68

0. 82

1. 0

1. 2

1. 5

1. 8

2. 2

2. 7

3. 3

4. 7

I sat (A)

1. 00

0. 89

0. 78

0. 69

0. 62

0. 57

0. 52

0. 50

0. 42

0. 38

0. 32

I rm s (A)

2. 8

2. 5

2. 4

2. 2

2. 1

2. 0

1. 9

1. 87

2. 1

2. 0

1. 87

DCR (ohm )

0. 076

0. 089

0. 102

0. 114

0. 127

0. 140

0. 152

0. 165

0. 127

0. 140

0. 165

SRF (MHz)

TBD

25. 7

TBD

17. 8

Notes:

Ls: +/- 25%, 100kHz, 0.1vrms

Isat: DC current where Ls drops ~ 10% from no

DC reading after initial magnetizing bias applied

Irms: Typical current required to raise part 40

degrees from room temperature (25 C)

DCR: Average value, +/- 20% @ 20 C

SRF: Average value shown

Operating temperature range: -40 to 85 C

Specifications subject to change without notice.

For additional information, contact: Daryl Schofield,

Sales and Marketing,

phone: 605.882.8513 or call toll free in the USA: 800.643.2661 Fax: 605.886.4486

or Midcom, Inc., 121 Airport Drive, Watertown, SD 57201

Web: www.midcom-inc.com E-mail:

dschofield@midcom-inc.com
