DLK-712S: DescriptionPOWER DIVIDERS 0ì : 12-WAY; CategoryWireless rf/communication Radio frequency and microwave; File Size34KB，1 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric Compare View All

DLK-712S Overview

POWER DIVIDERS 0ì : 12-WAY

DLK-712S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	ISOLATION-MIN (DB):23
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	2 dB
Maximum operating frequency	250 MHz
Minimum operating frequency	3 MHz
RF/Microwave Device Types	SPLITTER
Base Number Matches	1

Preview

Download Datasheet

View All

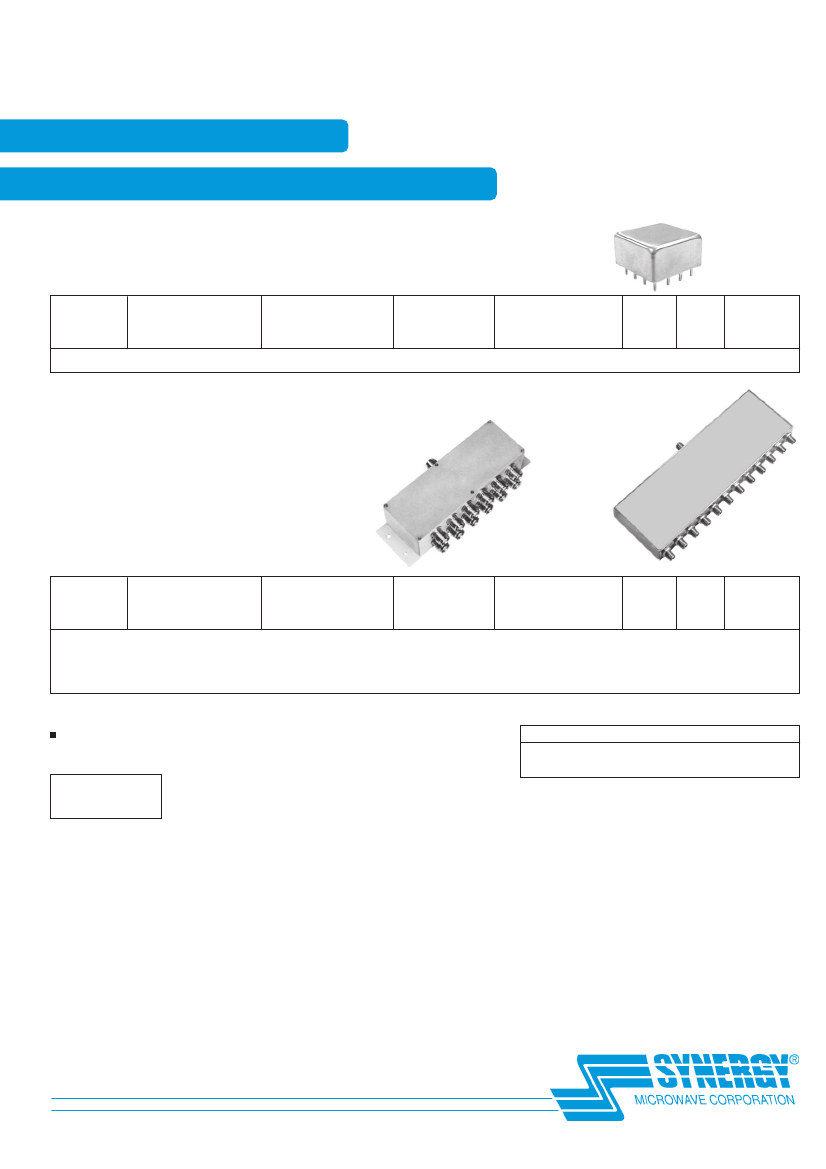

POWER DIVIDERS

0º : 12-WAY

HROUGH

OLE

OUNT

(16 - Pin)

FREQUENCY

RANGE

ISOLATION (dB)

INSERTION LOSS (dB)

PHASE UNBALANCE

(Degrees)

MAX

AMPLITUDE UNBALANCE

(dB)

PACKAGE

(MHz)

TYP/MIN

TYP/MAX

MAX

PIN-OUT

(See

Below)

MODEL

2-100

25/20

33/20

34/20

0.4/0.8 0.4/0.8 0.6/1.0

2.0

3.0

0.4

0.6

124

DLP-901

OAXIAL

ONNECTOR

FREQUENCY

RANGE

ISOLATION (dB)

(MHz)

TYP/MIN

TYP/MAX

172

INSERTION LOSS (dB)

PHASE UNBALANCE

(Degrees)

MAX

143

AMPLITUDE UNBALANCE

(dB)

PACKAGE

MAX

PIN-OUT

(See

Below)

MODEL

TYP/MAX

3-250

5-200

850-1000

25/20

---/---

32/25

32/23

---/---

30/23

25/20

25/18

20/15

1.0/1.3

0.7/1.2

0.8/1.3

---/---

0.9/1.2

0.9/1.1

0.9/1.2

---/---

1.6/2.0

1.2/1.5

1.2/1.6

3.0/4.0

3.0

4.0

6.0

8.0

0.3

0.5

0.4

0.6

0.8

2.0

143

172

143

DLK-712S

DLK-702B

DLK-772B

DLK-7L4S

Power Rating (All Models) = 1 Watt, max

75 Ohm Model

(UB) - Denotes full bandwidth specification

For pin location and package outline drawings, see back pages.

PIN-OUT TABLE

INPUT

OUTPUTS

CASE GROUND

7,10,11

1,2,3,4,5,8,9,12,13,14,15,16

2,3,4,5,6,7,8,9,10,11,12,13

LB = LF to 10 LF

MB = 10 LF to HF/2

UB = HF/2 to HF

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 119 ]

DLK-712S Related Products

	DLK-712S	DLK-702B	DLK-772B	DLP-901	DLK-7L4S
Description	POWER DIVIDERS 0ì : 12-WAY	POWER DIVIDERS 0ì : 12-WAY	POWER DIVIDERS 0ì : 12-WAY	POWER DIVIDERS 0ì : 12-WAY	POWER DIVIDERS 0ì : 12-WAY
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	compli	unknow
Other features	ISOLATION-MIN (DB):23	ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):18	ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):15
structure	COAXIAL	COAXIAL	COAXIAL	COMPONENT	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	2 dB	1.5 dB	1.6 dB	1 dB	4 dB
Maximum operating frequency	250 MHz	200 MHz	200 MHz	100 MHz	1000 MHz
Minimum operating frequency	3 MHz	5 MHz	5 MHz	2 MHz	850 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Base Number Matches	1	-	1	1	-
