TLC1553-5 Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:2.12CT; 1CT:1.5CT,

TLC1553-5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
high	3.937 mm
length	16.002 mm
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature

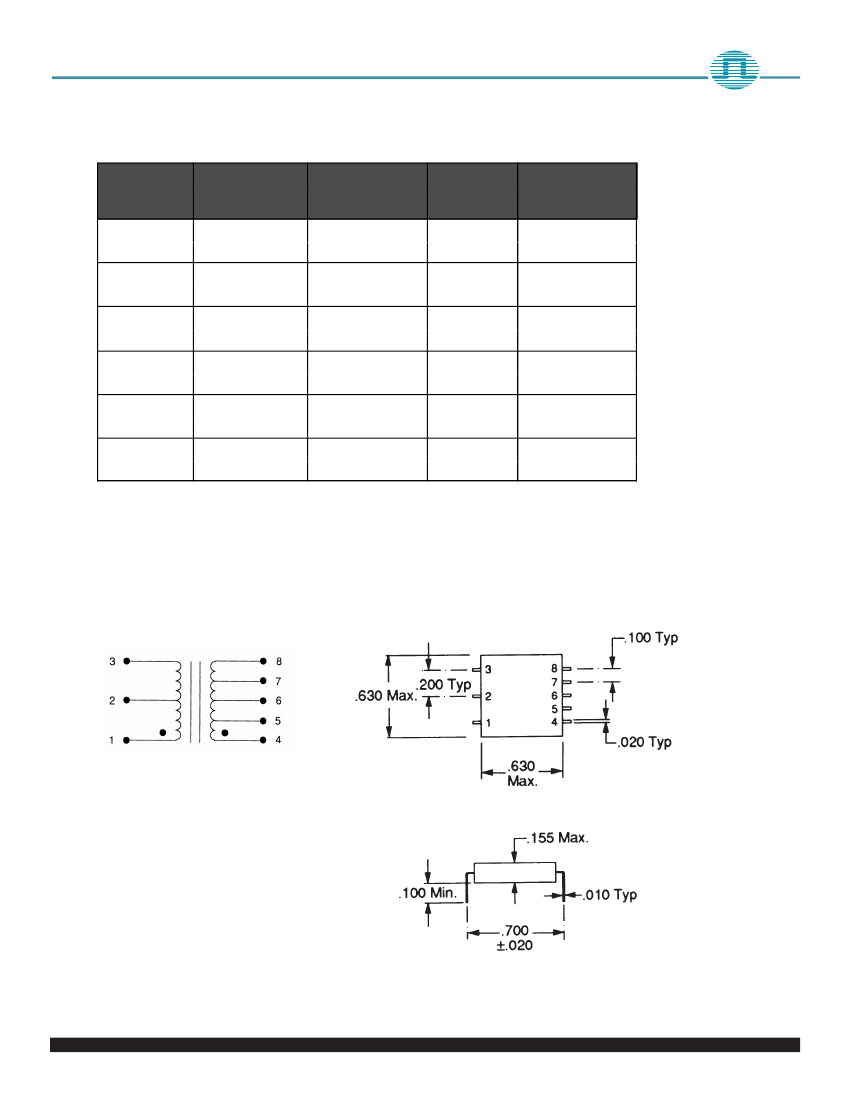

physical size	L0.63XB0.63XH0.155 (inch)
surface mount	NO
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:2.12CT; 1CT:1.5CT
width	16.002 mm
Base Number Matches	1

Preview

Download Datasheet

View All

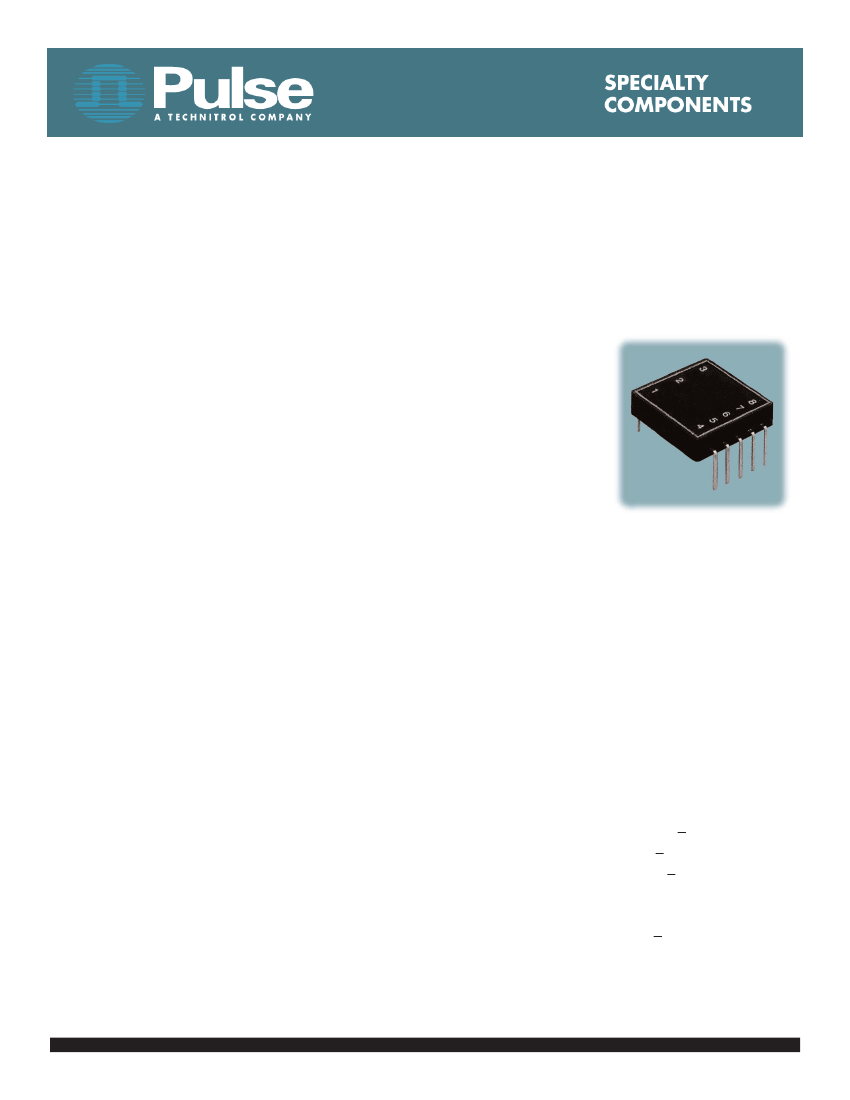

Value Series through the board

low profile MIL-PRF-21038

Interface Transformers (0

to +70

These non-QPL interface transformers conform to all electrical

and physical parameters of MIL-PRF-21038/27 and provide

performance as required over 0

to +70

C. Built and tested in

ISO 9002 approved facilities.

for use in MIL-STD-1553 applications

low profile, 0.155 in. height

dual ratio in a single package

performance to MIL-PRF-21038/27 requirements

built in ISO 9002 facility

to +70

APPLICABLE SPECIFICATIONS

MIL-STD-1553B

MIL-STD-202

MIL-T-10727

MIL-PRF-21038

ISO 9002

SUMMARY PERFORMANCE SPECIFICATIONS

Impedance................................................................................................... see table

Droop..............................................................................................................

20%

Overshoot..................................................................................................

1V max

Common mode rejection (CMR).................................................................

45 dB

Frequency range (no load)............................................................. 75 kHz to 1MHz

Operating temperature range................................................................ 0o to +70oC

Weight.......................................................................................................

5 grams

Insulation resistance (min)........................................... 10K megohms @ 250 Vdc

Dielectric withstanding voltage................................................................ 100 Vrms

TWO PEARL BUCK COURT

BRISTOL, PA 19007-6812

TEL 215-781-6400

FAX 215-781-6403

www.pulsespecialty.com
