BL
Galaxy Electrical
Silicon Epitaxial Planar Diode
FEATURES
Fast Switching Speed:trr=4ns(Typ)
Surface Mount Package Ideally Suited For
Automatic Insertion
For General Purpose Switching Applications
High Conductance
Available in Lead Free Version
Production specification
BAV16WS
Pb
Lead-free
APPLICATIONS
Surface mount fast switching diode
SOD-323
ORDERING INFORMATION
Type No.
BAV16WS
Marking
T6
Package Code
SOD-323
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Reverse Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current @t=1.0
μs
@t=1.0 s
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating and Storage Temperature Rage
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
o
I
FSM
P
d
R
θJA
T
j
,T
STG
Value
100
75
Unit
V
V
53
300
150
2.0
1.0
400
315
-65 to+150
V
mA
mA
A
mW
℃/W
℃
Document number: BL/SSSDB017
Rev.A
www.galaxycn.com
1
BL
Galaxy Electrical
Silicon Epitaxial Planar Diode
ELECTRICAL CHARACTERISTICS
@ Ta=25℃
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Symbol
V
(BR)R
V
F
Min
75
0.62
-
0.72
0.855
1.0
1.25
1.0
25
2.0
4.0
Production specification
BAV16WS
unless otherwise specified
Unit
V
V
Test Condition
I
R
=1.0μA
I
F
=5mA
I
F
=10mA
I
F
=100mA
I
F
=150mA
V
R
=75V
V
R
=20V
V
R
=0,f=1.0MHz
I
F
=I
R
=10mA,
I
rr
=0.1×I
R
,R
L
=100Ω
Max
Reverse Current
Capacitance between
terminals
Reverse Recovery Time
I
R
C
T
t
rr
-
-
-
μA
nA
pF
ns

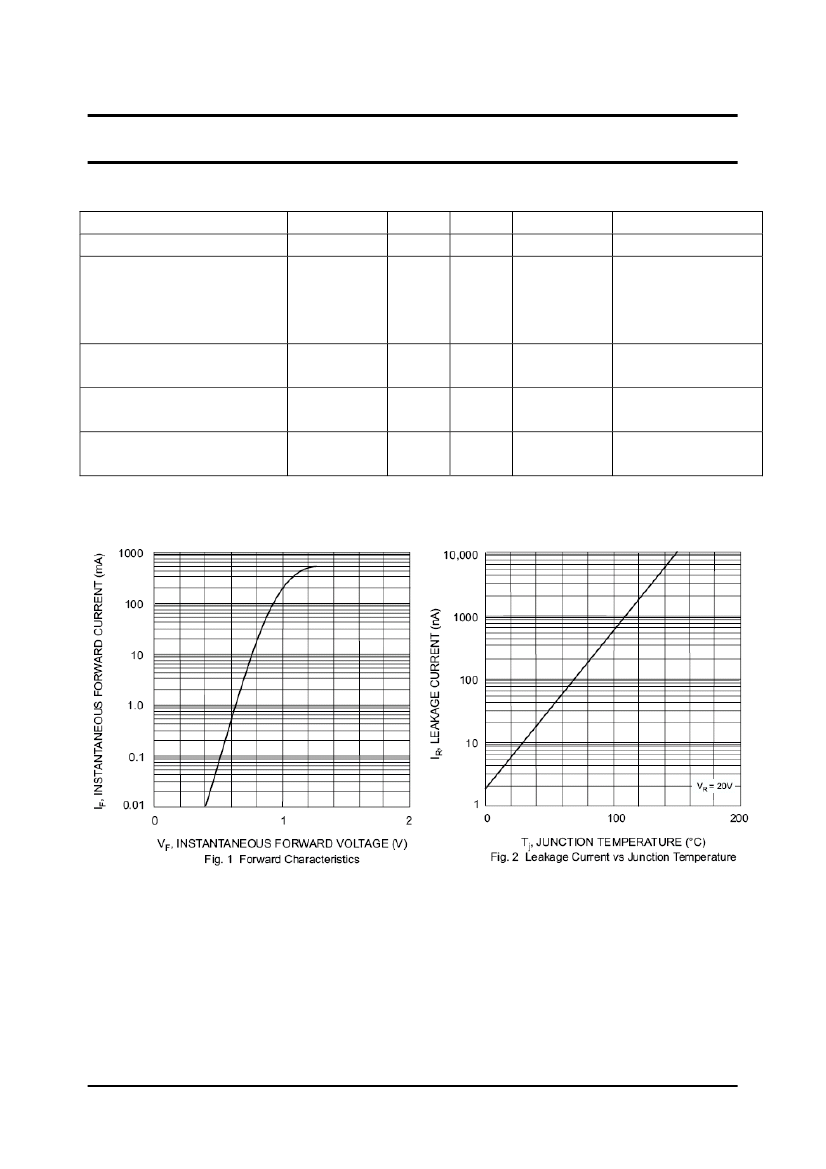

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSDB017
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
Silicon Epitaxial Planar Diode
PACKAGE OUTLINE
Plastic surface mounted package
Production specification
BAV16WS
SOD-323
K
B
SOD-323
C
Dim
A
Min
1.275
1.675
Max
1.325
1.725
D
A
B
C
D
E
H
0.9 Typical
0.25
0.27
0.02
0.35
0.37
0.1
J
E
H
J
K
0.1 Typical
2.6
All Dimensions in mm
2.7
SOLDERING FOOTPRINT
Unit : mm
PACKAGE
Device
BAV16WS
INFORMATION
Package
SOD-323
Shipping
3000/Tape&Reel
Document number: BL/SSSDB017
Rev.A
www.galaxycn.com
3
