127040-2386: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

127040-2386 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal

127040-2386 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	STARCARD NOVA
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	127040
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	0.64 mm
Termination type	SURFACE MOUNT
Total number of contacts	68
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

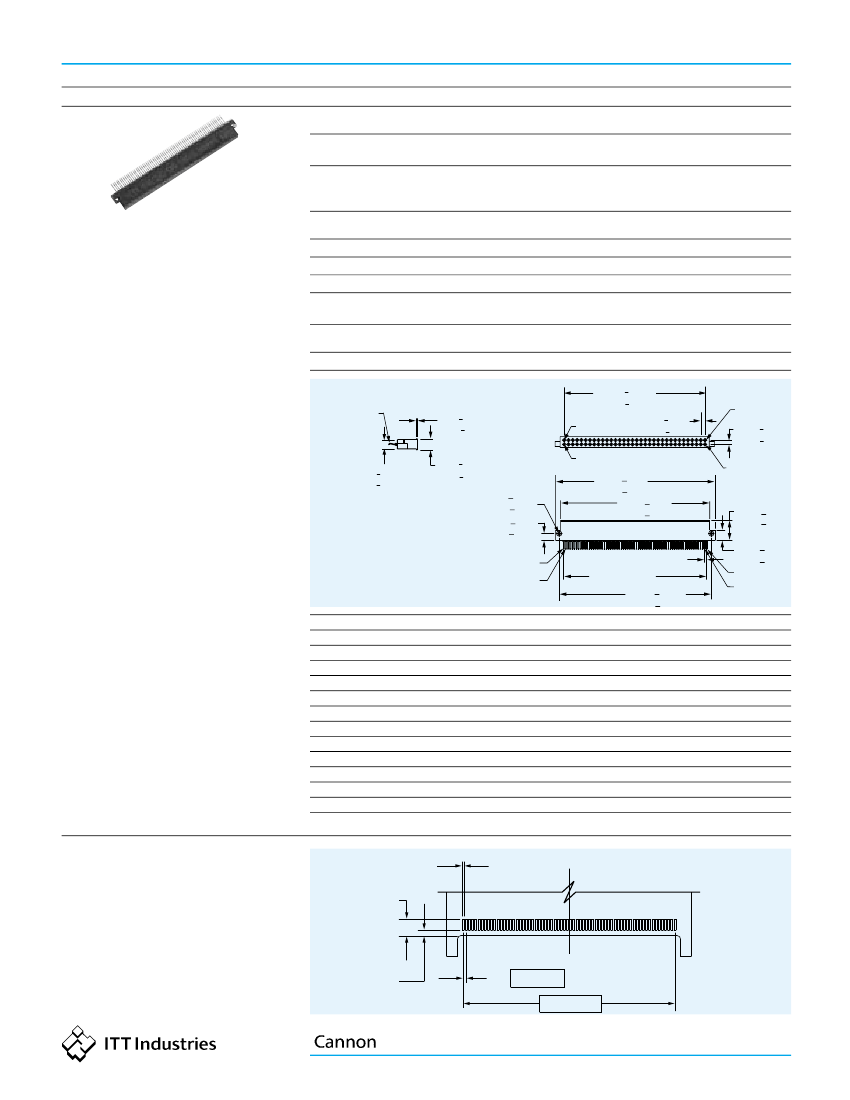

PCMCIA I/O Kit

68 Way Single-Sided Surface Mount Connector – Standard

Materials and Finishes

Connectors:

Contacts:

StarCard Nova

High performance plastic, glass fiber reinforced (30%), flame

retardant UL 94V-0 rated, color: black

Base Material Beryllium Copper. Finish: Nickel base with Palladium

Nickel plus gold flash for contact area, solder tails Tin/Lead 90%

tin/10% lead

Conforms to recommended connector and

pad footprint in current PCMCIA Release.

Single-sided, single row, surface mount

in-line tails/0,10 (.004) thick by 0,25 (.010)

wide.

Incorporates PCMCIA card keying at ends of

insulator

Slots for positive cover set alignment.

68 way connector is also available with

location boss.

Electrical

Current Rating:

Voltage:

Dielectric Withstanding Voltage:

Operating Temperature:

Mechanical

Hertzian Stress:

140,000 psi minimum

41,91+0,15

(1.650+.006)

0,36+0,05

(.014+.002)

3,30+0,10

(.130+.004)

2X Ø 1,00+0,05

(.039+.002)

2,00+0,10

(.079+.004)

67X 0,635

(.0250)

42,54 (1.675)

45,30+0,15

(1.783+.006)

NO. 35

NO. 1

47,40+0,20

(1.866+.008)

44,40+0,15

(1.748+.006)

NO. 34

33X 1,27+0,12

(.050+.004)

NO. 68

1,27+0,10

(.050+.004)

100 V ac rms/DC 150 V

0.5 A (per pin)

500 Vrms withstanding voltage between adjacent pads

Maximum soldering temperature is 260°C for a maximum of one

minute.

N OFFSET

POSITION

2,70+0,10

(.106+.004)

6,00+0,10

(.236+.004)

3,00+0,10

(.118+.004)

NO. 68

NO. 34

NO. 1

NO. 35

Part Number

127040-2382

127040-2331

127040-2335

127040-2303

127040-2332

127040-2330

127040-2334

127040-2386

127040-2304

127040-2333

127040-2384

127040-2387

Description

DICMJ-68S-SPC-M06

DICMJ-68S-SPC-M05

DICMJ-68S-SPC-M05T

DICMJ-68S-SPC-M01

DICMJ-68S-SPC-M01T

DICMJ-68S-SPC-M04

DICMJ-68S-SPC-M04T

DICMJ-68S-SPC-M10

DICMJ-68S-SPC-M02

DICMJ-68S-SPC-M02T

DICMJ-68S-SPC-M09

DICMJ-68S-SPC-M11

Type

Standard

N Offset

0 offset

0,2mm downward

0,3mm downward

0,5mm downward

0,6mm downward

Mounting

SMT

W/Boss

Yes

Package

tape (56mm)

tube

tray

tube

tray

tube

tray

56mm tape & reel

tube

tray

56mm tape & reel

Qty. Per

2500

Note: For additional Offset sizes contact Cannon.

Recommended PC Board Layout

(Non boss type)

68X 3,40

(.134)

68X 0,40

(.016)

C SYMM

68X 1,20

(.047)

67X 0,64 (.025)

42,55 (1.675)

Dimensions are shown in mm (inch)

Dimensions subject to change
