BH6504K-E2 datasheet, PDF - EEWORLD Datasheet

BH6504K-E2: DescriptionBrush DC Motor Controller, 0.5A, PQFP44, QFP-44; CategoryOther integrated circuit (IC) The signal circuit; File Size554KB，15 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

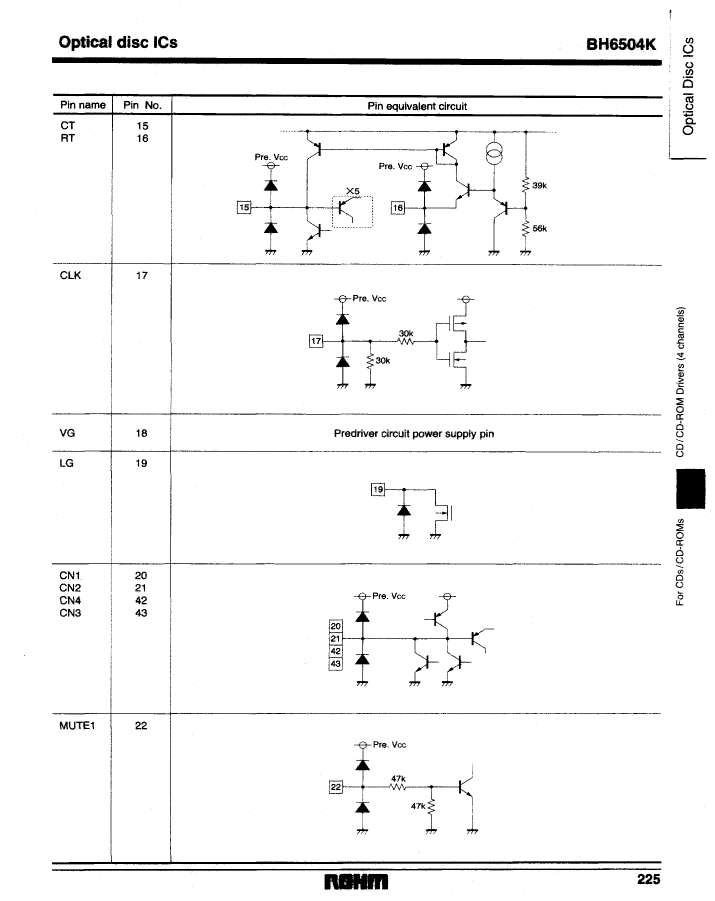

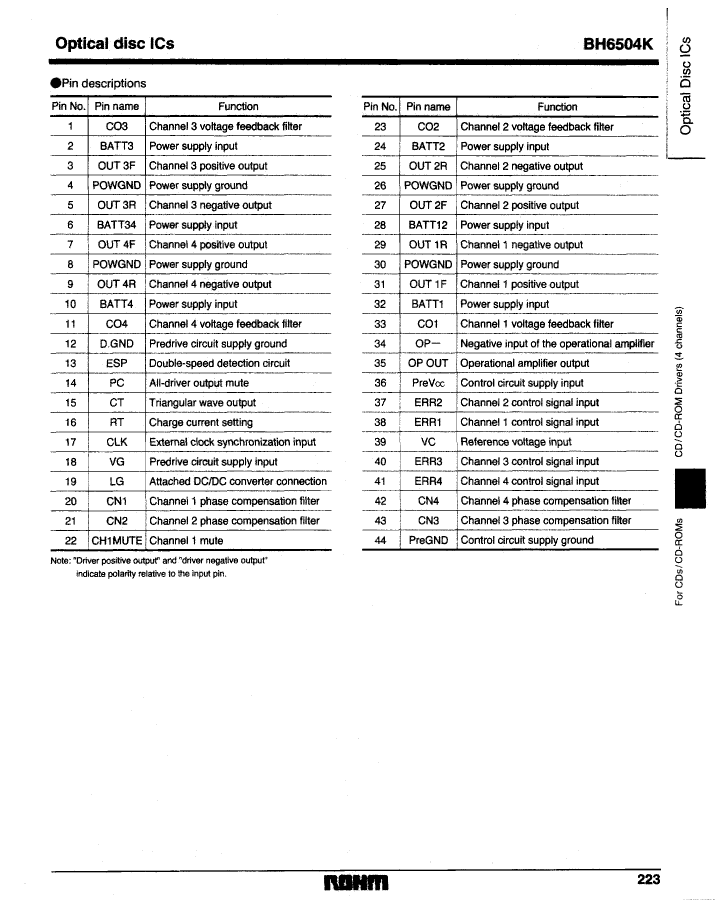

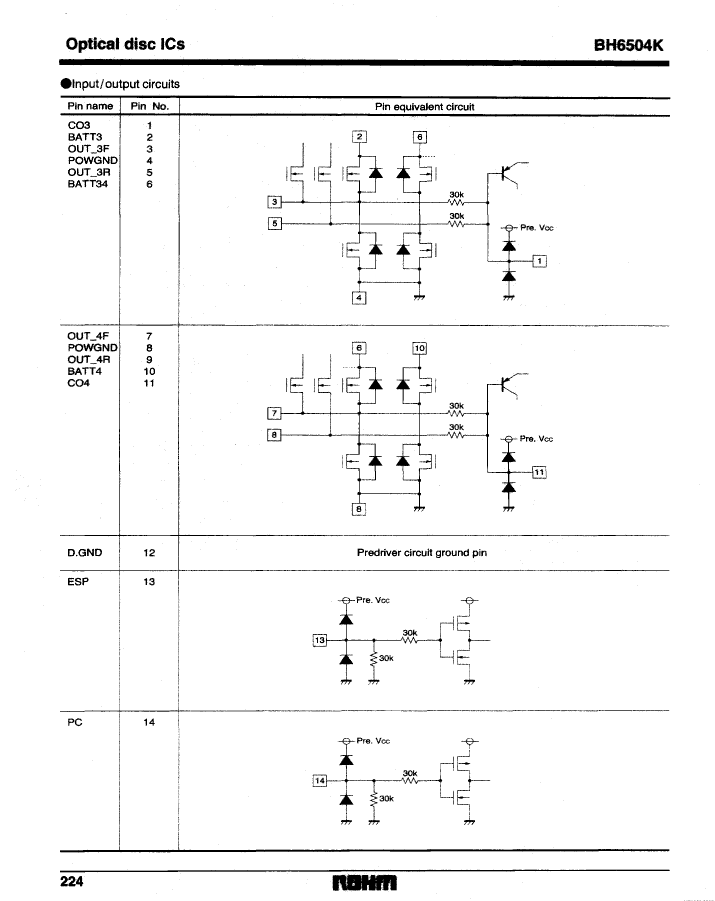

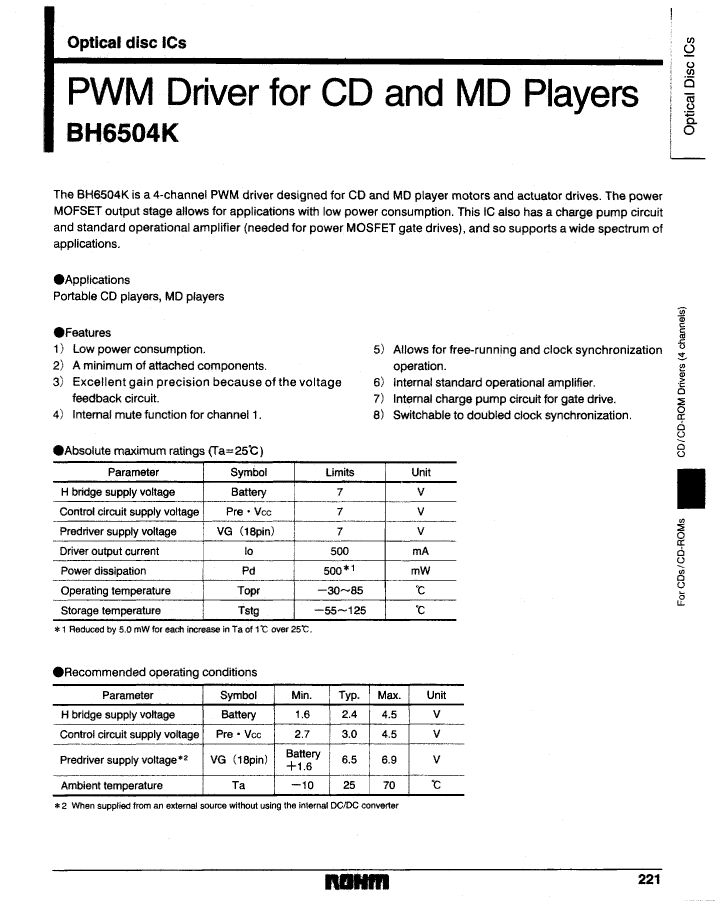

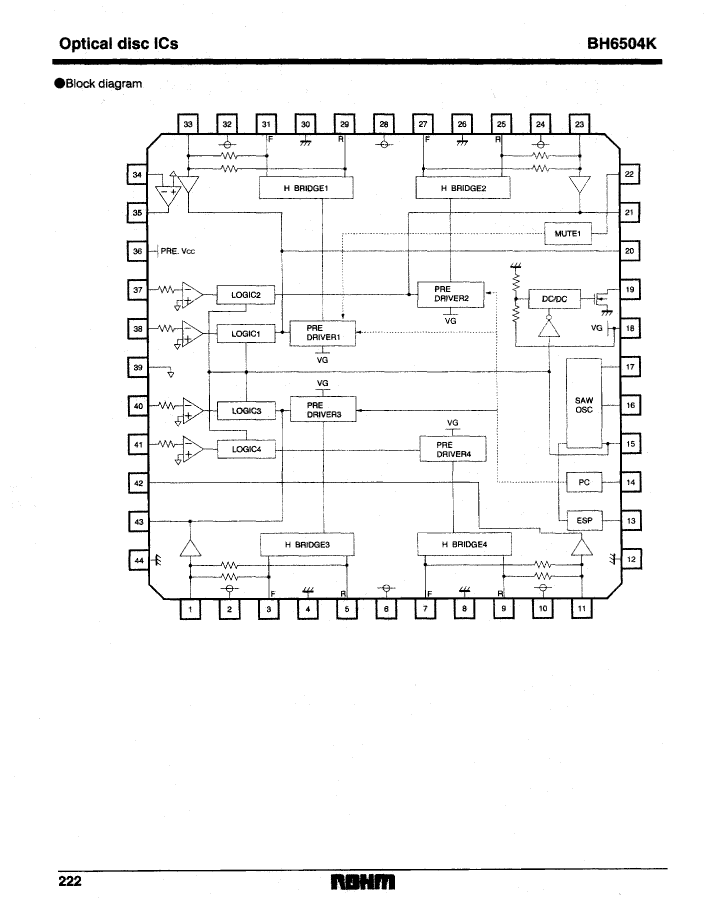

BH6504K-E2 Overview

Brush DC Motor Controller, 0.5A, PQFP44, QFP-44

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	S-PQFP-G44
length	10 mm
Number of functions	4
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.25 mm
Maximum supply voltage (Vsup)	4.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
Base Number Matches	1
