CSHDD8-40
CSHDD8-60
CSHDD8-100
SURFACE MOUNT
SILICON SCHOTTKY RECTIFIER
8 AMP, 40 THRU 100 VOLTS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CSHDD8-40
Series types are Silicon Schottky Rectifiers designed
for surface mount fast switching applications requiring
a low forward voltage drop. To order devices on 24mm
Tape and Reel ( 800/13” Reel ), add TR13 suffix to part
number.
MARKING: FULL PART NUMBER
D
2
PAK CASE
FEATURES:
• High reliability
• Low forward voltage
• High current capability
• High surge capacity
• UL flammability classification 94V-O
• Superior lot to lot consistency
• Low power loss, high effeciency
• High voltage
MAXIMUM RATINGS:
(TC=25°C unless otherwise noted)
SYMBOL
CSHDD8-40
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TC=100°C)
Peak Forward Surge Current, tp=8.3ms
Critical Rate of Rise of Reverse Voltage
Operating and Storage
Junction Temperature
Typical Thermal Resistance
Typical Thermal Resistance
VRRM
VR
VR(RMS)
IO
IFSM
dv/dt
TJ, Tstg
Θ
JC
Θ
JA
40
40
28
CSHDD8-60
60
60
42
8.0
150
10,000
-65 to +150
2.0
50
CSHDD8-100
100
100
70
UNITS
V
V
V
A
A
V/µs
°C
°C/W
°C/W
ELECTRICAL CHARACTERISTICS:
(TC=25°C unless otherwise noted)
CSHDD8-40
CSHDD8-60
SYMBOL
IR
IR
VF
VF
VF
VF
CJ
TEST CONDITIONS
VR=Rated
VR=Rated
IF=8.0A
IF=8.0A, TC=125°C
IF=16A
IF=16A, TC=125°C
VR=4.0V, f=1.0MHz
300
VRRM
VRRM, TC=125°C
TYP
MAX
100
15
0.65
0.57
0.84
0.72
300
TYP
MAX
100
15
0.75
0.65
0.95
0.85
CSHDD8-100
TYP
MAX
100
15
0.85
0.75
1.10
1.00
300
UNITS
µA
mA
V
V
V
V
pF
R4 (17-February 2010)
CSHDD8-40
CSHDD8-60
CSHDD8-100
SURFACE MOUNT
SILICON SCHOTTKY RECTIFIER
8 AMP, 40 THRU 100 VOLTS
D
2

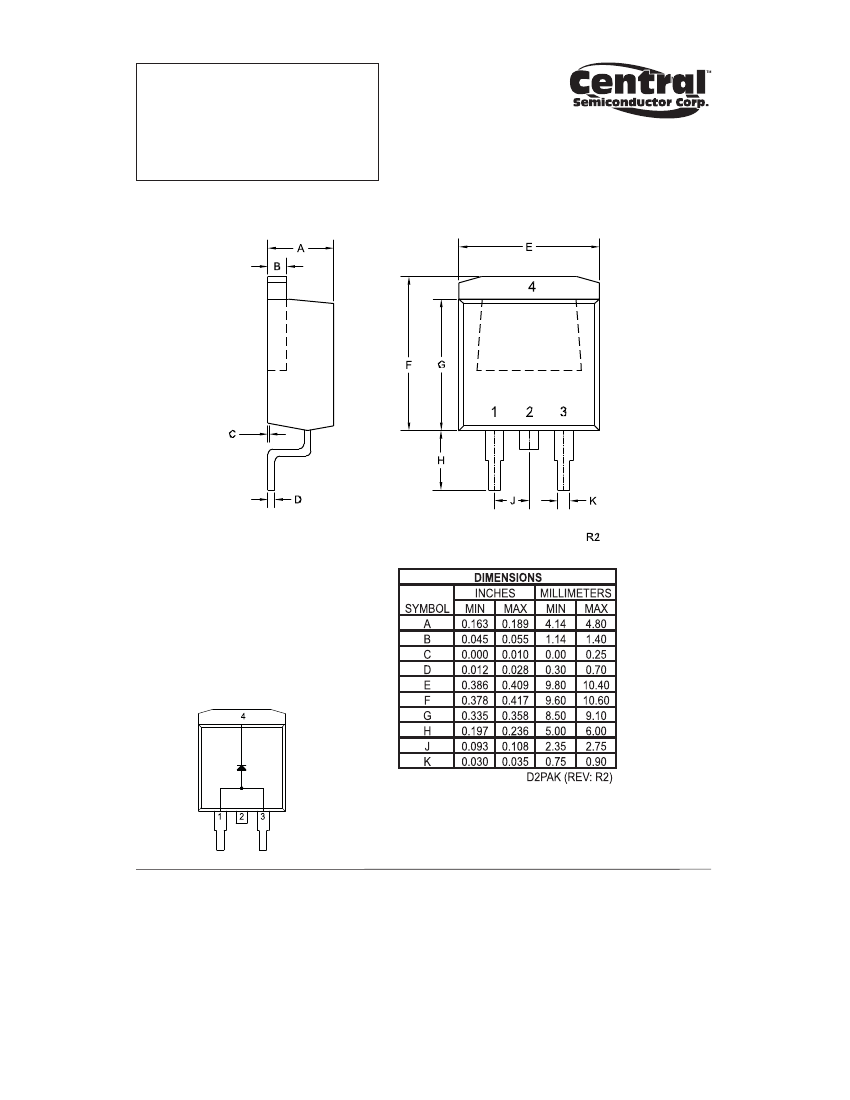

PAK CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Anode
2) Cathode
3) Anode
4) Cathode
Pin 2 is Common to the Tab (4).
MARKING: FULL PART NUMBER
R4 (17-February 2010)
