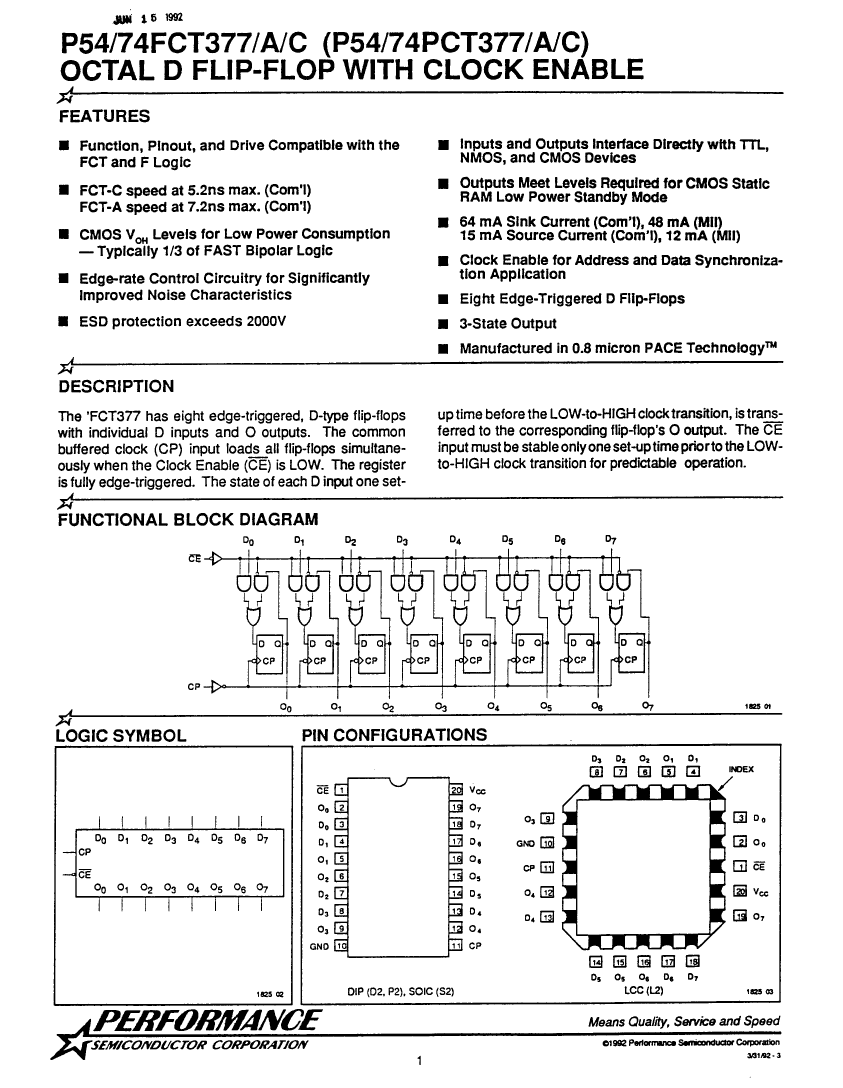

Preview

P54FCT377CDMB: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20; Categorylogic logic; File Size420KB，4 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P54FCT377CDMB Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20

P54FCT377CDMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	71400000 Hz
MaximumI(ol)	0.032 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	5.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

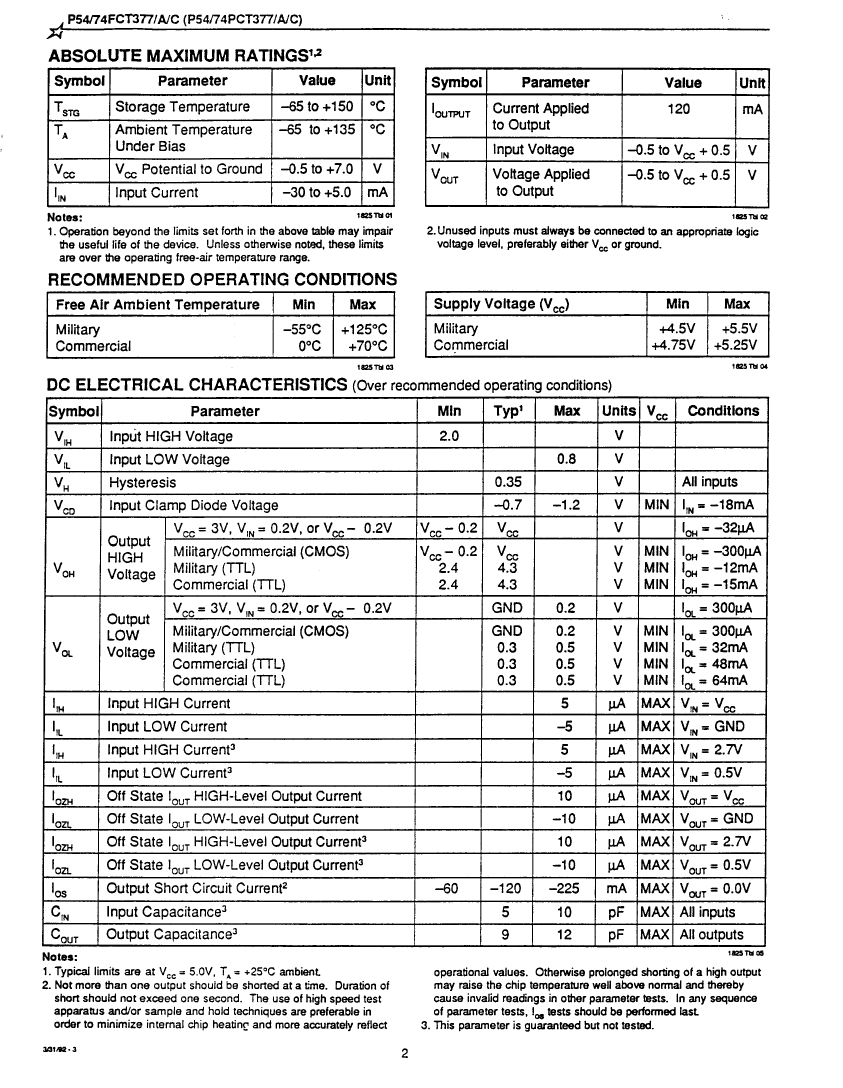

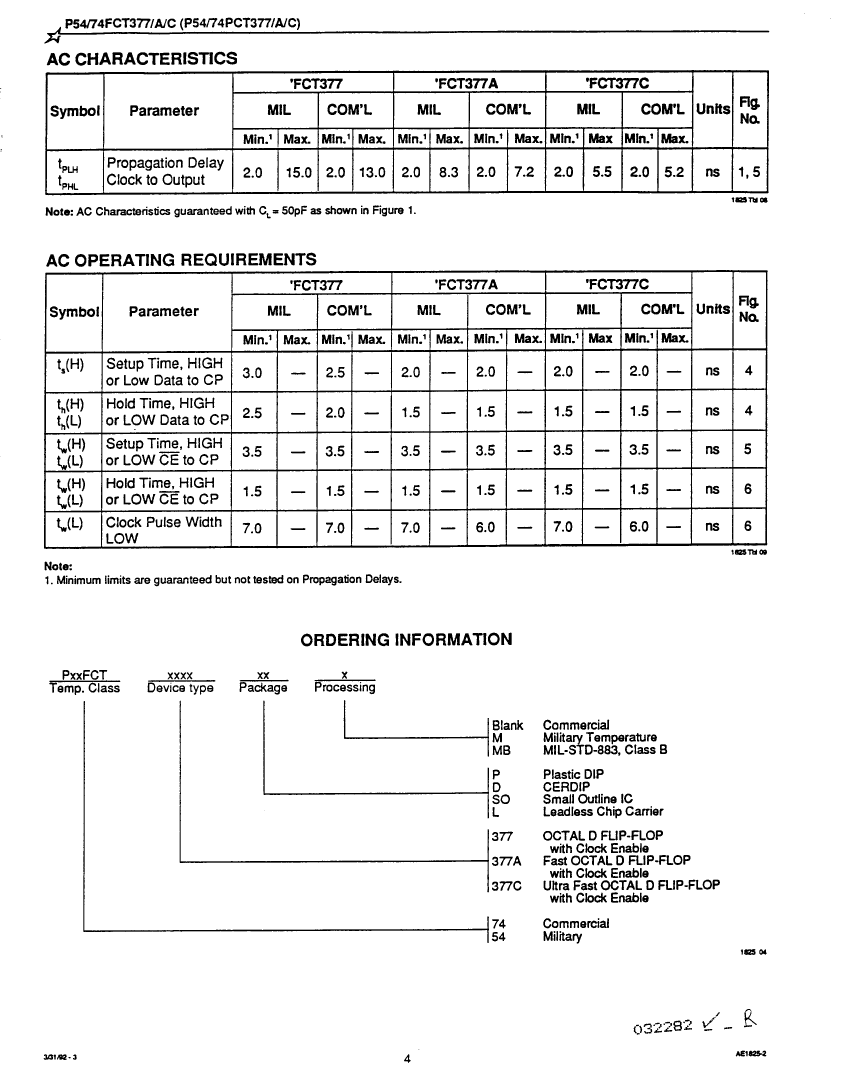

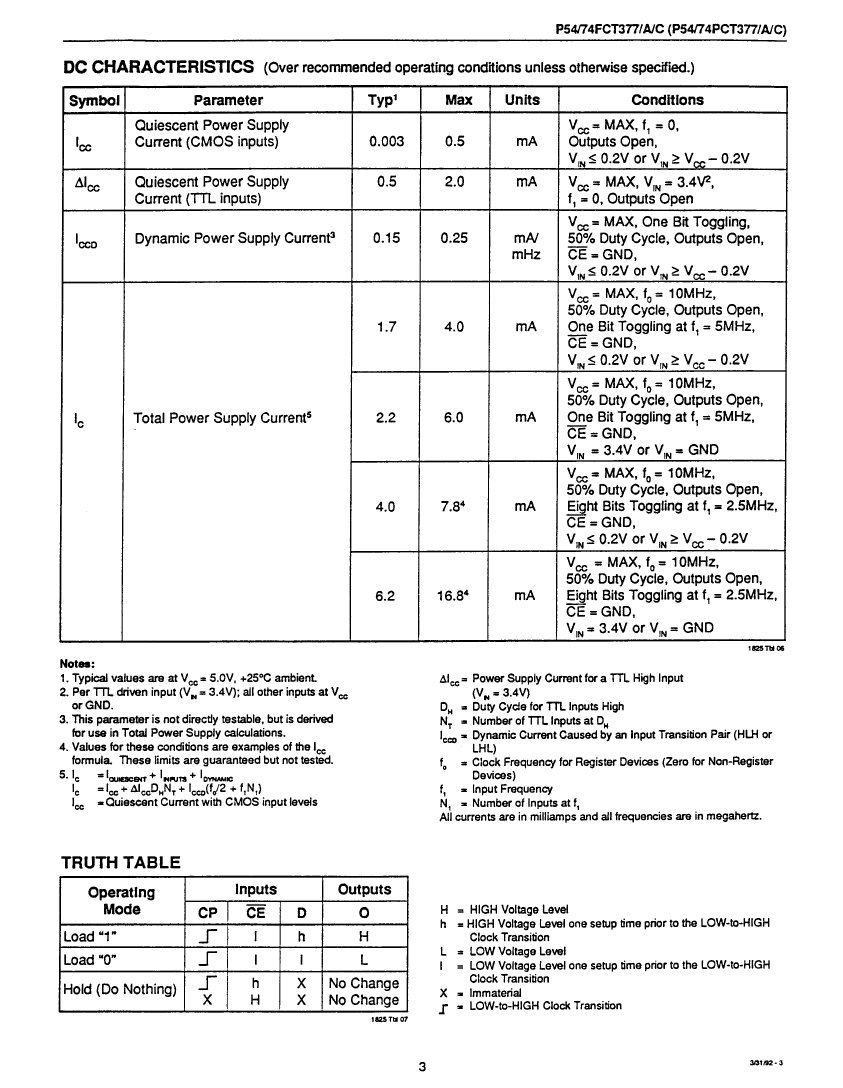

Preview

Download Datasheet

View All

P54FCT377CDMB Related Products

	P54FCT377CDMB	P54FCT377LMB	WBDDSS8-A-02-1961-F-A	P54FCT377ADMB	P54FCT377CTDB	P54FCT377TDB	P54FCT377TLB	P54FCT377ATLB	P54FCT377CLMB
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20	Array/Network Resistor, Isolated, 0.1W, 1960ohm, 100V, 1% +/-Tol, -50,50ppm/Cel, 1408,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown
Number of terminals	20	20	16	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	150 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	IN-LINE	CHIP CARRIER	SMT	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	QCCN, LCC20,.35SQ	-	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
JESD-30 code	R-XDIP-T20	S-XQCC-N20	-	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	S-XQCC-N20	S-XQCC-N20	S-XQCC-N20
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	-	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	71400000 Hz	71400000 Hz	-	71400000 Hz	71400000 Hz	71400000 Hz	71400000 Hz	71400000 Hz	71400000 Hz
MaximumI(ol)	0.032 A	0.032 A	-	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A
Number of functions	8	8	-	8	8	8	8	8	8
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	-	DIP	DIP	DIP	QCCN	QCCN	QCCN
Encapsulate equivalent code	DIP20,.3	LCC20,.35SQ	-	DIP20,.3	DIP20,.3	DIP20,.3	LCC20,.35SQ	LCC20,.35SQ	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
power supply	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	5.5 ns	15 ns	-	8.3 ns	5.5 ns	15 ns	15 ns	8.3 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	-	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	-	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	-	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	-	1	1	1	1	-	-
Maker	-	-	-	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
