IRGP50B60PD

Description
SMPS IGBT
CategoryDiscrete semiconductor    The transistor
File Size388KB,11 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

IRGP50B60PD Overview

SMPS IGBT

IRGP50B60PD Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-247AC
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompli
Other featuresHIGH RELIABILITY, LOW CONDUCTION LOSS
Shell connectionCOLLECTOR
Maximum collector current (IC)75 A
Collector-emitter maximum voltage600 V
ConfigurationSINGLE WITH BUILT-IN DIODE
Maximum landing time (tf)65 ns
Gate emitter threshold voltage maximum5 V
Gate-emitter maximum voltage20 V
JEDEC-95 codeTO-247AC
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)225
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)370 W
Certification statusNot Qualified
Maximum rise time (tr)36 ns
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsPOWER CONTROL
Transistor component materialsSILICON
Nominal off time (toff)190 ns
Nominal on time (ton)59 ns

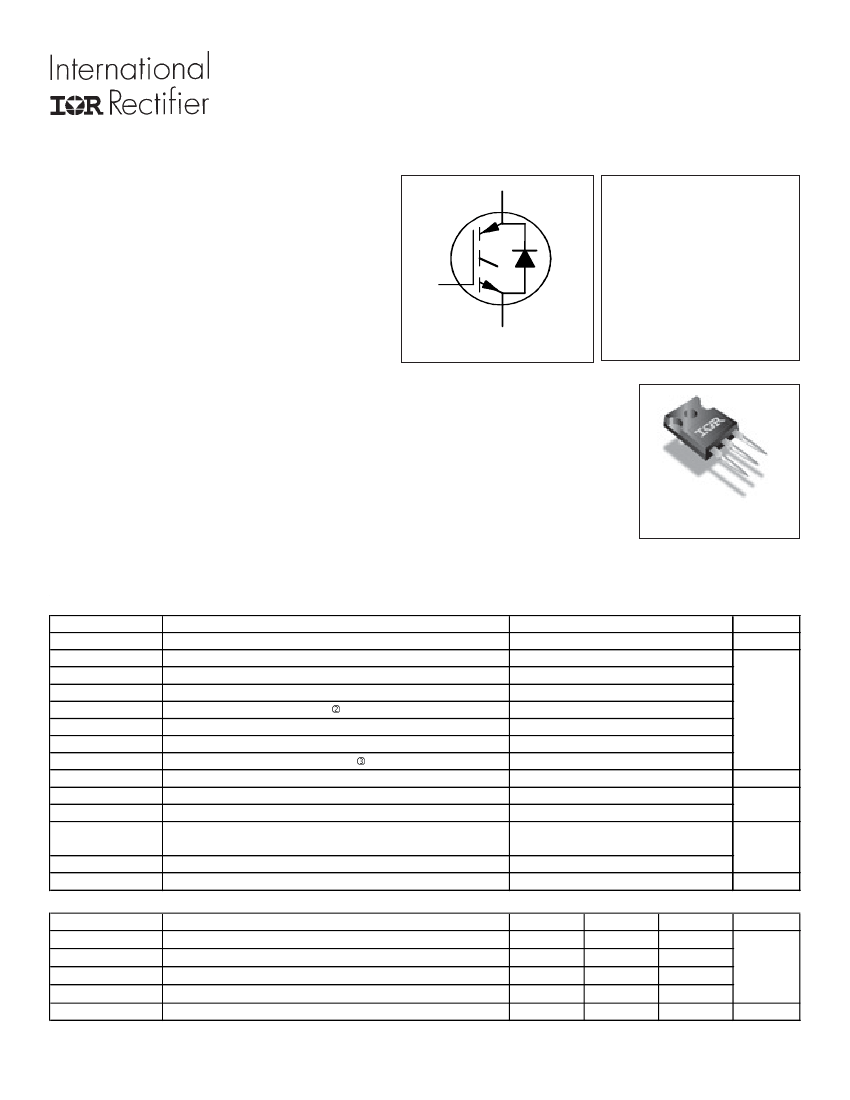

PD - 95968
IRGP50B60PDPbF
SMPS IGBT
WARP2 SERIES IGBT WITH
ULTRAFAST SOFT RECOVERY DIODE
C
Applications
Telecom and Server SMPS
PFC and ZVS SMPS Circuits
Uninterruptable Power Supplies
Consumer Electronics Power Supplies
Lead- Free
V
CES
= 600V
V
CE(on)
typ. = 2.00V
@ V
GE
= 15V I
C
= 33A
G
E
Features
NPT Technology, Positive Temperature Coefficient
Lower V
CE
(SAT)
Lower Parasitic Capacitances
Minimal Tail Current
HEXFRED Ultra Fast Soft-Recovery Co-Pack Diode
Tighter Distribution of Parameters
Higher Reliability
n-channel
Equivalent MOSFET
Parameters

R
CE(on)
typ. = 61mΩ
I
D
(FET equivalent) = 50A
E
C
G
Benefits
Parallel Operation for Higher Current Applications
Lower Conduction Losses and Switching Losses
Higher Switching Frequency up to 150kHz
TO-247AC
Absolute Maximum Ratings
Parameter
V
CES
I
C
@ T
C
= 25°C
I
C
@ T
C
= 100°C
I
CM
I
LM
I
F
@ T
C
= 25°C
I
F
@ T
C
= 100°C
I
FRM
V
GE
P
D
@ T
C
= 25°C
P
D
@ T
C
= 100°C
T
J
T
STG
Collector-to-Emitter Voltage
Continuous Collector Current
Continuous Collector Current
Pulse Collector Current (Ref. Fig. C.T.4)
Clamped Inductive Load Current
Max.
600
75
42
150
150
50
25
100
±20
370
150
-55 to +150
Units
V
d
A
Diode Continous Forward Current
Diode Continous Forward Current
Maximum Repetitive Forward Current
Gate-to-Emitter Voltage
Maximum Power Dissipation
Maximum Power Dissipation
Operating Junction and
Storage Temperature Range
Soldering Temperature for 10 sec.
Mounting Torque, 6-32 or M3 Screw
e
V
W
°C
300 (0.063 in. (1.6mm) from case)
10 lbf·in (1.1 N·m)
Thermal Resistance
Parameter
R
θJC
(IGBT)
R
θJC
(Diode)
R
θCS
R
θJA
Thermal Resistance Junction-to-Case-(each IGBT)
Thermal Resistance Junction-to-Case-(each Diode)
Thermal Resistance, Case-to-Sink (flat, greased surface)
Thermal Resistance, Junction-to-Ambient (typical socket mount)
Weight
Min.
–––
–––
–––
–––
–––
Typ.
–––
–––
0.50
–––
6.0 (0.21)
Max.
0.34
0.64
–––
40
–––
Units
°C/W
g (oz)
12/1/04
1
www.irf.com
