AM26LS32ID datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS32ID

AM26LS32ID: DescriptionIC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size95KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

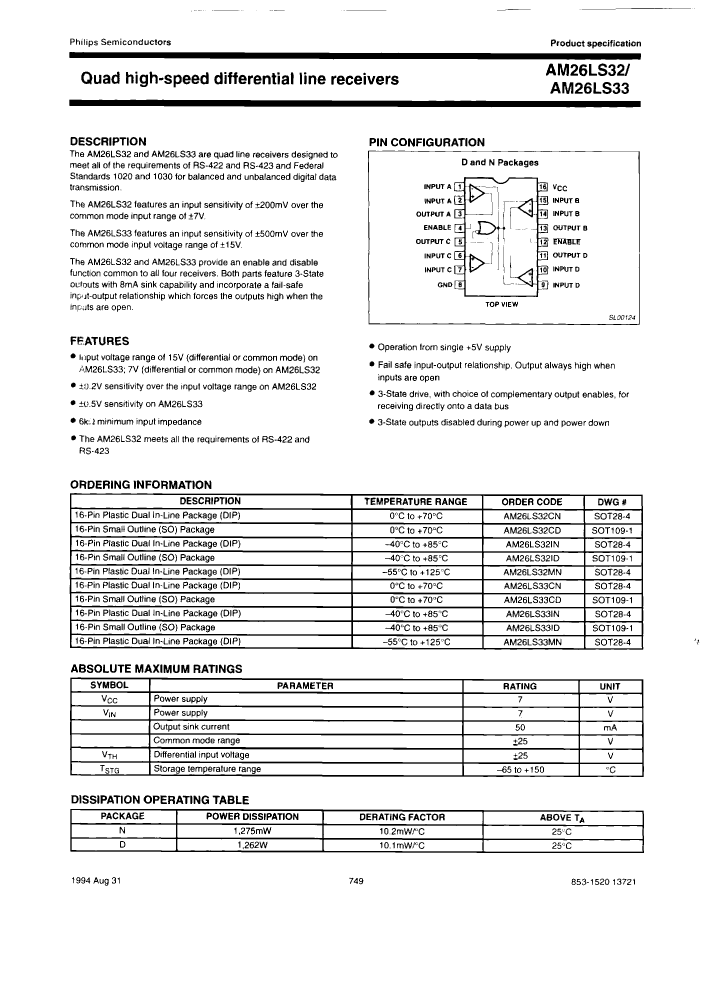

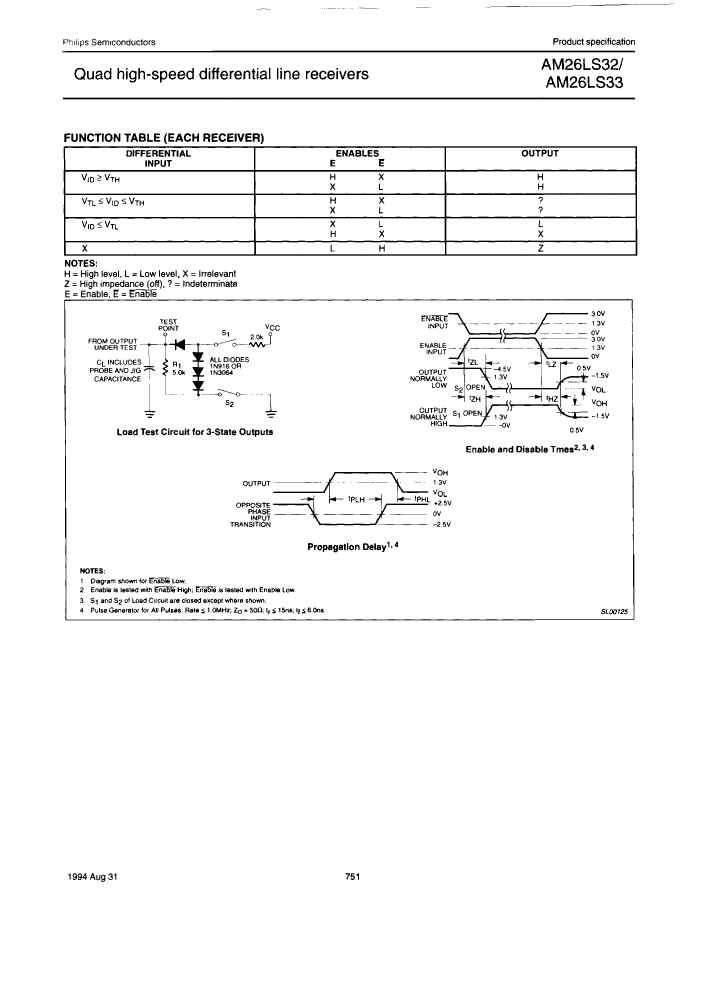

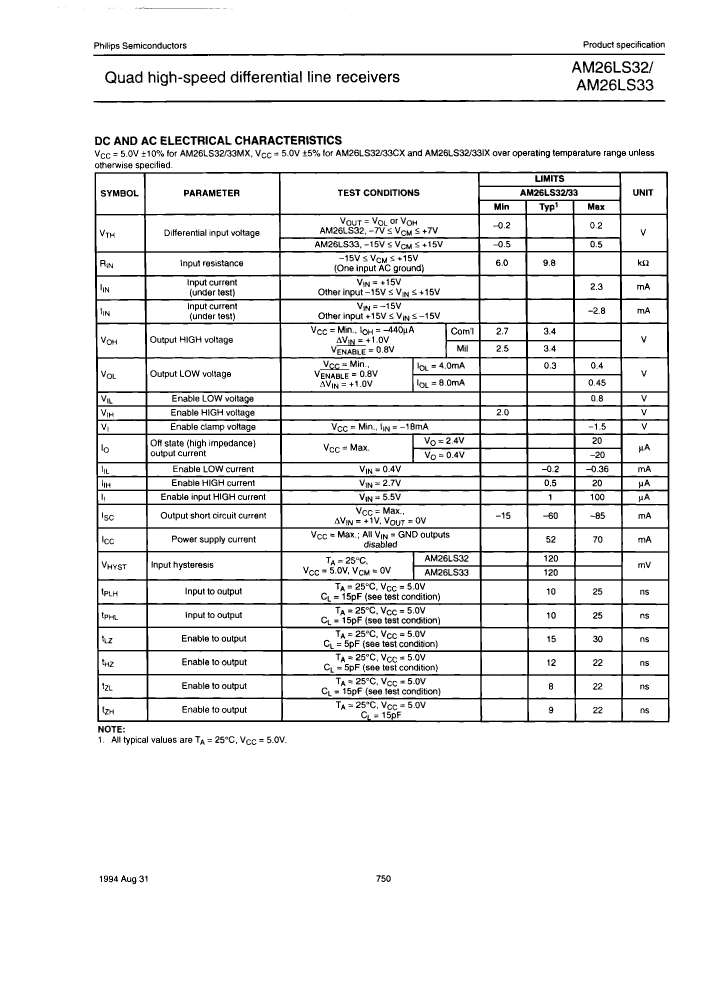

AM26LS32ID Overview

IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver

AM26LS32ID Parametric

Parameter Name	Attribute value
package instruction	SOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDSO-G16
length	9.9 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum receive delay	25 ns
Number of receiver bits	4
Maximum seat height	1.75 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

AM26LS32ID Related Products

	AM26LS32ID	AM26LS32MN	AM26LS32CN	AM26LS32IN	AM26LS32CD	AM26LS33CD	AM26LS33ID	AM26LS33MN	AM26LS33CN	AM26LS33IN
Description	IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, SOT-28-4, DIP-16, Line Driver or Receiver
package instruction	SOP,	DIP,	DIP,	DIP,	SOP,	SOP,	SOP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16
length	9.9 mm	19.025 mm	19.025 mm	19.025 mm	9.9 mm	9.9 mm	9.9 mm	19.025 mm	19.025 mm	19.025 mm
Number of functions	4	4	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	125 °C	70 °C	85 °C	70 °C	70 °C	85 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-	-40 °C	-	-	-40 °C	-55 °C	-	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	SOP	SOP	SOP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Number of receiver bits	4	4	4	4	4	4	4	4	4	4
Maximum seat height	1.75 mm	4.2 mm	4.2 mm	4.2 mm	1.75 mm	1.75 mm	1.75 mm	4.2 mm	4.2 mm	4.2 mm
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	MILITARY	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	MILITARY	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	7.62 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Parts packaging code	-	DIP	DIP	DIP	-	-	-	DIP	DIP	DIP
Contacts	-	16	16	16	-	-	-	16	16	16
