BYD74D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYD74D

BYD74D: Description2.4A, 200V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size219KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BYD74D Overview

2.4A, 200V, SILICON, RECTIFIER DIODE

BYD74D Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
application	VERY FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.94 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	2.4 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	1 µA
Maximum reverse recovery time	0.025 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

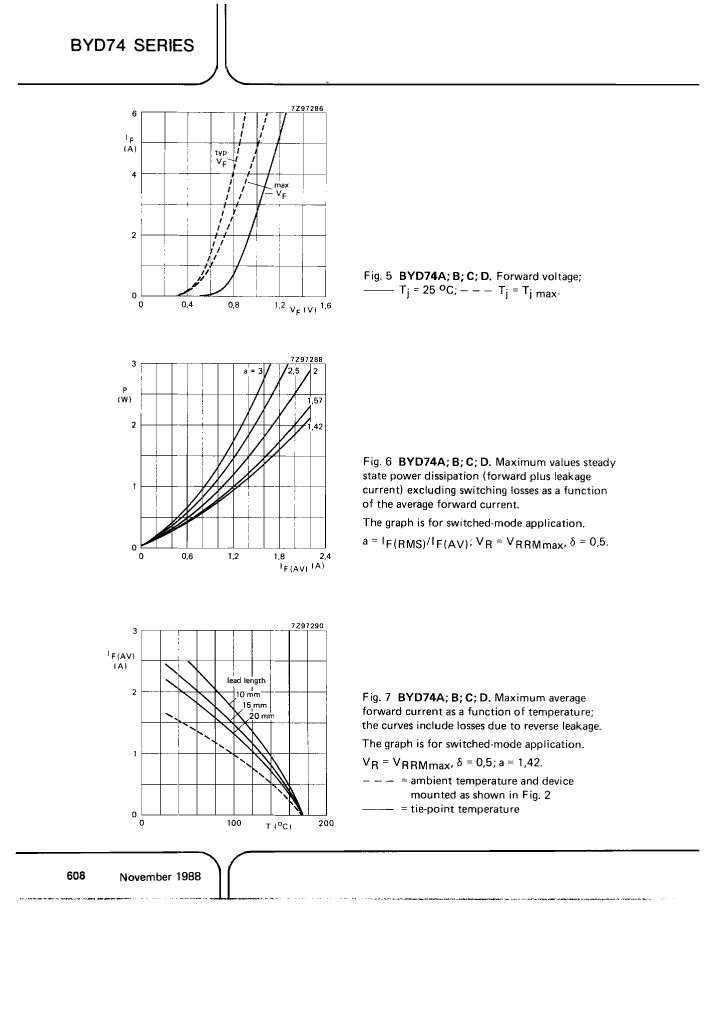

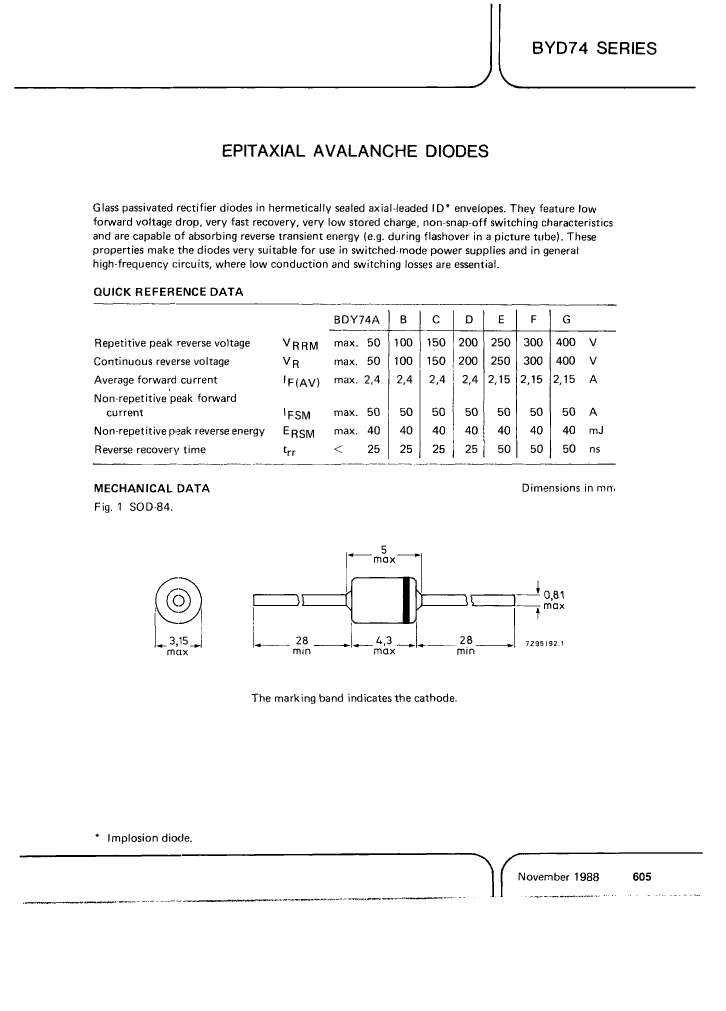

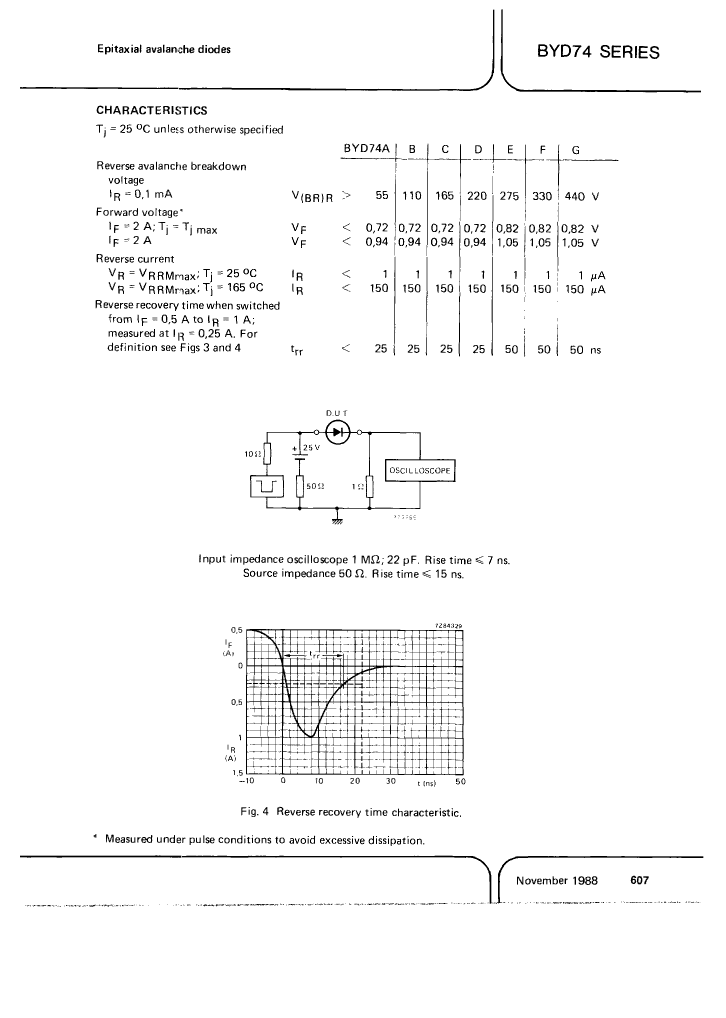

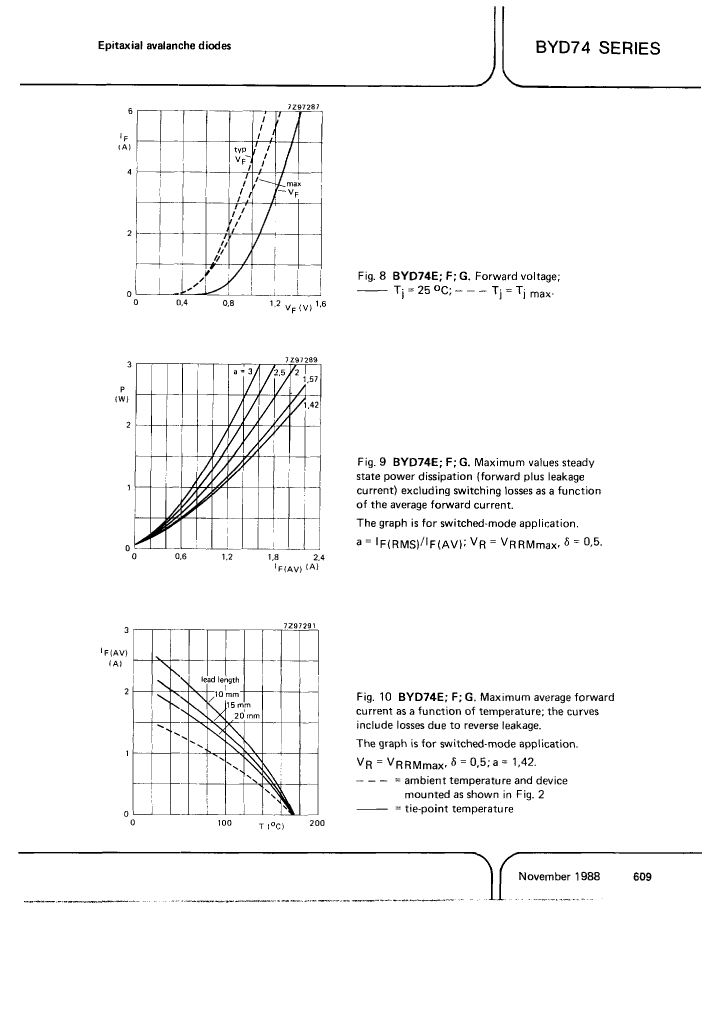

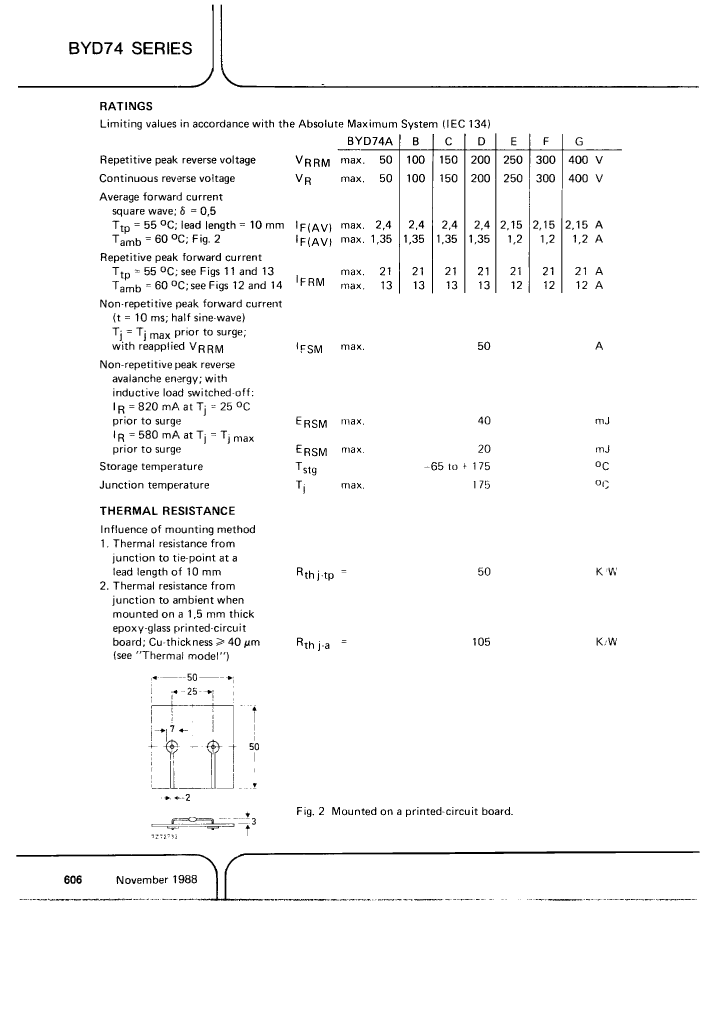

Preview

Download Datasheet

View All

BYD74D Related Products

	BYD74D	BYD74A	BYD74E	BYD74G	BYD74B	BYD74C	BYD74F
Description	2.4A, 200V, SILICON, RECTIFIER DIODE	2.4A, 50V, SILICON, RECTIFIER DIODE	DIODE 2.15 A, 250 V, SILICON, RECTIFIER DIODE, Rectifier Diode	2.15A, 400V, SILICON, RECTIFIER DIODE	2.4A, 100V, SILICON, RECTIFIER DIODE	2.4A, 150V, SILICON, RECTIFIER DIODE	2.15A, 300V, SILICON, RECTIFIER DIODE
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY	VERY FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.94 V	0.94 V	1.05 V	1.05 V	0.94 V	0.94 V	1.05 V
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	2.4 A	2.4 A	2.15 A	2.15 A	2.4 A	2.4 A	2.15 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	50 V	250 V	400 V	100 V	150 V	300 V
Maximum reverse current	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA
Maximum reverse recovery time	0.025 µs	0.025 µs	0.05 µs	0.05 µs	0.025 µs	0.025 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	-	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maker	-	NXP	NXP	-	-	NXP	NXP
