RLS664-29GG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> RLS664-29GG

RLS664-29GG: DescriptionIC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size191KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

RLS664-29GG Overview

IC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT

RLS664-29GG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER/COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	DIP64
Shell material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

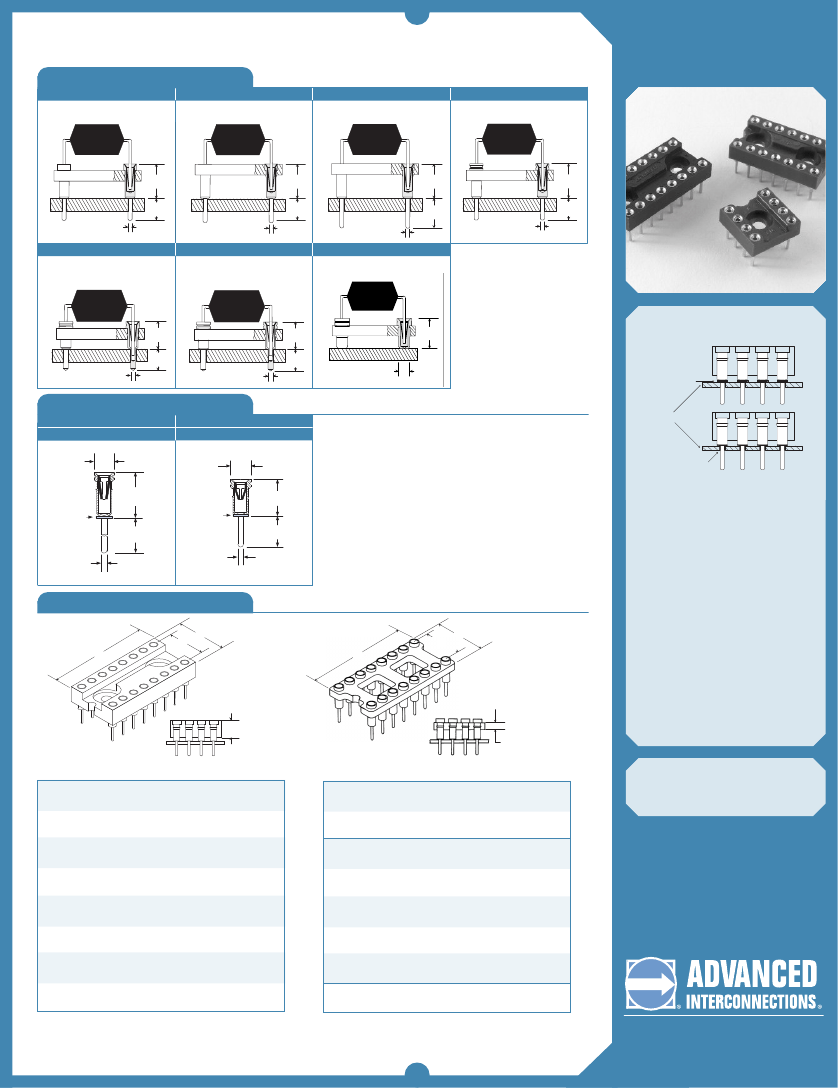

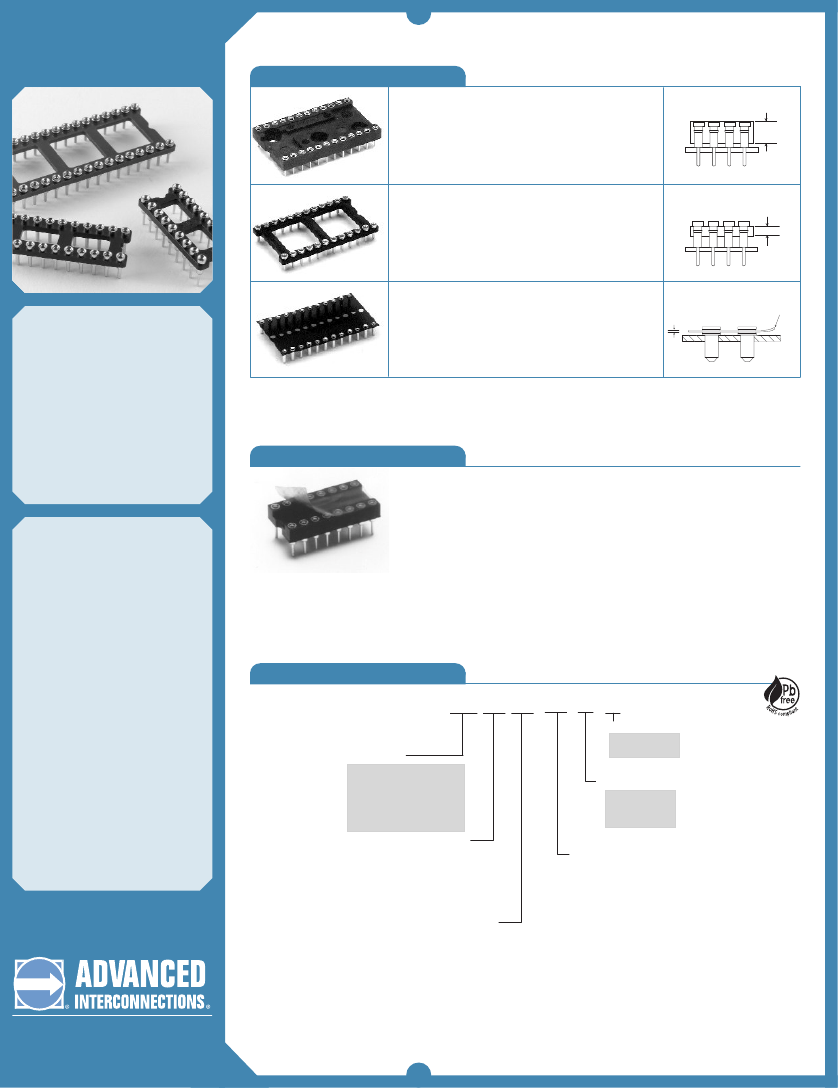

DIP Sockets

Table of Models

Molded DIP Sockets

Closed Frame and Open Frame

Description:

Closed Frame (RDS)

Material: High Temp. Liquid Crystal Polymer

(LCP)

Index: -40°C to 260°C (-40°F to 500°F)

.125

(3.18)

Description:

Open Frame (RLS)

Material: High Temp. Liquid Crystal Polymer

(LCP)

Index: -40°C to 260°C (-40°F to 500°F)

.050

(1.27)

Features:

• Multiple finger contact on all

sockets assures maximum

reliability.

• Tapered entry for ease of insertion.

• Closed bottom sleeve for 100%

anti-wicking of solder.

• To fit .100/(2.54mm) pitch.

• Easily customized to fit your

application.

Description:

Peel-A-Way

(KS)

Material: Polyimide Film

Index: -269°C to 400°C (-452°F to 752°F)

For more information, refer to the Peel-A-Way

DIP Sockets pages.

RDS replaces DS and HDS.

RLS replaces LS and HLS.

.005

(.13)

Polyimide

Film

Options

Tape Sealant - add 3M to end of part number

• Removable tape seal protects plated contact in harsh environments

• Sealed socket will not allow dirt and other contaminants to enter

socket chamber and become entrapped behind contact fingers

• Spray flux without contaminating contact area

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Contacts:

Beryllium Copper - Copper Alloy

(C17200) ASTM-B-194

Solder Preform:

Standard: 63Sn/37Pb

Lead-free: 95.5Sn/4.0Ag/0.5Cu

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per MIL-G-45204

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

Material

Silicone Backed Polyimide Film, -74°C to 260°C (-100°F to 500°F)

Intermittent to 371°C (700°F)

How To Order

RDS 3

16 - 01

Contact Plating

RoHS Compliant:

Body Type

RoHS Compliant:

G - Gold

T - Tin/Lead

Terminal Plating

RoHS Compliant:

RDS - New Hi-Temp

Closed Frame Molded

RLS - New Hi-Temp

Open Frame Molded

DIP Spacing

3 - .300/(7.62mm)

4 - .400/(10.16mm)

6 - .600/(15.24mm)

9 - .900/(22.86mm)*

*Open Frame only

G - Gold

M - Matte Tin

T - Tin/Lead

Terminal Type

See options on next page

Number of Pins

Closed Frame 8 - 40

Open Frame 8 - 64

Note: Terminals plated with Matte Tin are available only with Gold plated contacts.

Quick-Turn delivery is not available on products with Matte Tin plating.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

CAT16-PREVIEW06 Rev. 1/06

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
