346-93-108-41-035 Overview

PCB connectors 2.54 mm Single row / Double row Press-fit

Preview

Download Datasheet

View All

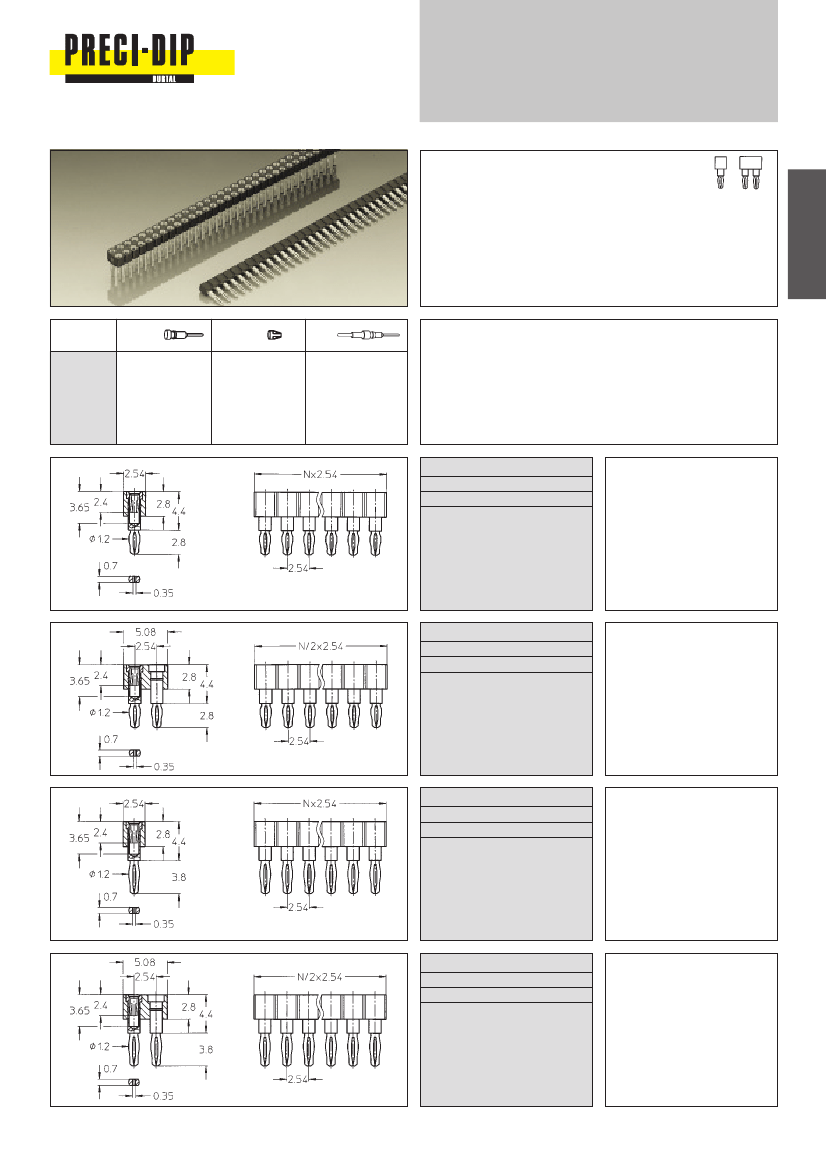

Series 346 / 446

PCB connectors 2.54 mm

Single row / Double row

Press-fit

Receptacles, press-fit

For solderless mount into PCB, plated-thru holes,

for pins

∅

0.40–0.56 mm

For corresponding pin connectors see pages 43 to 46

New version with modified eye of the needle pin

Platings

Sleeve

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.25

µm

0.75

µm

Sn Pb

Ordering information

Replace

with the number of poles, e.g. 346-93-1xx-41-035

for a single row version with 8 pins becomes:

346-93-108-41-035

(Older versions 346/446-..-...-41-012/013/019 please consult)

346-91-1xx-41-036

346-93-1xx-41-036

346-99-1xx-41-036

Press-fit receptacle connector:

single row, compliant pin

for plated-thru hole

∅

1 (+ 0.09/– 0.06) mm

Availability from: 1 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

For PCB thickness 1.5 to 2.0 mm

446-91-2xx-41-036

446-93-2xx-41-036

446-99-2xx-41-036

Press-fit receptacle connector:

double row, compliant pin

for plated-thru hole

∅

1 (+ 0.09/– 0.06) mm

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

For PCB thickness 1.5 to 2.0 mm

346-91-1xx-41-035

346-93-1xx-41-035

346-99-1xx-41-035

Press-fit receptacle connector:

single row, compliant pin

for plated-thru hole

∅

1 (+ 0.09/– 0.06) mm

Availability from: 1 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

For PCB thickness 2.1 to 3.2 mm

446-91-2xx-41-035

446-93-2xx-41-035

446-99-2xx-41-035

Press-fit receptacle connector:

double row, compliant pin

for plated-thru hole

∅

1 (+ 0.09/– 0.06) mm

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

For PCB thickness 2.1 to 3.2 mm
