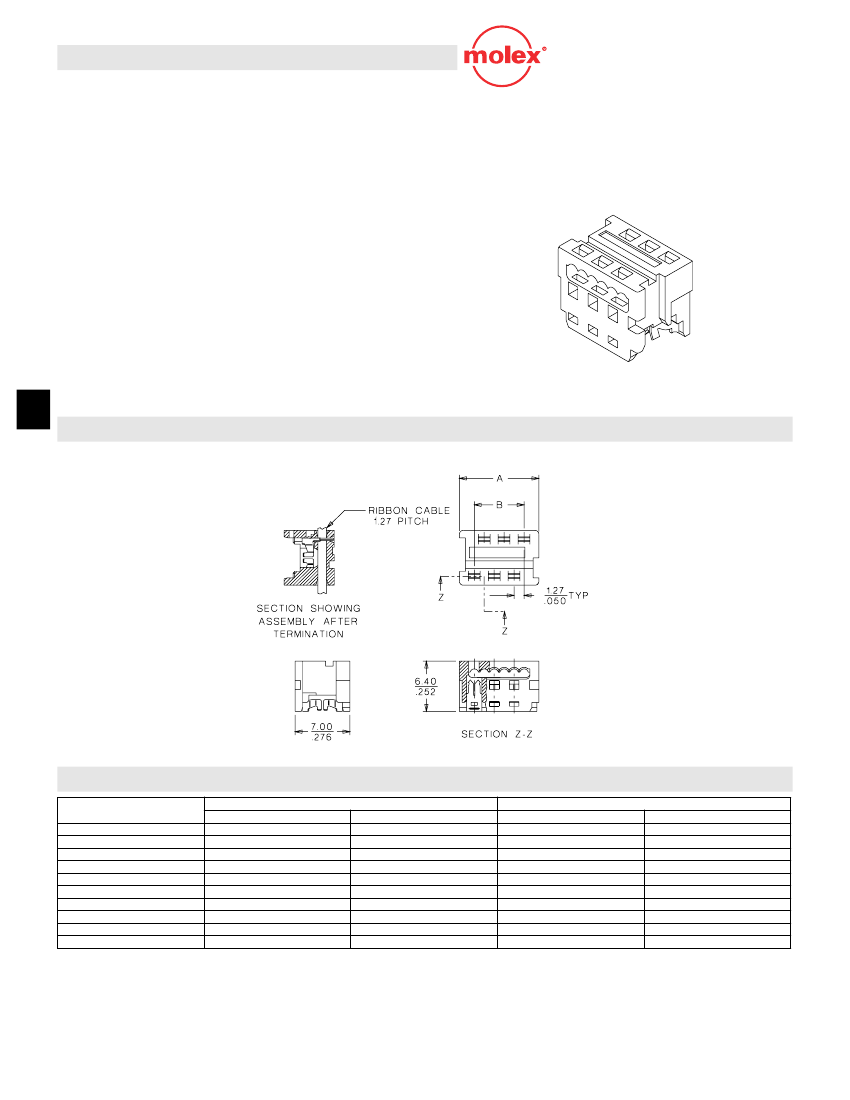

FEATURES AND SPECIFICATIONS
Features and Benefits
s
1-piece housing assures precise positioning of cable
s
Molded-in polarization
s
4 points of contact with ribbon cable
s
Preloaded contacts
s
Accepts 28 or 26 AWG (7 strand) ribbon cable
s
Tape option for high-speed termination, contact Molex
for part numbers
Reference Information
Product Specification: PS-99020-0011
Packaging: Bag (tape optional)
Tooling Information: See end of section
UL File No.: E29179
CSA File No.: LR19980-181
Mates With: 90325, 90715, 90779, 90800 and 90814
Use Molex Cable: 6800, 8863 and 40158
Designed In: Millimeters
Electrical
Voltage: 250V
Current: 1.2A
Contact Resistance: 15m
Ω
max.
Dielectric Withstanding Voltage: 750V rms
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Mating Force: 1.7N Tin/Lead and 1.1N Gold
Unmating Force: 0.25N Tin/Lead and 0.25N Gold
Durability: 30 cycles max. Tin/Lead and 100 cycles
max. Gold (using extraction tool)
Physical
Housing: White polyester, UL 94V-0
Contact: Phosphor Bronze Alloy
Plating: See Table
Operating Temperature: -40 to +105˚C
Cable Accommodation: 26 and 28 AWG stranded
1.27mm (.050") Pitch
Picoflex
™
PF-50
Connector
90327
Low Profile, IDT
H
Ribbon Cable Systems

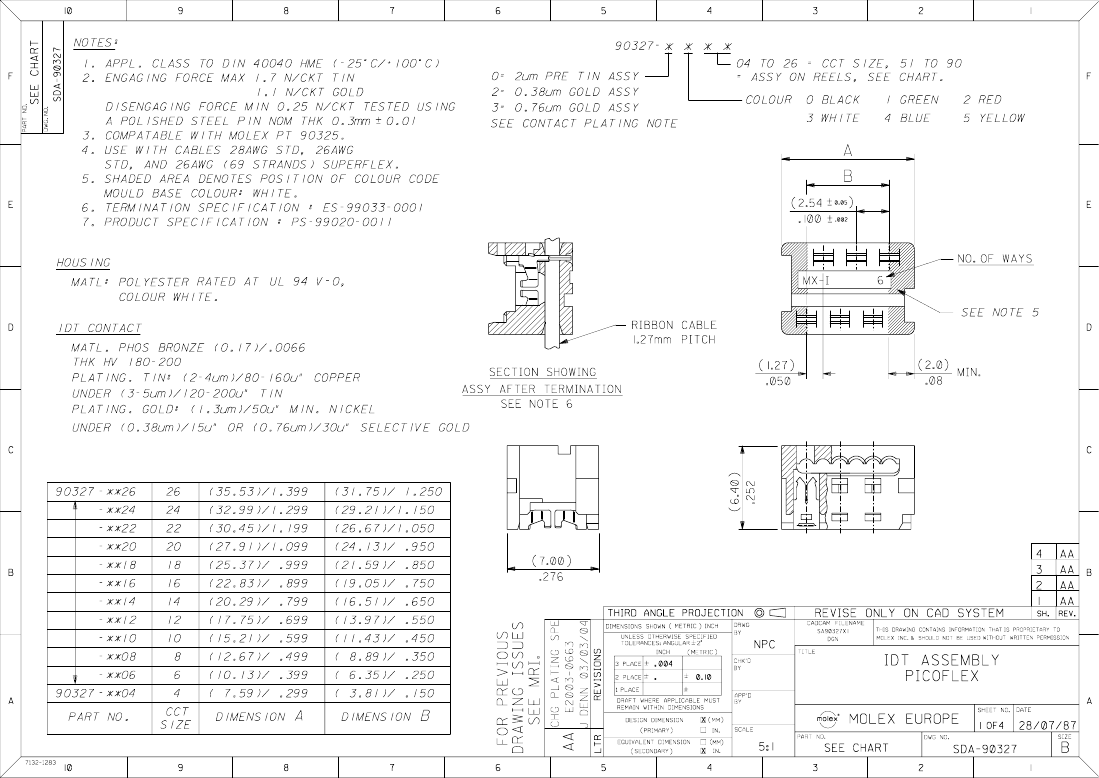

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
4
6
8
10
12
14
16
18
20
26
Plating 1: 3-6
µ
m (120-240
µ
") Tin/Lead
Plating 2: 0.76
µ
m (30
µ
") Select Gold
Order No.
Plating 1
90327-0304
90327-0306
90327-0308
90327-0310
90327-0312
90327-0314
90327-0316
90327-0318
90327-0320
90327-0326
Plating 2
90327-3304
90327-3306
90327-3308
90327-3310
90327-3312
90327-3314
90327-3316
90327-3318
90327-3320
90327-3326
7.59
10.13
12.67
15.21
17.75
20.29
22.83
25.37
27.91
35.53
A
(.299)
(.399)
(.499)
(.599)
(.699)
(.799)
(.899)
(.999)
(1.099)
(1.399)
Dimension
3.81
6.35
8.89
11.43
13.97
16.51
19.05
21.59
24.13
31.75
B
(.150)
(.250)
(.350)
(.450)
(.550)
(.650)
(.750)
(.850)
(.950)
(1.250)
H-2
MX01
