77-SD-A-9-S-OL2-RM5 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 77-SD-A-9-S-OL2-RM5

77-SD-A-9-S-OL2-RM5: DescriptionD Type Connector, 9 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .125-.137, Receptacle; CategoryThe connector The connector; File Size570KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

77-SD-A-9-S-OL2-RM5 Overview

D Type Connector, 9 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .125-.137, Receptacle

77-SD-A-9-S-OL2-RM5 Parametric

Parameter Name	Attribute value
Objectid	315830355
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.534 inch
subject depth	0.244 inch
body length	1.21 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	SD
Plug contact pitch	0.108 inch
Match contact row spacing	0.078 inch
Installation option 1	HOLE .125-.137
Installation option 2	RIVET
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.173 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

Stamped And Formed Contacts

Solder-Cup And Straight PCB Termination

Standards:

UL File:

E149426

Connectors according to:

MIL C24308 - NFC 93425-HE5

SD S

ERIES

PECIFICATIONS

ATERIALS

Shells

Insulator

Pin Contact

Socket Contact

Rear Insert

Boardlock

Screwlock

AND

LATINGS

Steel

Glass-ﬁlled thermoplastic, UL 94V-0

Brass, selected gold in mating area;

100µ" (2.54µm) min. tin-lead on

termination area over 50µ" (1.27µm) min.nickel

Phosphor bronze, selected gold in mating area;

100µ" (2.54µ) min. tin-lead on termination area

over 50µ" (1.27µm) min. nickel

Brass, 100µ" (2.54µm) min. nickel plated

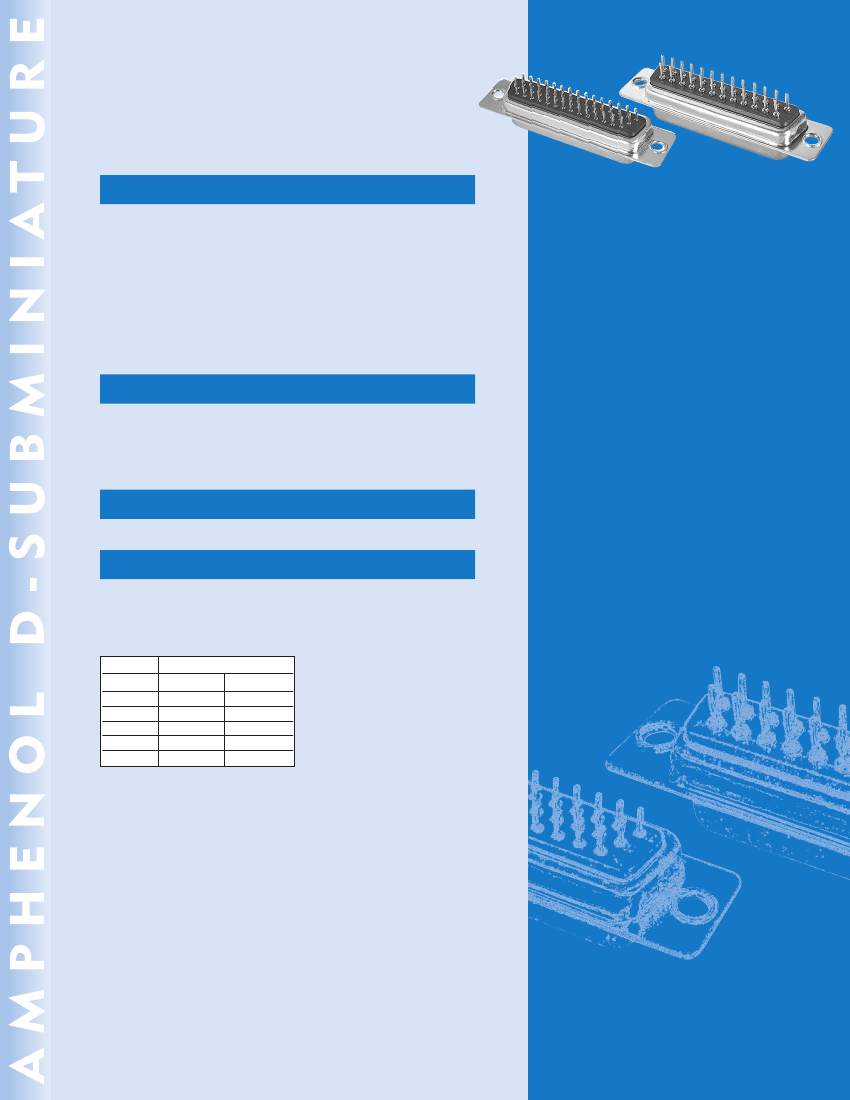

Amphenol’s SD series, features

precision stamped and formed

contacts with closed entry contact

cavities in insulator.

This series provides Amphenol’s

high standard of quality and

reliability, to meet all of your

commercial requirements.

LECTRICAL

ATA

Current Rating

Voltage Rating

Withstanding Voltage

Insulation Resistance

Contact Resistance

Standard Density: 5A per contact

250V AC/ rms 50Hz

1000V AC/ rms 50Hz for one minute

1000MΩ at 500V DC

20 mΩ max.

• Industrial

• Telecom

• Any industry standard

I / O connections

LIMATIC

ATA

Operating Temperature

-67°F (-55°C) to +257°F (125°C)

ECHANICAL

ATA

Single Contact Insertion Force

Single Contact Withdrawal Force

Mating and Unmating Force

Unit: lb. (kg.)

No. of Pos

Mate (max.)

3.05

5.09

8.44

12.51

14.65

(6.74)

(11.24)

(18.66)

(27.65)

(32.38)

Unmate (min.)

0.36

0.46

0.81

1.1

1.6

(0.79)

(1.01)

(1.8)

(2.47)

(3.56)

1.19 lb. (0.54 kg.) max.

0.13 lb. (0.06 kg.) min.

Standard plating thicknesses

• gold ﬂash

• 15µ" (0.381µm) gold

• 30µ" (0.76 µm) gold

NCHES

(

)

ELEPHONE

: (416) 754-5656 F

: (416) 754-8668

E-M

AIL

SALES

AMPHENOLCANADA

COM
