N74F8961N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74F8961N

N74F8961N: DescriptionRegistered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PDIP28; Categorylogic logic; File Size305KB，11 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

N74F8961N Overview

Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PDIP28

N74F8961N Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS
series	F/FAST
JESD-30 code	R-PDIP-T28
Load capacitance (CL)	30 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	145 mA
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

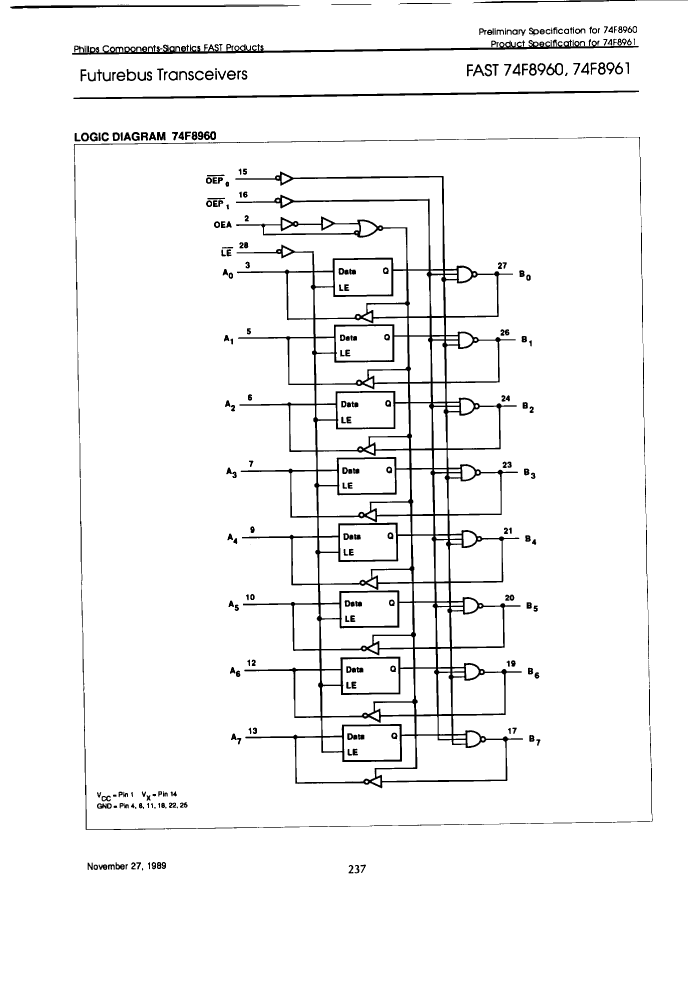

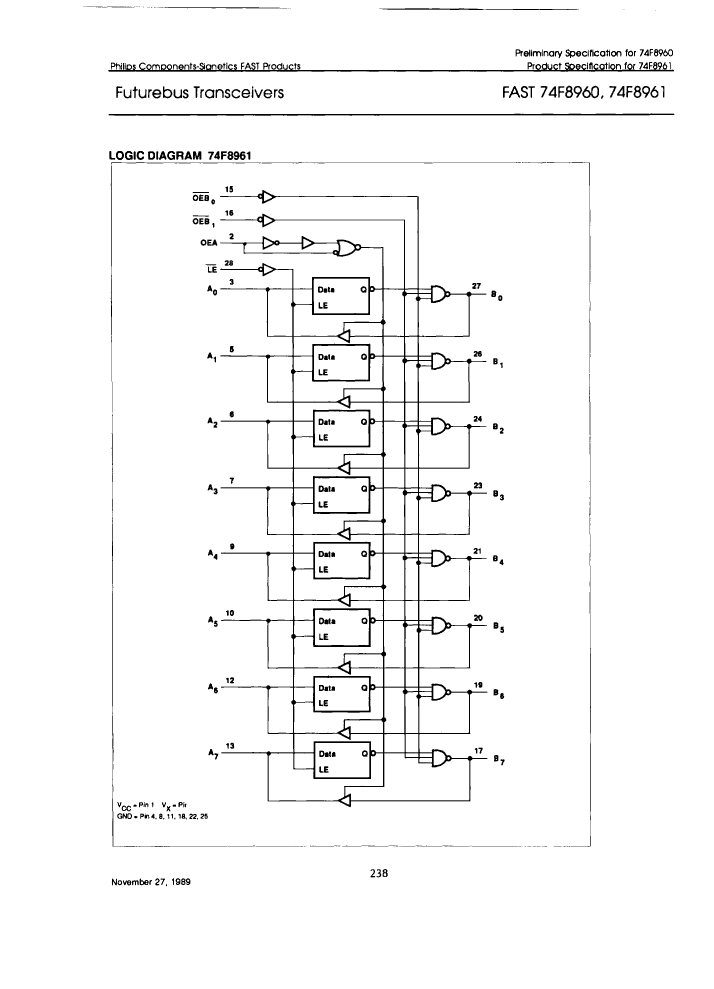

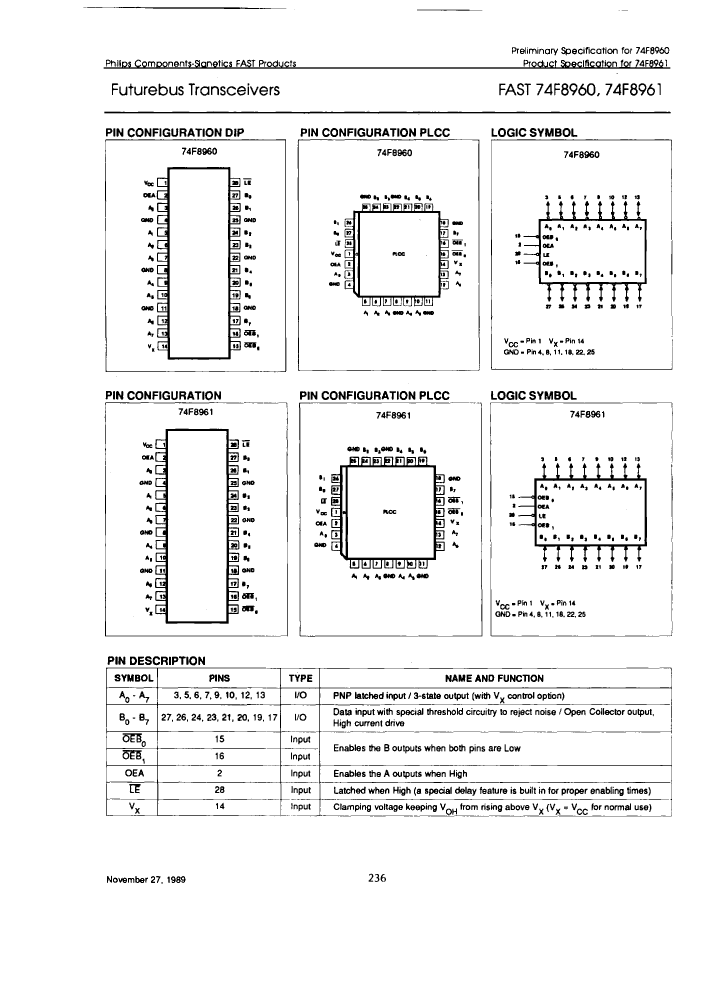

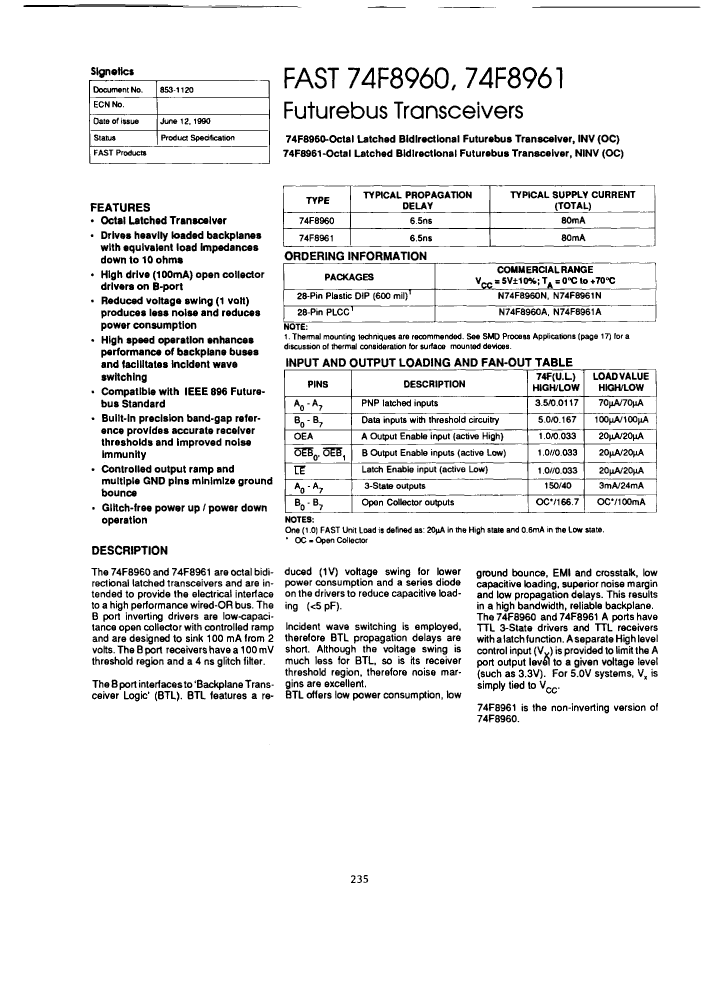

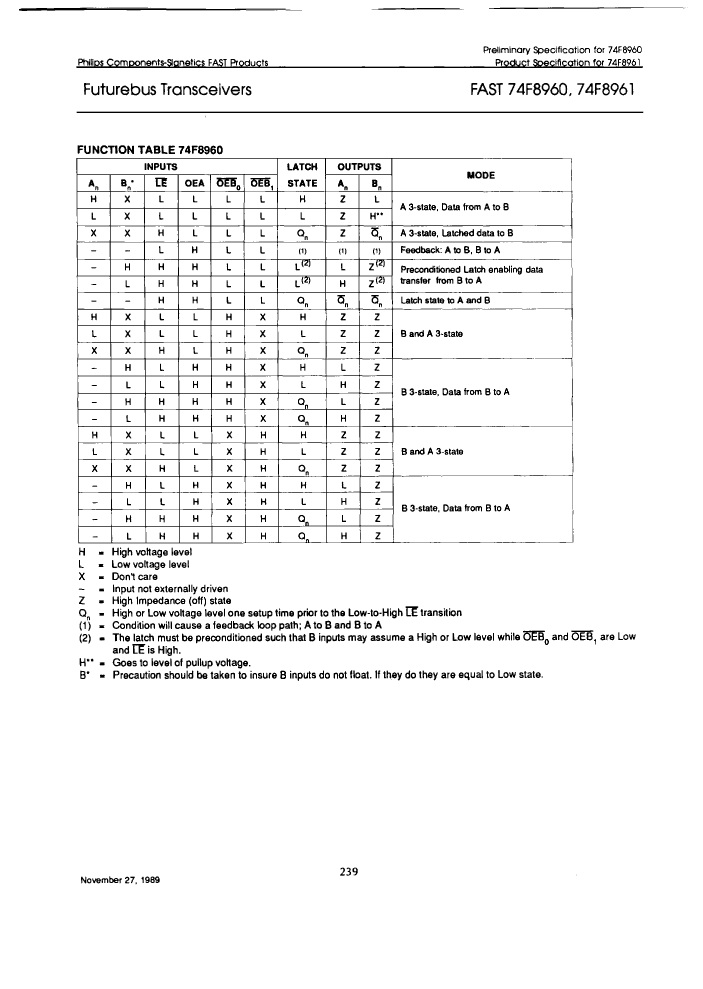

Preview

Download Datasheet

View All

N74F8961N Related Products

	N74F8961N	N74F8960N	N74F8960D	N74F8960D-T	N74F8961D	N74F8961D-T
Description	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PDIP28	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP28	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PQCC28	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PQCC28	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PQCC28	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PQCC28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS	WITH DESIGNATED TTL AND BTL PORTS; COMPATIBLE WITH IEEE FUTURE BUS STANDARDS
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDIP-T28	R-PDIP-T28	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND	J BEND
Terminal location	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD
Maker	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
