SN74ALS27DR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74ALS27DR

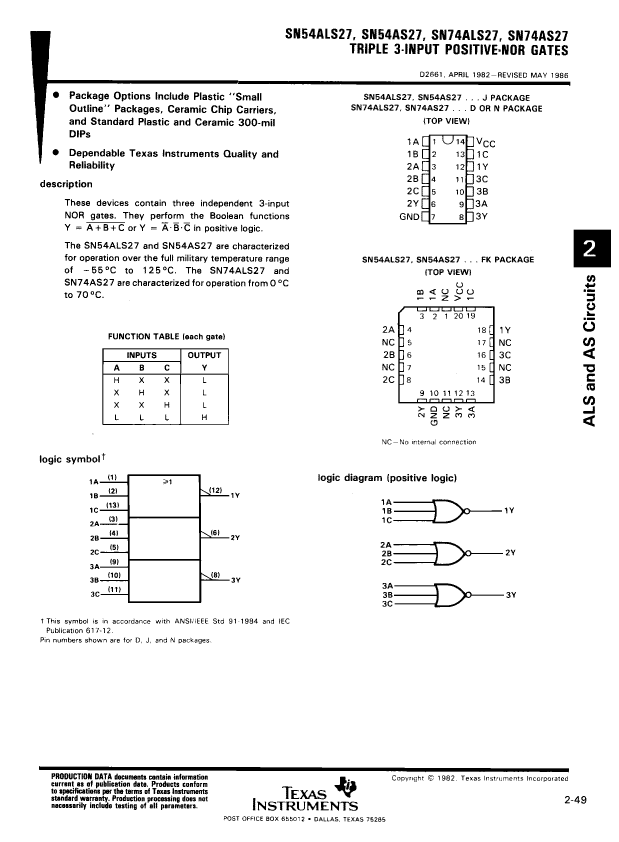

SN74ALS27DR: DescriptionALS SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14; Categorylogic logic; File Size767KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74ALS27DR Overview

ALS SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14

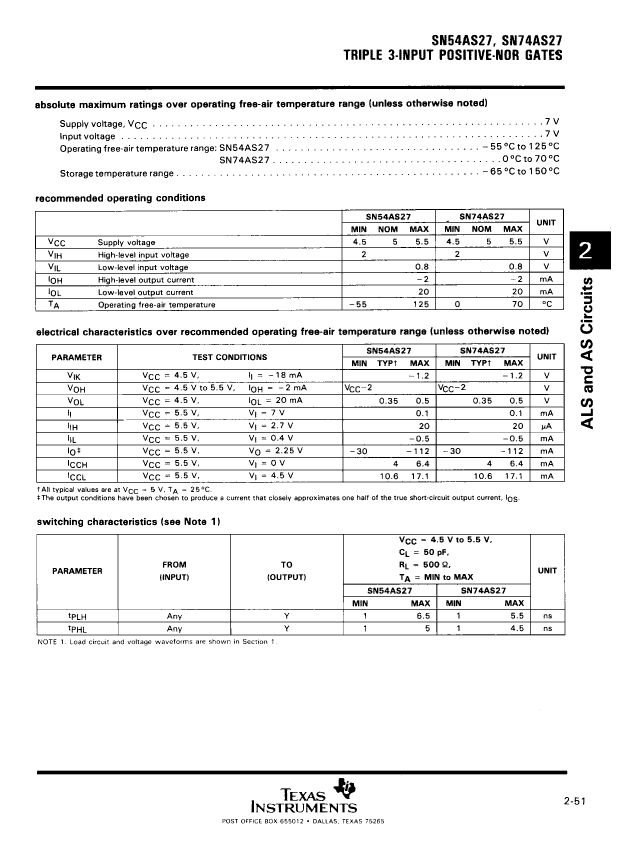

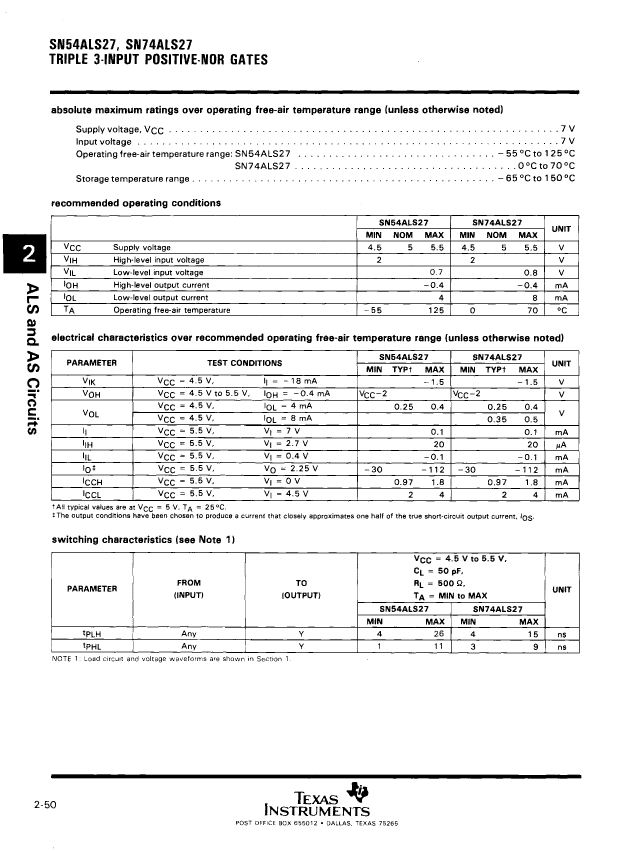

SN74ALS27DR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SOP,
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	9 ns
Certification status	COMMERCIAL
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1
