Part Number

Search

579L400ITT

Description
HCMOS Output Clock Oscillator,
CategoryPassive components    oscillator
File Size295KB,3 Pages
ManufacturerCTS
Environmental Compliance
Download Datasheet Parametric View All

579L400ITT Online Shopping

Suppliers Part Number Price MOQ In stock
579L400ITT - - View Buy Now

579L400ITT Overview

HCMOS Output Clock Oscillator,

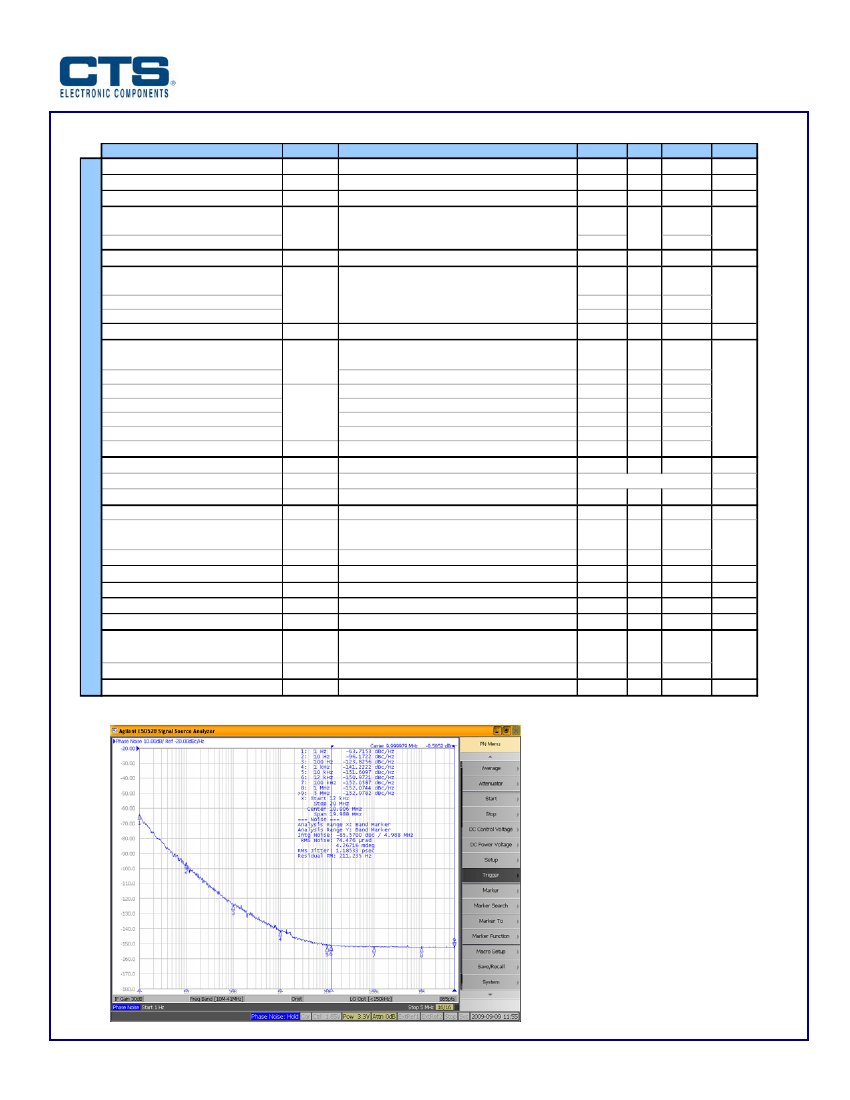

579L400ITT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
Ageing2.8 PPM/20 YEARS
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability0.28%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Nominal operating frequency40 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeHCMOS
Output load15 pF

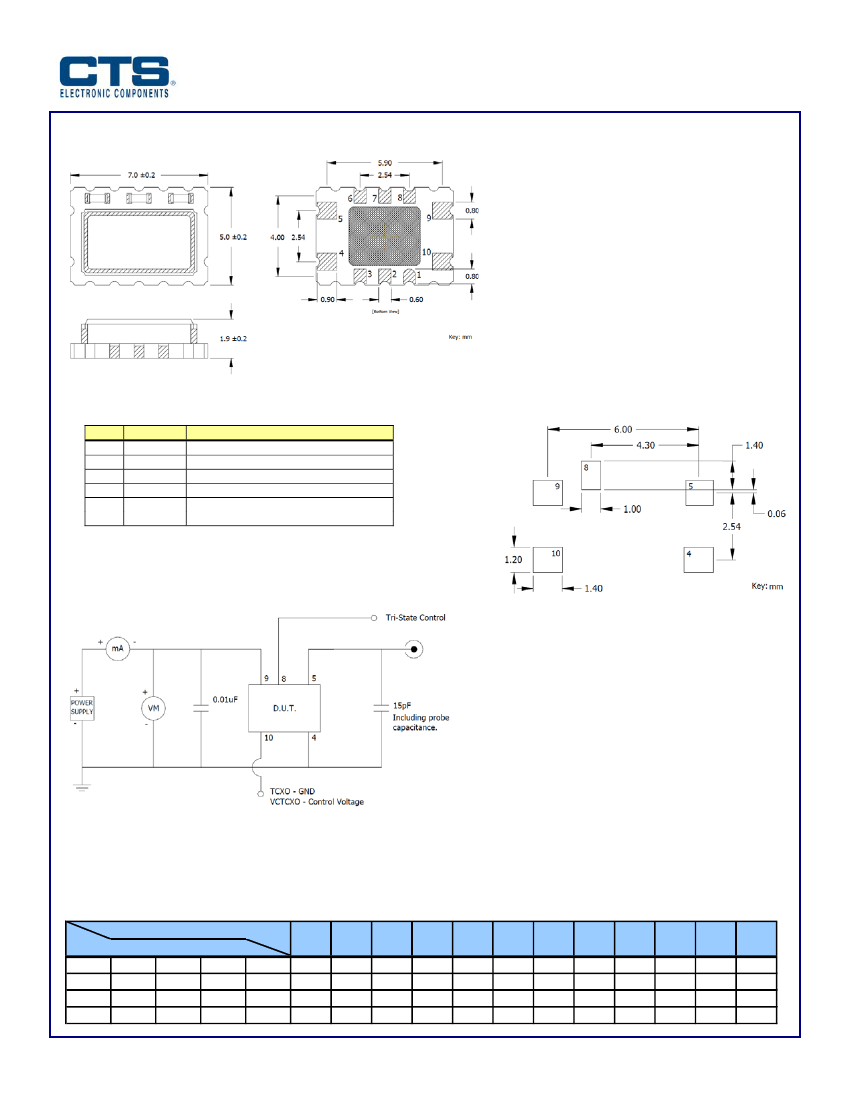

physical size7.0mm x 5.0mm x 1.9mm
longest rise time6 ns
Maximum supply voltage3.47 V
Minimum supply voltage3.14 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Base Number Matches1

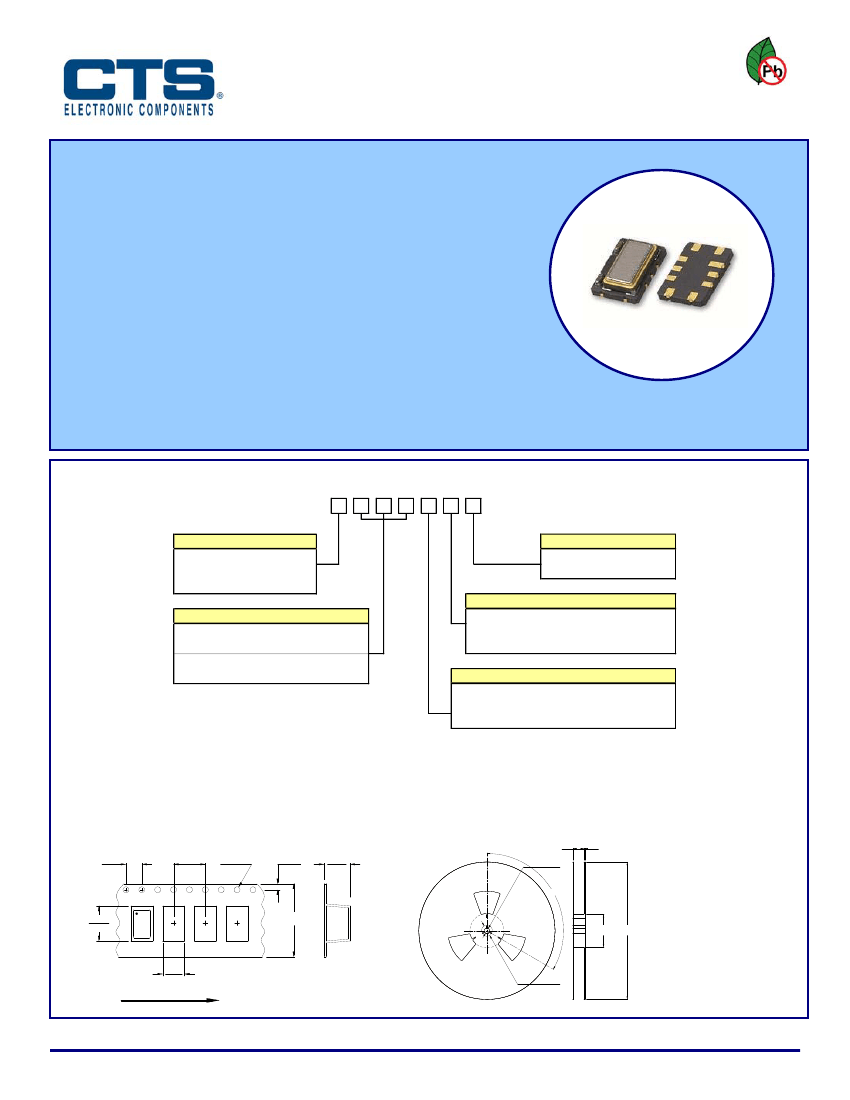

Model 579
Stratum 3
Temperature Compensated Crystal Oscillator
FEATURES
HCMOS Output
Optional Voltage Control for Frequency Tuning [VCTCXO]
7.0mmx5.0mm Surface Mount Package
Frequency Range 5 – 52 MHz
Fundamental Crystal Design
Operating Voltage, +3.0Vdc, +3.3Vdc or +5.0Vdc
Overall Frequency Stability ±4.6ppm
Operating Temperature to -40°C to +85°C
Tape & Reel Packaging Standard, EIA-418
RoHS/Green Compliant [6/6]
APPLICATIONS
The Model 579, a quartz based analog TCXO with HCMOS output and optional frequency tuning, is suitable for
applications requiring Stratum 3 performance such as base stations, Microcells, Femtocells, 1588 and Synchronous
Ethernet timing, wireless communications, test and measurement.
ORDERING INFORMATION
579
SUPPLY VOLTAGE
R = +3.0Vdc
L = +3.3Vdc
S = +5.0Vdc
FREQUENCY
Product Frequency Code
[3 digits]
Refer to document 016-1454-0,
Frequency Code Tables.
PACKAGING OPTIONS
T - 1k pcs./reel
FREQUENCY TUNING [AFC]
T = No AFC [TCXO]
A = ±5ppm - ±8ppm [VCTCXO]
OPERATING TEMPERATURE RANGE
C = -20°C to +70°C
I = -40°C to +85°C
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
PACKAGING INFORMATION
[reference]
Device quantity is 1k pcs. maximum per 180mm reel.
17.5
2.0
4.0
8.0
Ø1.50
1.75
2.40
2.10
Ø13
120°
8.40
7.90
16.0
Ø60
Ø180
5.70
5.40
DIRECTION OF FEED
Dimensions in Millimeters
Ø23
Dimensions in Millimeters
Document No. 008-0521-0
Page 1 - 3
Rev. B
www.ctscorp.com
