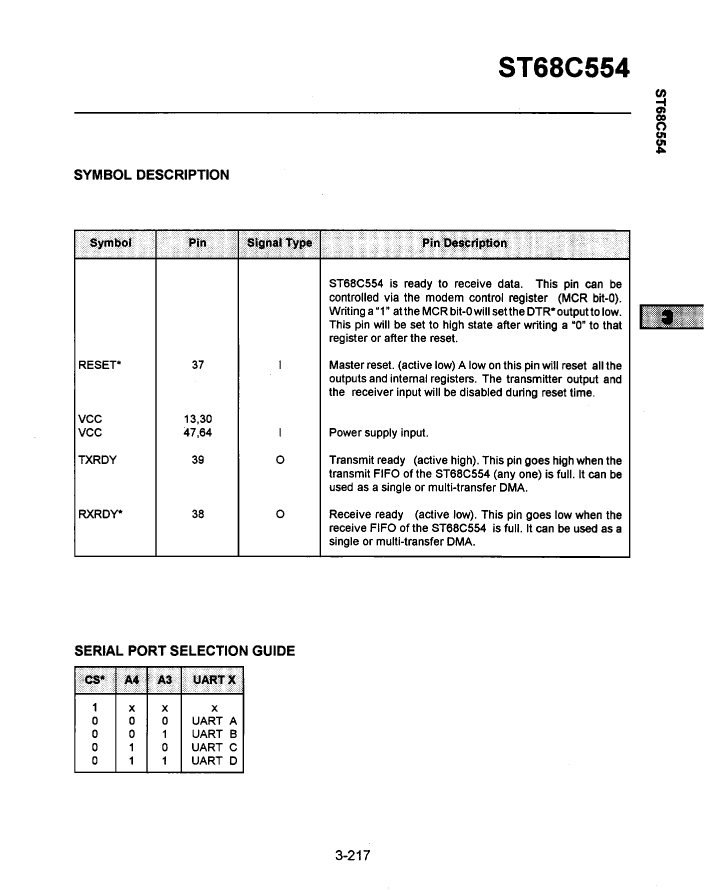

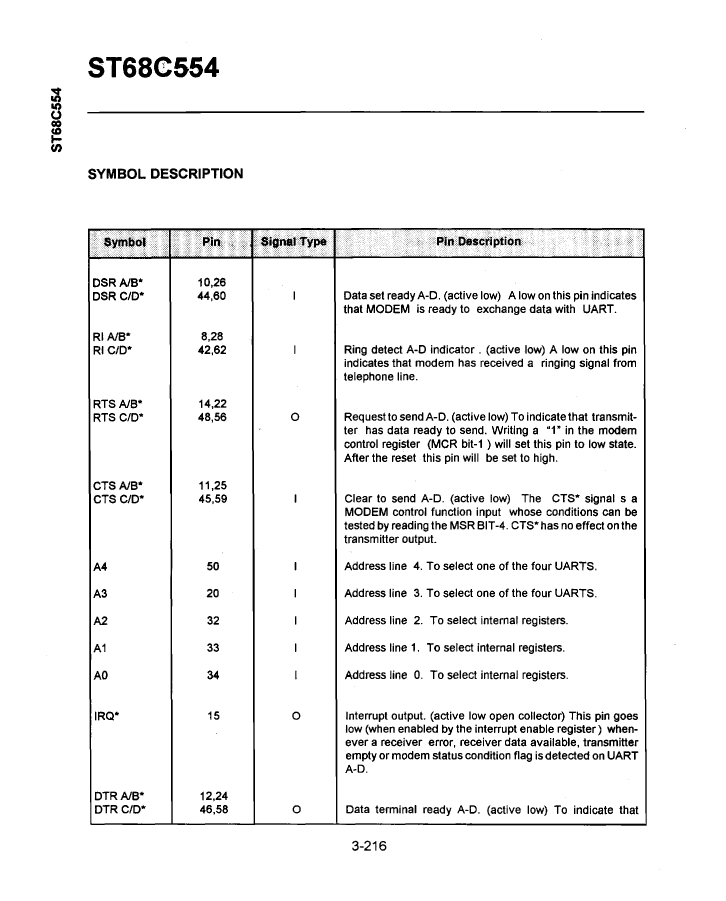

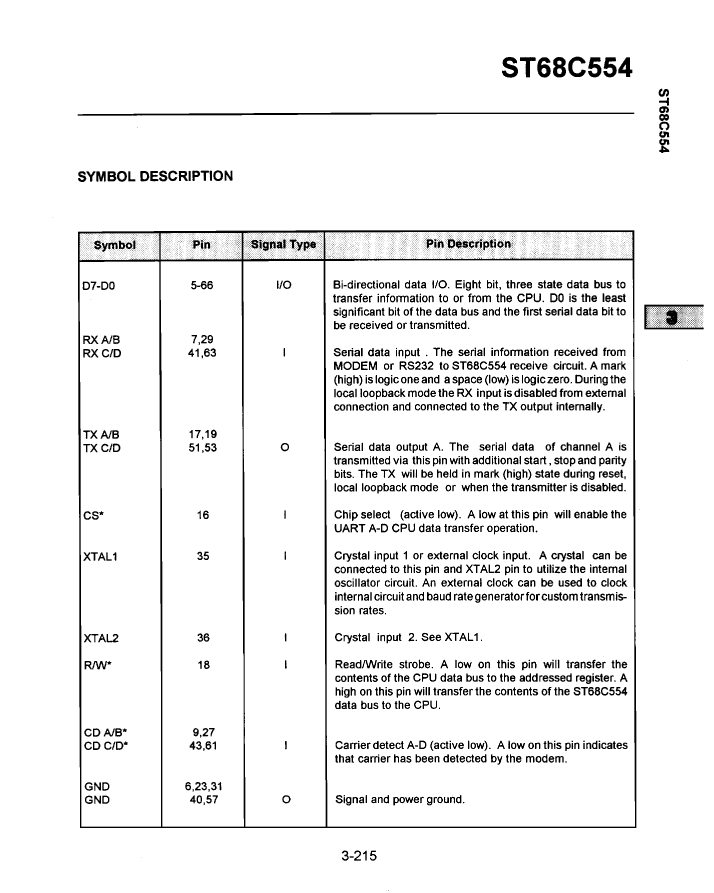

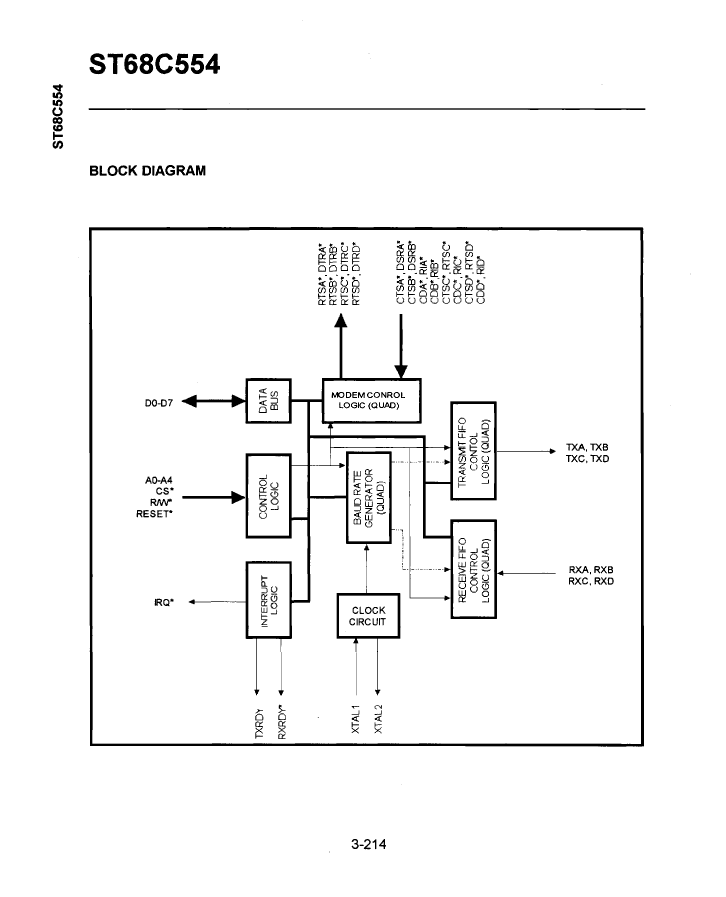

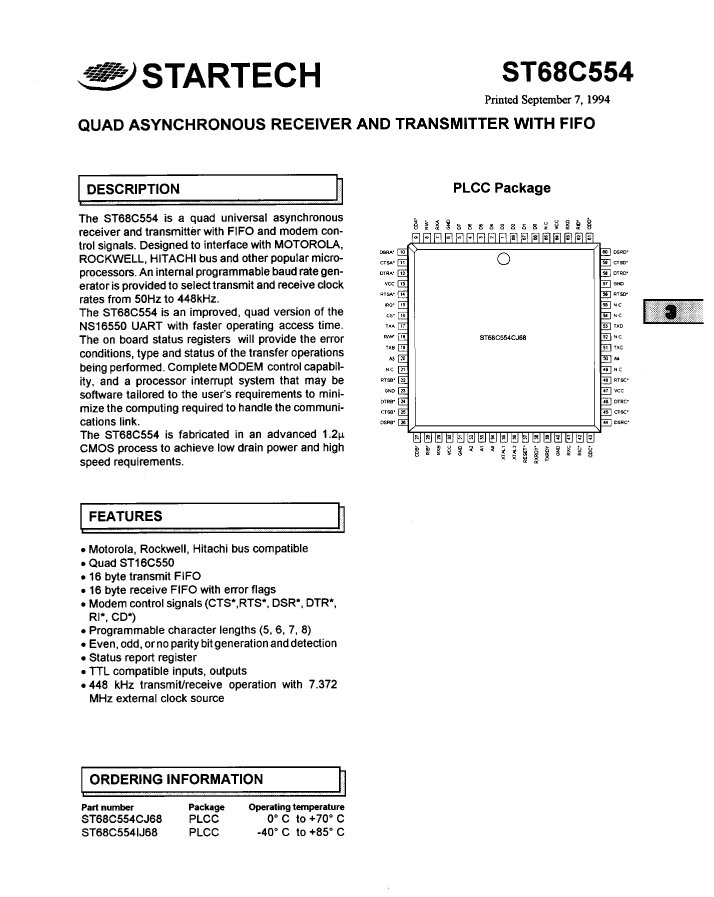

Preview

ST68C554CJ68: DescriptionSerial I/O Controller, 4 Channel(s), 0.1875MBps, CMOS, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size582KB，22 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

ST68C554CJ68 Overview

Serial I/O Controller, 4 Channel(s), 0.1875MBps, CMOS, PQCC68, PLASTIC, LCC-68

ST68C554CJ68 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	QCCJ, LDCC68,1.0SQ
Contacts	68
Reach Compliance Code	compliant
Other features	ALSO OPERATES AT 3.3V SUPPLY
Address bus width	3
boundary scan	NO
maximum clock frequency	24 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.1875 MBps
External data bus width	8
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
length	24.23 mm
low power mode	NO
Number of serial I/Os	4
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	24.23 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

Preview

Download Datasheet

View All

ST68C554CJ68 Related Products

	ST68C554CJ68	ST68C554IJ68
Description	Serial I/O Controller, 4 Channel(s), 0.1875MBps, CMOS, PQCC68, PLASTIC, LCC-68	Serial I/O Controller, 4 Channel(s), 0.1875MBps, CMOS, PQCC68, PLASTIC, LCC-68
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	LCC	LCC
package instruction	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ
Contacts	68	68
Reach Compliance Code	compliant	compliant
Other features	ALSO OPERATES AT 3.3V SUPPLY	ALSO OPERATES AT 3.3V SUPPLY
Address bus width	3	3
boundary scan	NO	NO
maximum clock frequency	24 MHz	24 MHz
letter of agreement	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ
Maximum data transfer rate	0.1875 MBps	0.1875 MBps
External data bus width	8	8
JESD-30 code	S-PQCC-J68	S-PQCC-J68
JESD-609 code	e0	e0
length	24.23 mm	24.23 mm
low power mode	NO	NO
Number of serial I/Os	4	4
Number of terminals	68	68
Maximum operating temperature	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	30
width	24.23 mm	24.23 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1	1
