ST68C554IJ68 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ST68C554IJ68

ST68C554IJ68: DescriptionSerial I/O Controller, 4 Channel(s), 0.0546875MBps, CMOS, PQCC68,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，22 Pages; ManufacturerSTARTECH

Download Datasheet Parametric Compare View All

ST68C554IJ68 Overview

Serial I/O Controller, 4 Channel(s), 0.0546875MBps, CMOS, PQCC68,

ST68C554IJ68 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
Other features	MODEM CONTROL CAPABILITY
Address bus width	5
boundary scan	NO
maximum clock frequency	7.372 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.0546875 MBps
External data bus width	8
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	4
Number of terminals	68
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

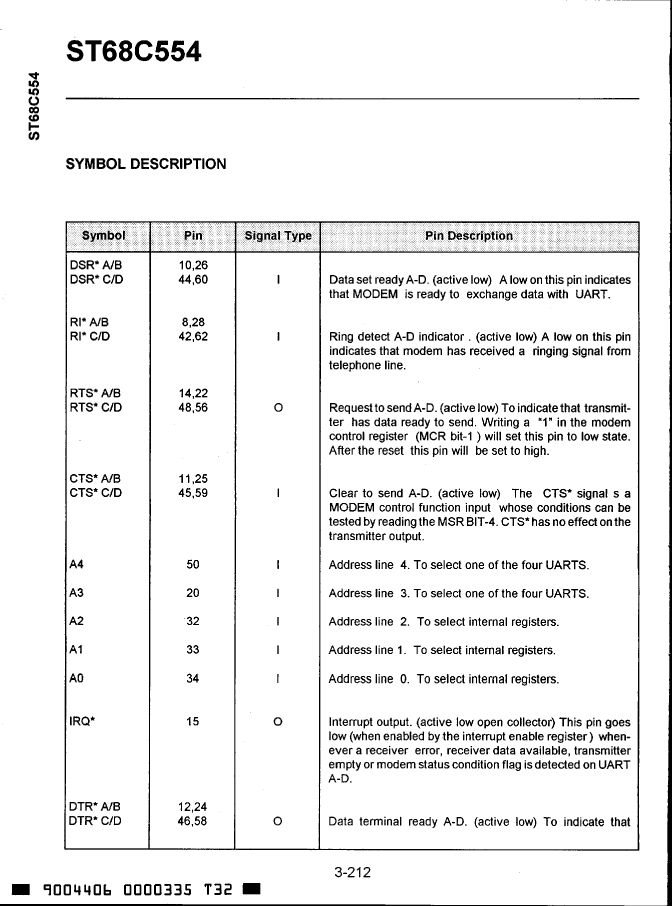

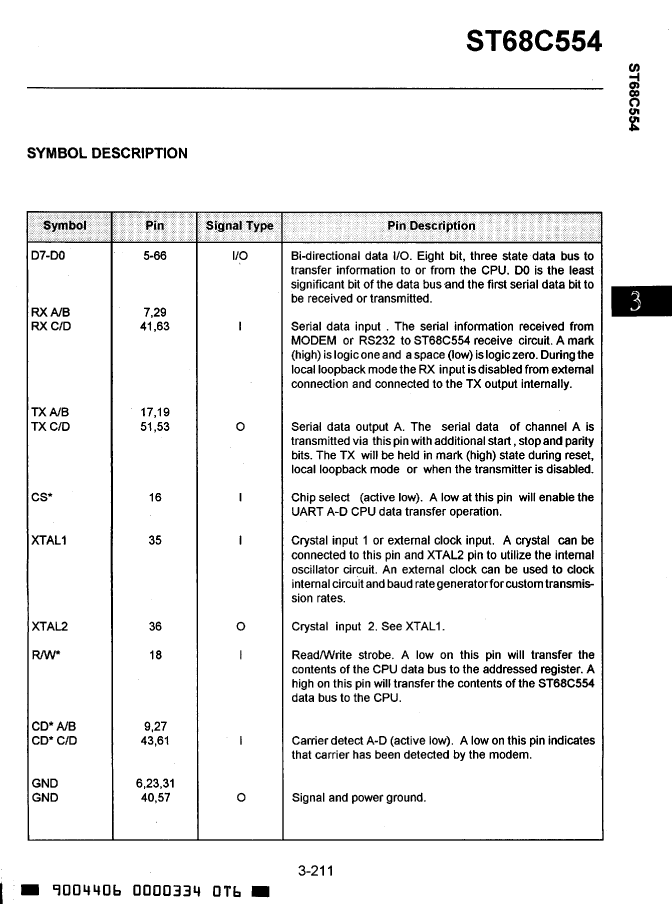

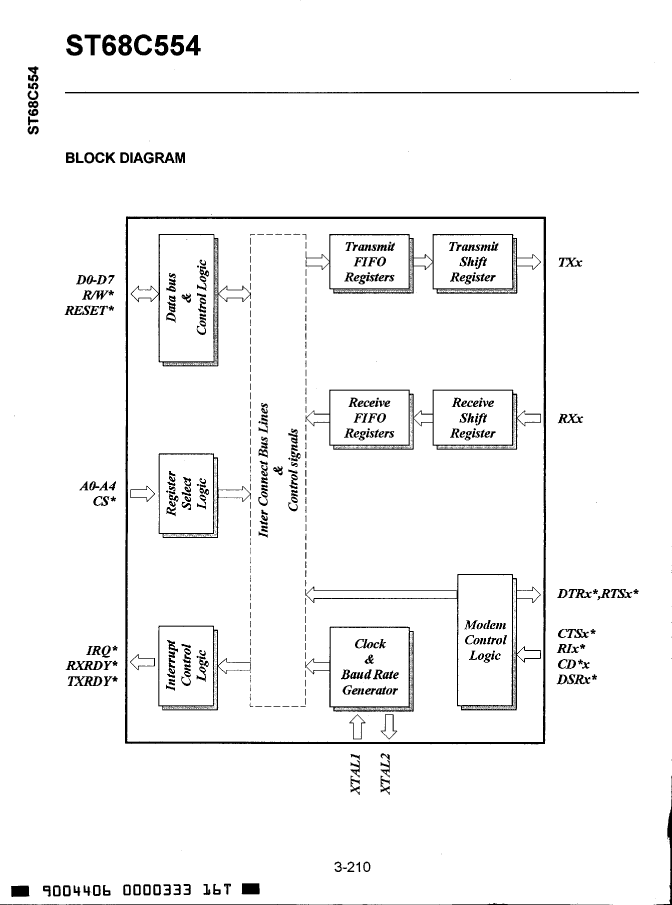

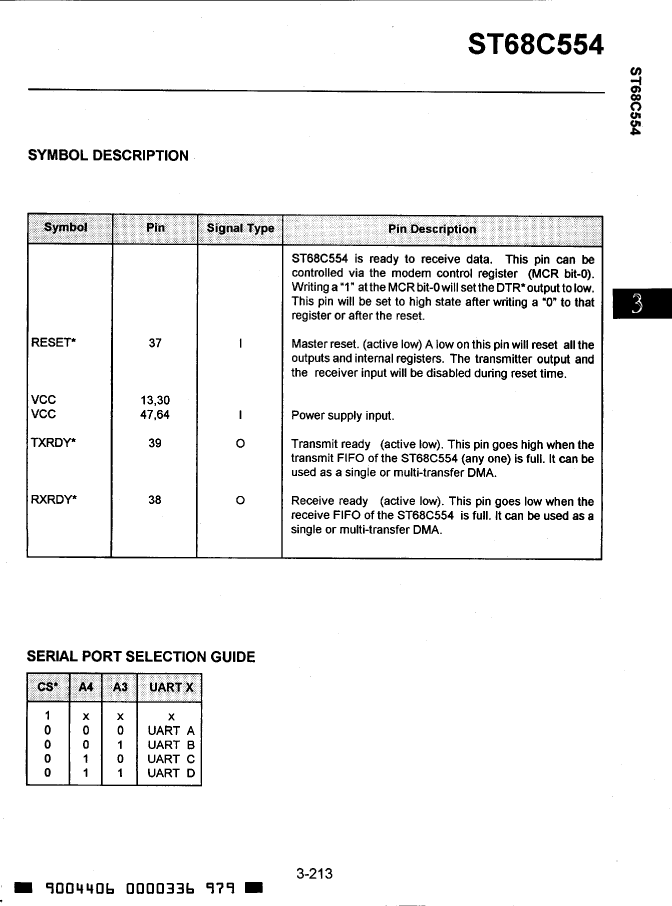

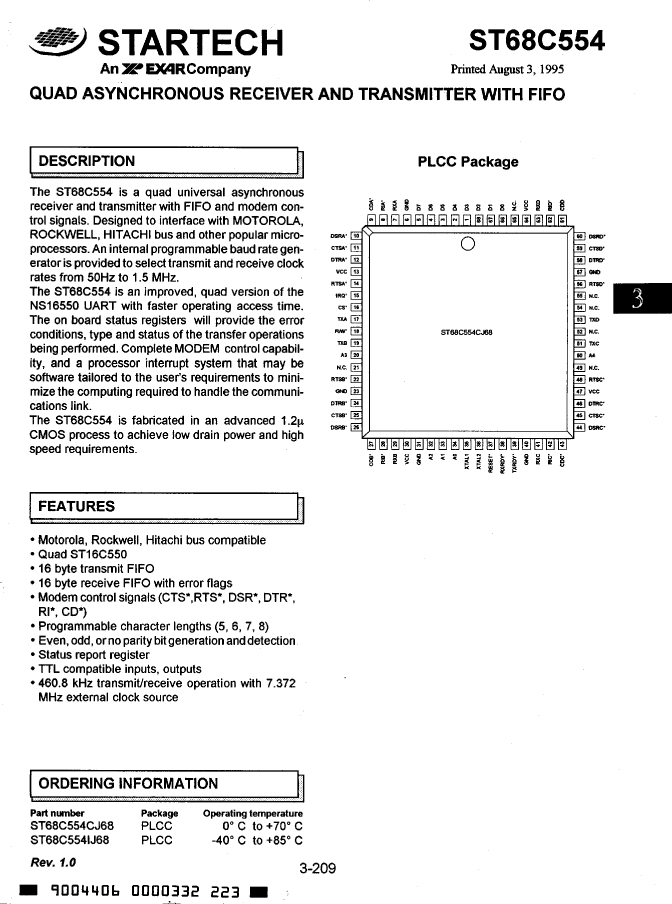

Preview

Download Datasheet

View All

ST68C554IJ68 Related Products

	ST68C554IJ68	ST68C554CJ68
Description	Serial I/O Controller, 4 Channel(s), 0.0546875MBps, CMOS, PQCC68,	Serial I/O Controller, 4 Channel(s), 0.0546875MBps, CMOS, PQCC68,
Is it Rohs certified?	incompatible	incompatible
package instruction	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown	unknown
Other features	MODEM CONTROL CAPABILITY	MODEM CONTROL CAPABILITY
Address bus width	5	5
boundary scan	NO	NO
maximum clock frequency	7.372 MHz	7.372 MHz
letter of agreement	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ
Maximum data transfer rate	0.0546875 MBps	0.0546875 MBps
External data bus width	8	8
JESD-30 code	S-PQCC-J68	S-PQCC-J68
JESD-609 code	e0	e0
low power mode	NO	NO
Number of serial I/Os	4	4
Number of terminals	68	68
Maximum operating temperature	85 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1	1
