CAT5120TBI-00-T3 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> CAT5120TBI-00-T3

CAT5120TBI-00-T3: DescriptionDigital Potentiometer, 1 Func, 100000ohm, Increment/decrement Control Interface, 16 Positions, PDSO6, ROHS COMPLIANT, MO-178, SOT-23, 6 PIN; CategoryAnalog mixed-signal IC converter; File Size292KB，12 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CAT5120TBI-00-T3 Overview

Digital Potentiometer, 1 Func, 100000ohm, Increment/decrement Control Interface, 16 Positions, PDSO6, ROHS COMPLIANT, MO-178, SOT-23, 6 PIN

CAT5120TBI-00-T3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	LSSOP, TSOP6,.11,37
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
control interface	INCREMENT/DECREMENT
Converter type	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G6
JESD-609 code	e3
length	2.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of positions	16
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
resistance law	LINEAR
Maximum resistor terminal voltage	2.7 V
Minimum resistor terminal voltage
Maximum seat height	1.45 mm
Nominal supply voltage	2.7 V
surface mount	YES
Nominal temperature coefficient	200 ppm/°C
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Nominal total resistance	100000 Ω
width	1.6 mm
Base Number Matches	1

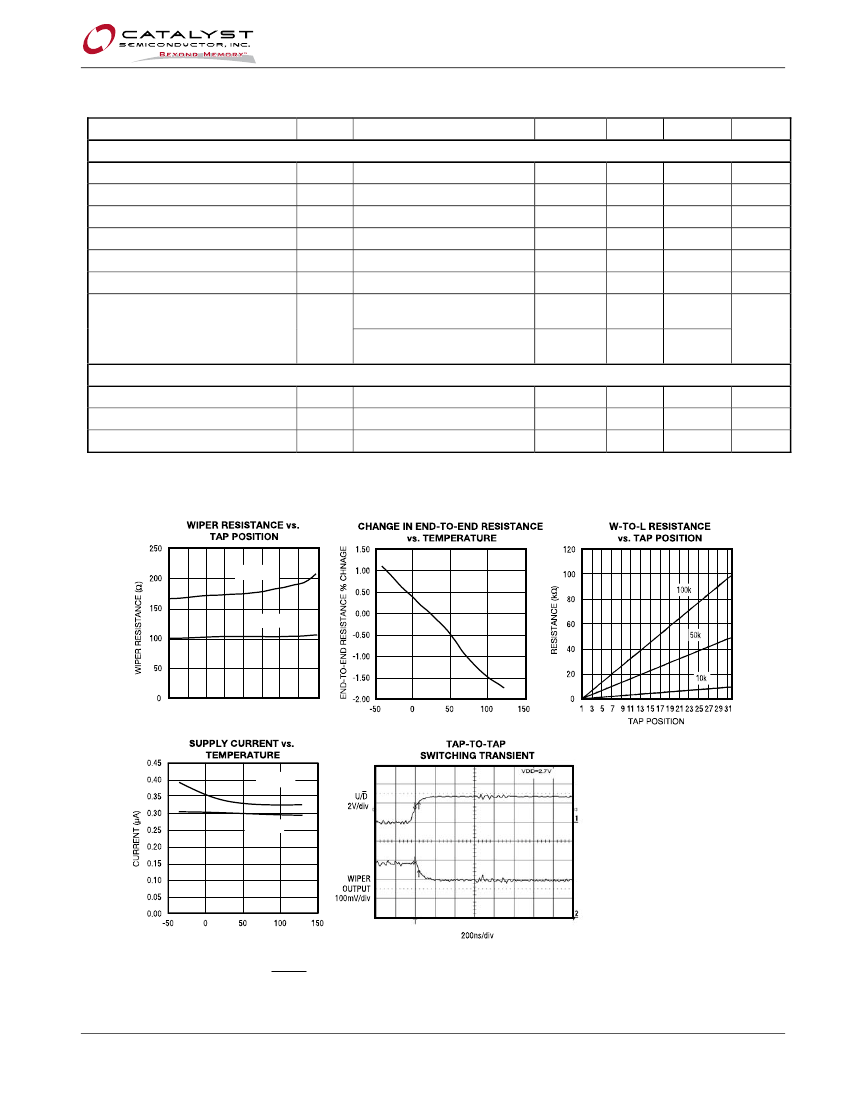

Preview

Download Datasheet

View All

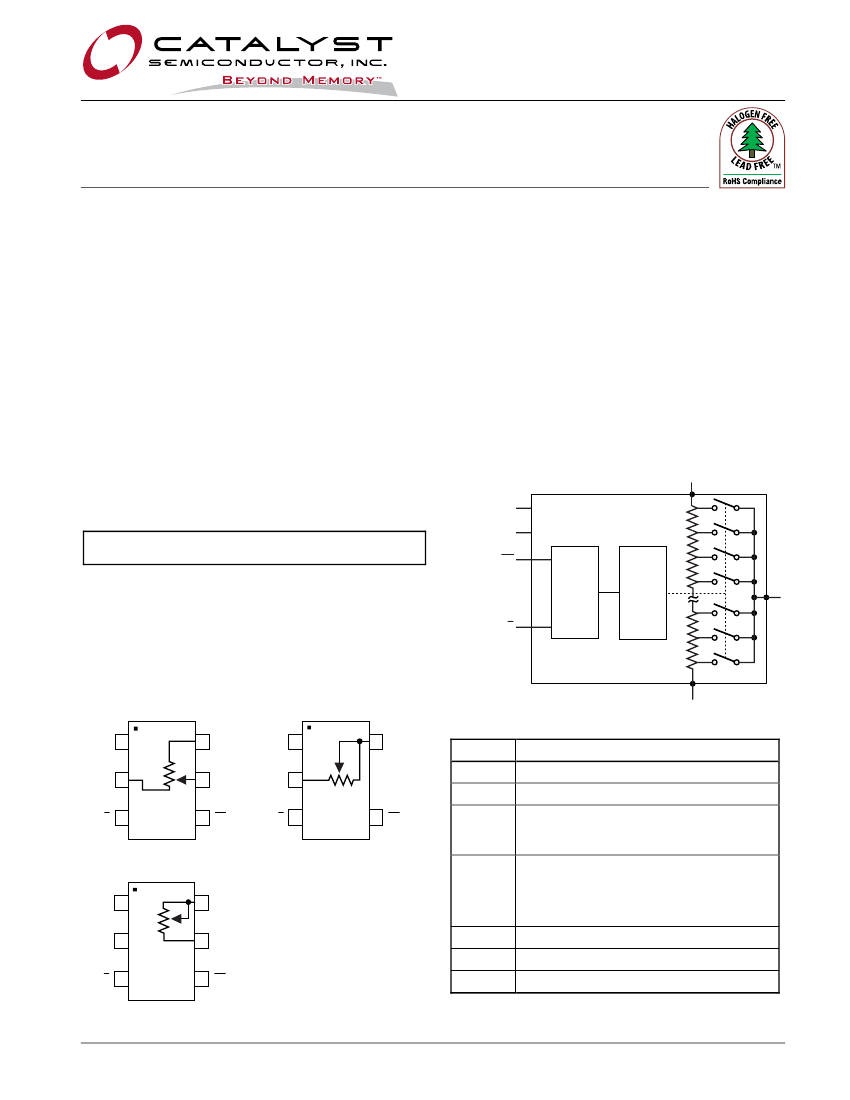

CAT5120, CAT5121, CAT5122

16-Tap MiniPot™ Digitally Programmable

Potentiometers with 2-Wire Interface

FEATURES

0.3µA Ultra-low standby current

Single-supply operation: 2.7V to 5.5V

Glitchless switching between resistor taps

Power-on reset to midscale

2-wire up/down serial interface

Resistance values: 10kΩ, 50kΩ and 100kΩ

Available in SC-70 and SOT-23 packages

DESCRIPTION

CAT5120/5121/5122 linear-taper digitally programmable

potentiometers perform the same function as a

mechanical potentiometer or a variable resistor. These

devices consist of a fixed resistor and a wiper contact

with 16-tap points that are digitally controlled through a

2-wire up/down serial interface.

The CAT5120 is configured as a potentiometer. The

CAT5121 and CAT5122 are configured as variable

resistors. See

Pin Configurations

for part functionality.

Three resistance values are available: 10kΩ, 50kΩ and

100kΩ. These are available in space-saving 5-pin and

6-pin SC-70 and SOT-23 packages.

APPLICATIONS

LCD screen adjustment

Volume control

Mechanical potentiometer replacement

Gain adjustment

Line impedance matching

FUNCTIONAL DIAGRAM

GND

For Ordering Information details, see page 10.

16-POSITION

DECODER

UP-DOWN

COUNTER

U/D

PIN CONFIGURATION

SC-70

SOT-23

SC-70

SOT-23

PIN DESCRIPTIONS

Name

GND

Description

Power Supply

Ground

¯¯¯¯¯

¯¯

Up/Down Control Input. With CS low, a

low-to-high transition increments or

decrements the wiper position.

¯¯

Chip Select Input. A high-to-low CS

transition determines the mode:

increment if U/D is high, or decrement if

U/D is low.

Low Terminal of Resistor

Wiper Terminal of Resistor

High Terminal of Resistor

GND 2

5 W

GND 2

CAT5120

U/D 3

CAT5122

U/D

SC-70

SOT-23

¯¯

GND 2

5 L

CAT5121

U/D 3

Characteristics subject to change without notice

Doc. No. MD-2121 Rev. E
