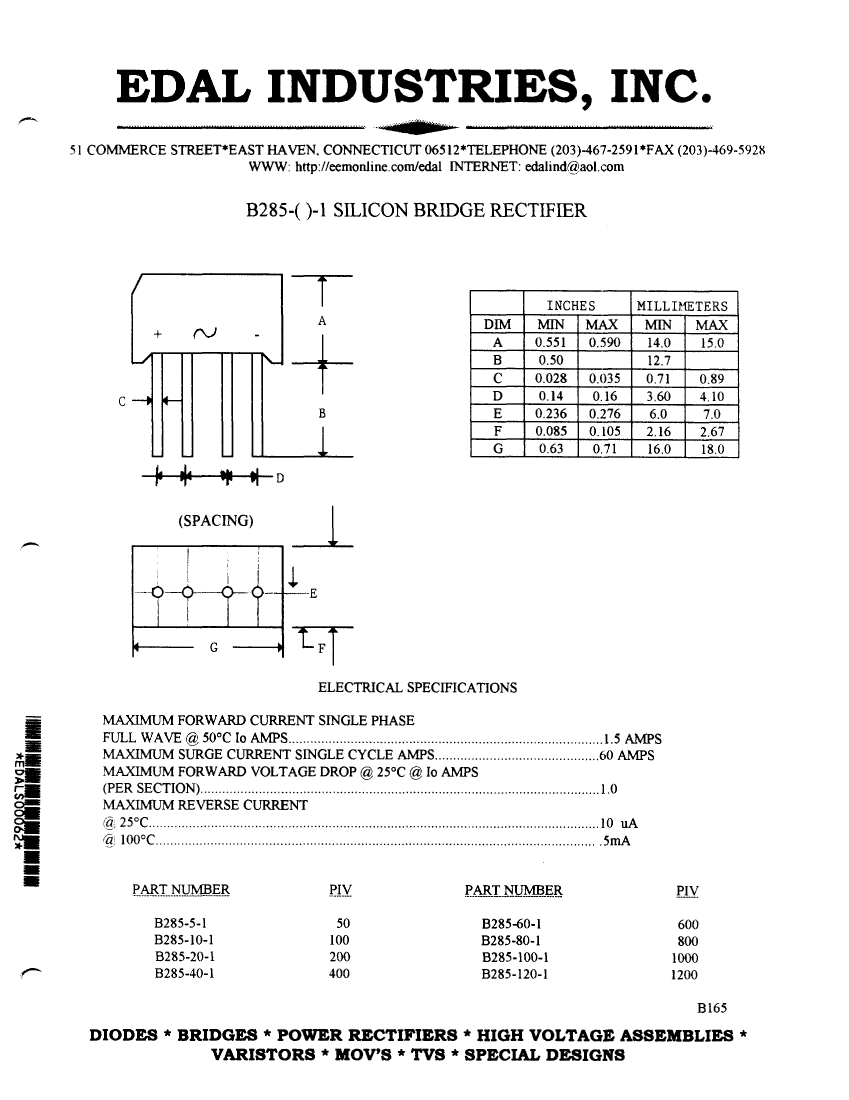

B285-100: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size36KB，1 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric Compare View All

B285-100 Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon,

B285-100 Parametric

Parameter Name	Attribute value
package instruction	R-PSIP-W4
Reach Compliance Code	unknown
Minimum breakdown voltage	1000 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	R-PSIP-W4
Maximum non-repetitive peak forward current	30 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	10 µA
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

B285-100 Related Products

	B285-100	B285-120	B285-60	B285-80	B285-20	B285-10	B285-40	B285-5
Description	Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 1200V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 800V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 100V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, 50V V(RRM), Silicon,
package instruction	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Minimum breakdown voltage	1000 V	1200 V	600 V	800 V	200 V	100 V	400 V	50 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	1200 V	600 V	800 V	200 V	100 V	400 V	50 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	-	EDAL	-	-	EDAL	EDAL	EDAL	EDAL
