SB250-05H-RA datasheet, PDF - EEWORLD Datasheet

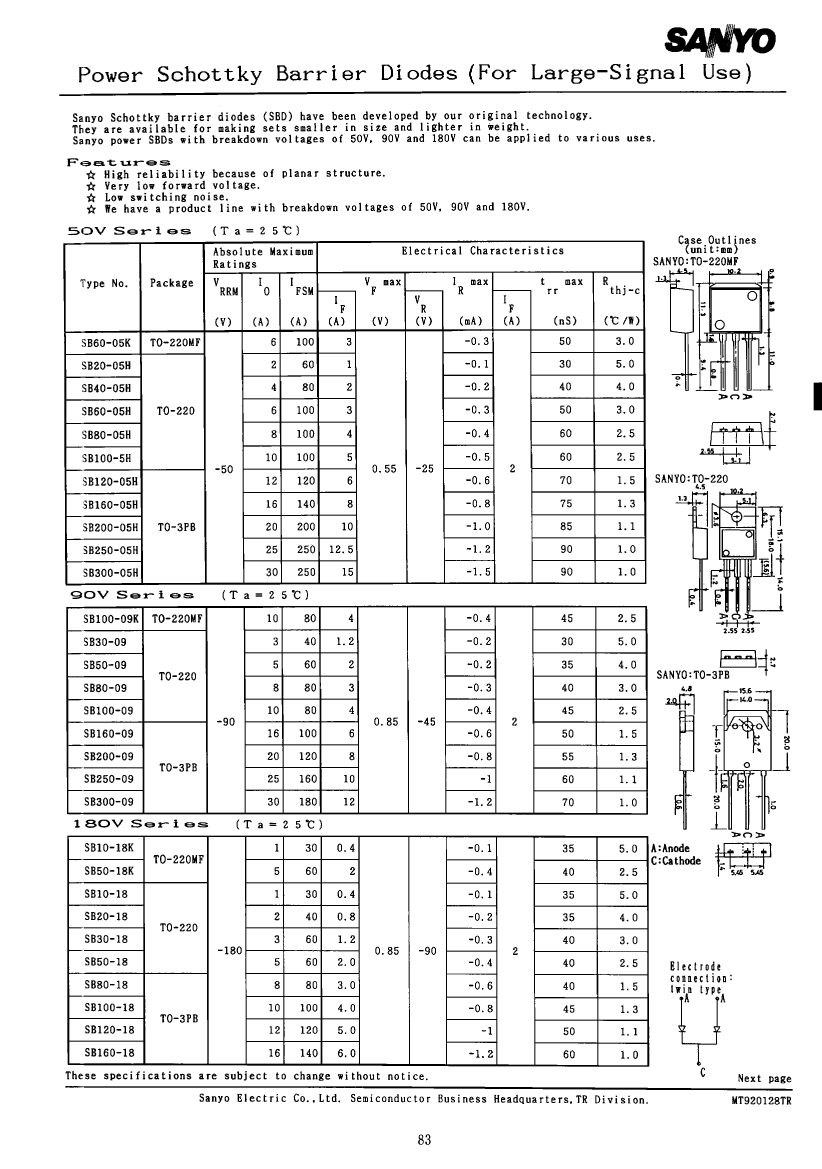

SB250-05H-RA: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 12.5A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size50KB，1 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

SB250-05H-RA Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 12.5A, 50V V(RRM), Silicon,

Parameter Name	Attribute value
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	250 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	12.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	1200 µA
Maximum reverse recovery time	0.09 µs
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1
