LBA120LPTR datasheet, PDF - EEWORLD Datasheet

LBA120LPTR: DescriptionTransistor Output SSR, 2-Channel, 3750V Isolation, FLATPACK, 8PIN; CategoryLED optoelectronic/LED photoelectric; File Size375KB，9 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric Compare View All

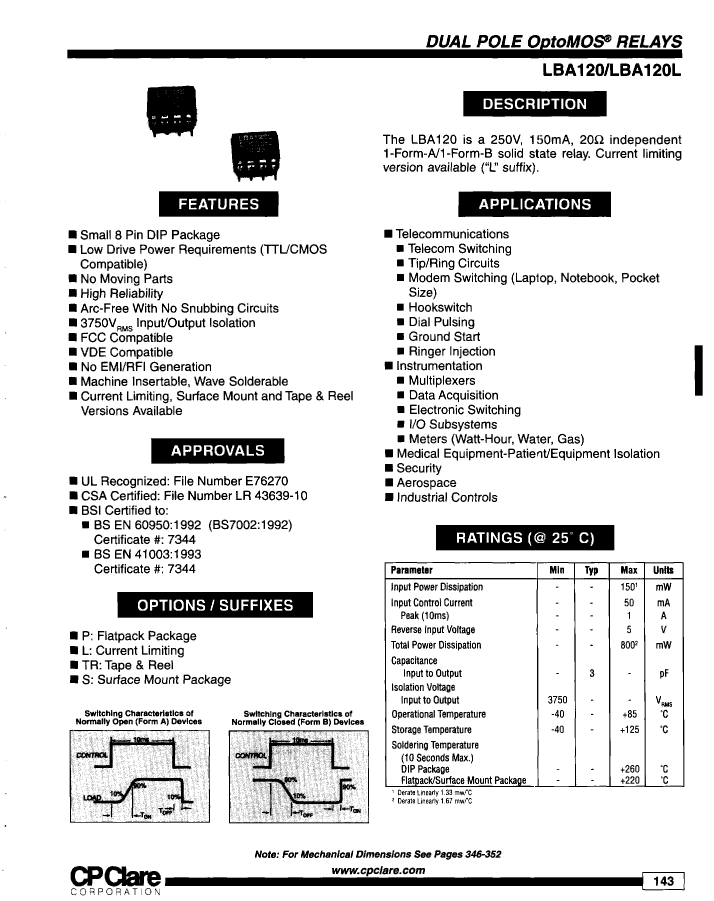

LBA120LPTR Overview

Transistor Output SSR, 2-Channel, 3750V Isolation, FLATPACK, 8PIN

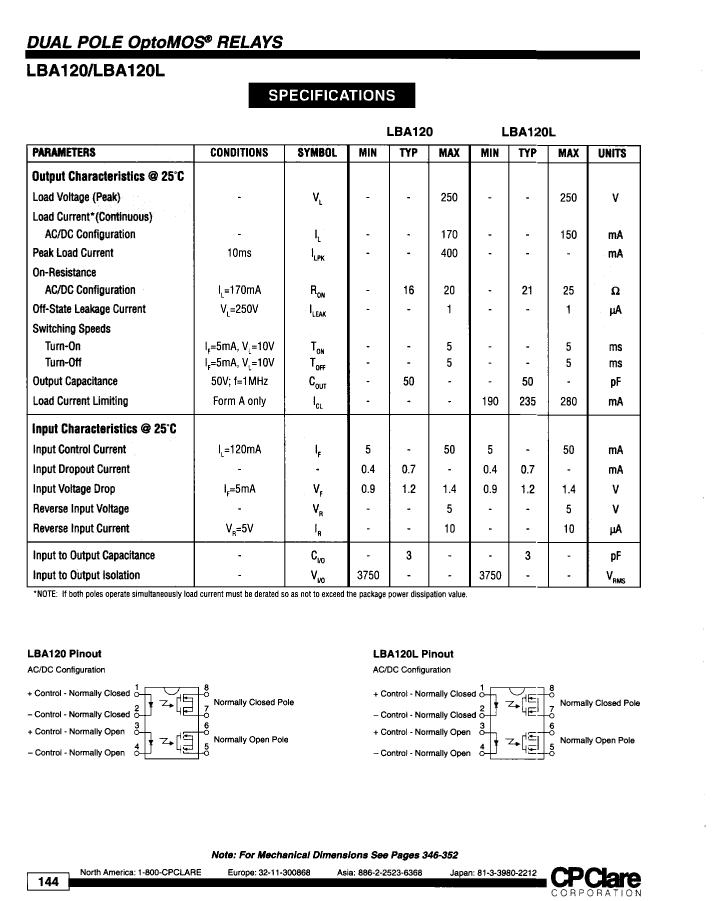

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	FLATPACK, 8PIN
Reach Compliance Code	compliant
Other features	UL RECOGNIZED; HIGH RELIABILITY
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.05 A
Maximum insulation voltage	3750 V
JESD-609 code	e3
Number of components	2
Maximum on-state current	0.15 A
Maximum on-state resistance	25 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Terminal surface	Matte Tin (Sn)
Base Number Matches	1

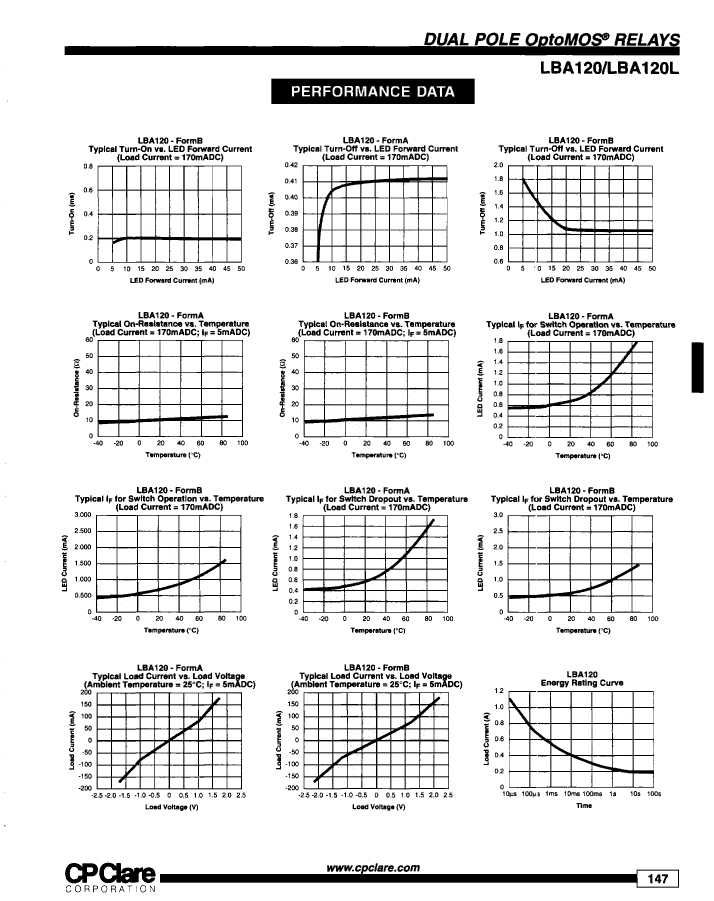

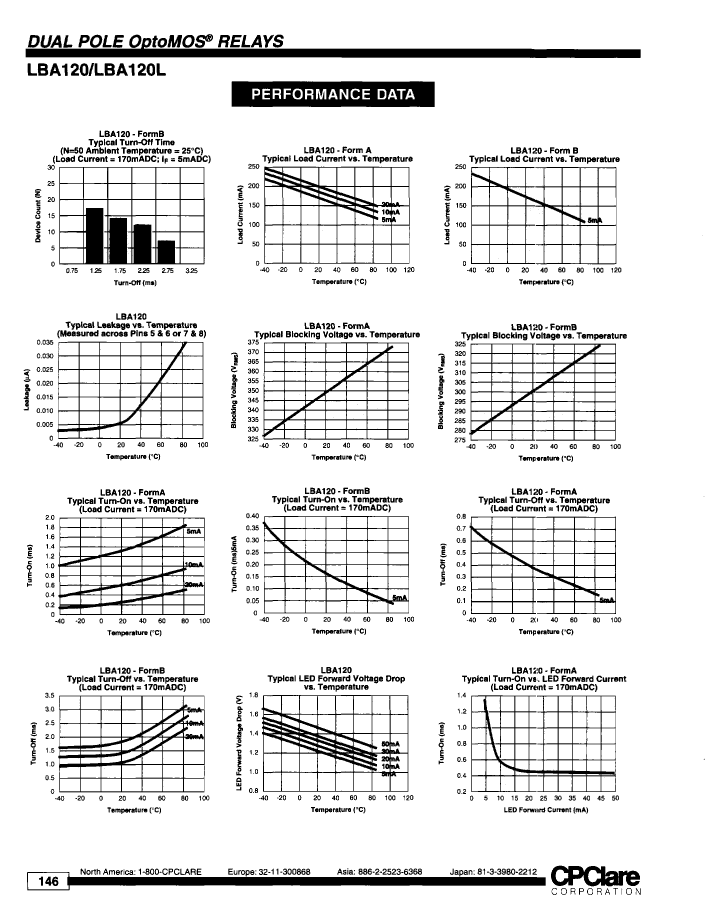

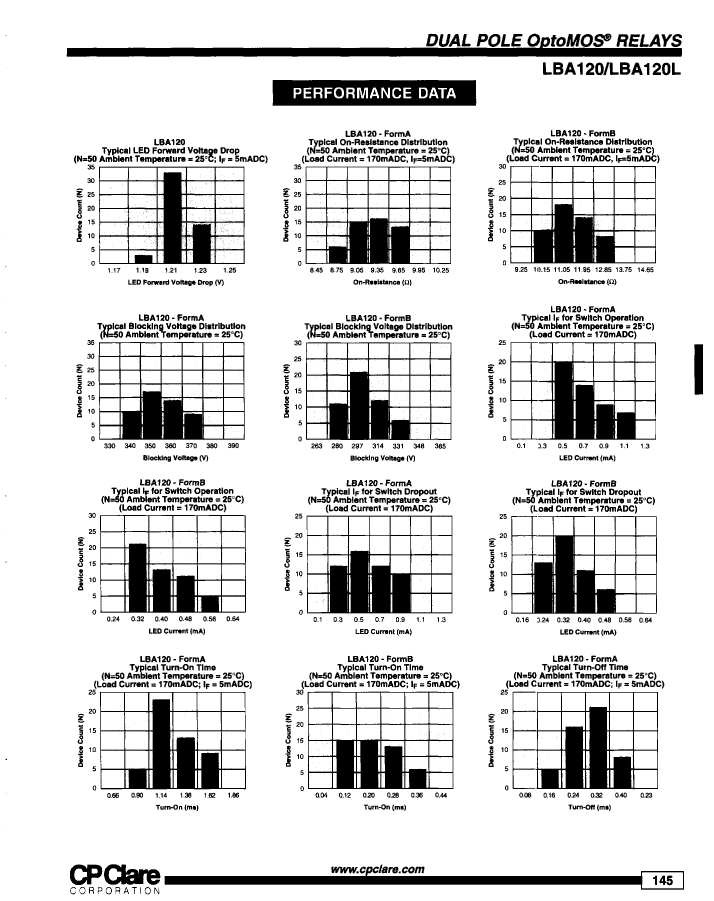

	LBA120LPTR	LBA120LP
Description	Transistor Output SSR, 2-Channel, 3750V Isolation, FLATPACK, 8PIN	Transistor Output SSR, 2-Channel, 3750V Isolation, FLATPACK, 8PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	FLATPACK, 8PIN	FLATPACK, 8PIN
Reach Compliance Code	compliant	compliant
Other features	UL RECOGNIZED; HIGH RELIABILITY	UL RECOGNIZED; HIGH RELIABILITY
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.05 A	0.05 A
Maximum insulation voltage	3750 V	3750 V
JESD-609 code	e3	e3
Number of components	2	2
Maximum on-state current	0.15 A	0.15 A
Maximum on-state resistance	25 Ω	25 Ω
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Base Number Matches	1	1
