ATT-0219-60-NNN-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0219-60-NNN-02

ATT-0219-60-NNN-02: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size58KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

ATT-0219-60-NNN-02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATT-0219-60-NNN-02	-	-	View	Buy Now

ATT-0219-60-NNN-02 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, STAINLESS STEEL

ATT-0219-60-NNN-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	60 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.34
Base Number Matches	1

Preview

Download Datasheet

View All

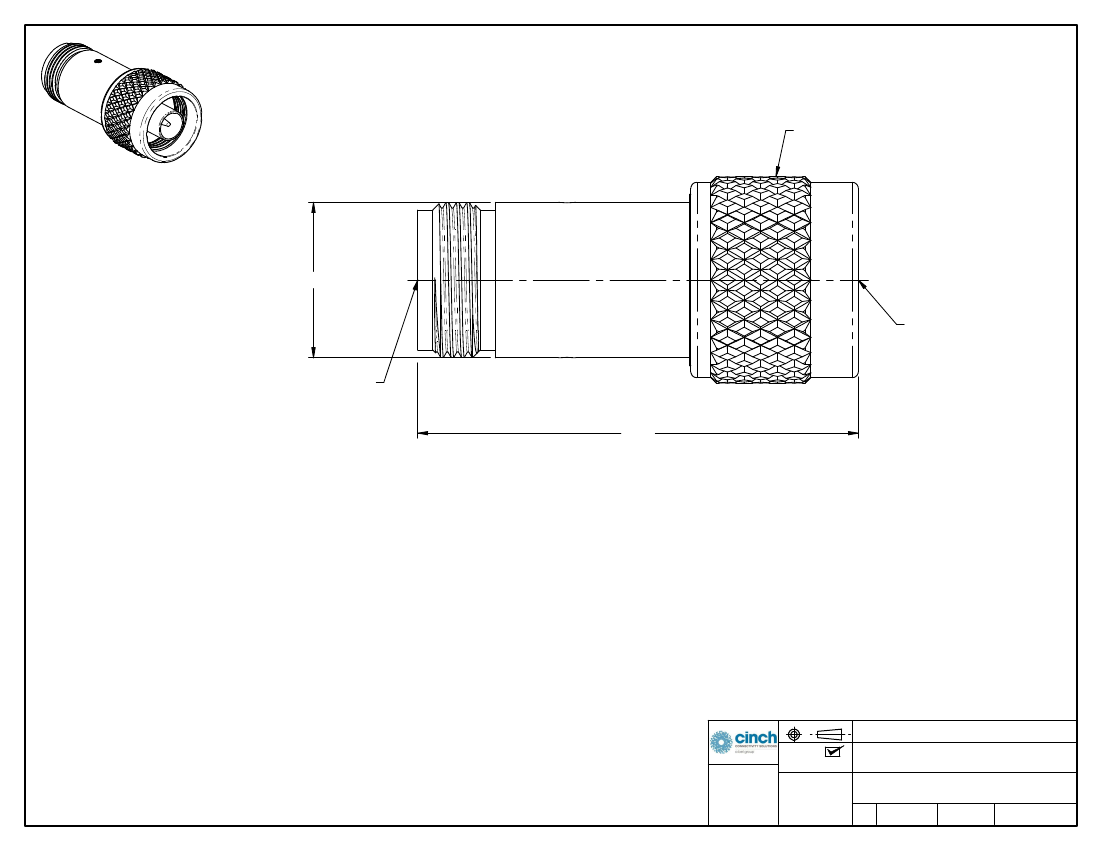

.827 MAX OVER MALE

DIAMOND KNURL

.62

WEST MICROW

TT-0219-XX-NNN

YdB DC-18 GHz

TYPE N MALE

PER MIL STD-348

FIGURE 304-1

TYPE N FEMALE

PER MIL STD-348

FIGURE 304-2

1.77

NOTES: UNLESS OTHERWISE SPECIFIED.

1.0 MATERIALS & FINISH:

1.1 HOUSING, COUPLING SLEEVE: PASSIVATED STAINLESS STEEL.

1.2 DIELECTRIC: PTFE (TEFLON)

1.3 CENTER CONTACT: GOLD PLATED BERYLLIUM COPPER

1.5 GASKET: SILICONE RUBBER

2.0 ELECTRICAL SPECIFICATIONS:

2.1 FREQUENCY RANGE: DC TO 18 GHz

2.2 ATTENUATION AND ACCURACY:

2.2.1 1-6dB

0.3dB

2.2.2 7-20dB

0.5dB

2.2.3 21-30dB

1.0dB

2.3 IMPEDANCE: 50 OHMS NOMINAL

2.4 MAXIMUM VSWR: 1.07 +0.015f (GHz)

2.5 MAXIMUM INPUT POWER: 2 WATTS AVERAGE AT

+40

C DERATED LINEARLY TO 0.5 WATTS AT +125

2.6 OPERATING TEMPERATURE RANGE: -54

C TO +125C

3RD ANGLE PROJECTION

Midwest Microwave

Title:

RoHS2

This PROPRIETARY Document

is property of Emerson Network

Power Connectivity Solutions.

It is confidential in nature,

non-transferable, and issued with

the clear understanding that it is

not traced or copied without

permission and is returnable

upon demand.

ATTENUATOR, 1-30dB

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

Model No.

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XX

.02

.XXX

.005

ANGLES

ATT-0219-XX-NNN-02

Size

DO NOT SCALE

Date:

3/6/2015

DRAWING

Sheet 1 of 1
