B6005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> B6005

B6005: DescriptionTelecom Transformer; CategoryPower management transformer; File Size33KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B6005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B6005	-	-	View	Buy Now

B6005 Overview

Telecom Transformer

B6005 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FOR USE WITH AMD 79C978 PHONELINE/ETHERNET LAN CONTROLLER; TURNS RATIO: 1.41:1
high	7.37 mm
length	24.13 mm
Manufacturer's serial number	B6005
Installation features	SURFACE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	L24.13XB14.73XH7.37 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	14.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

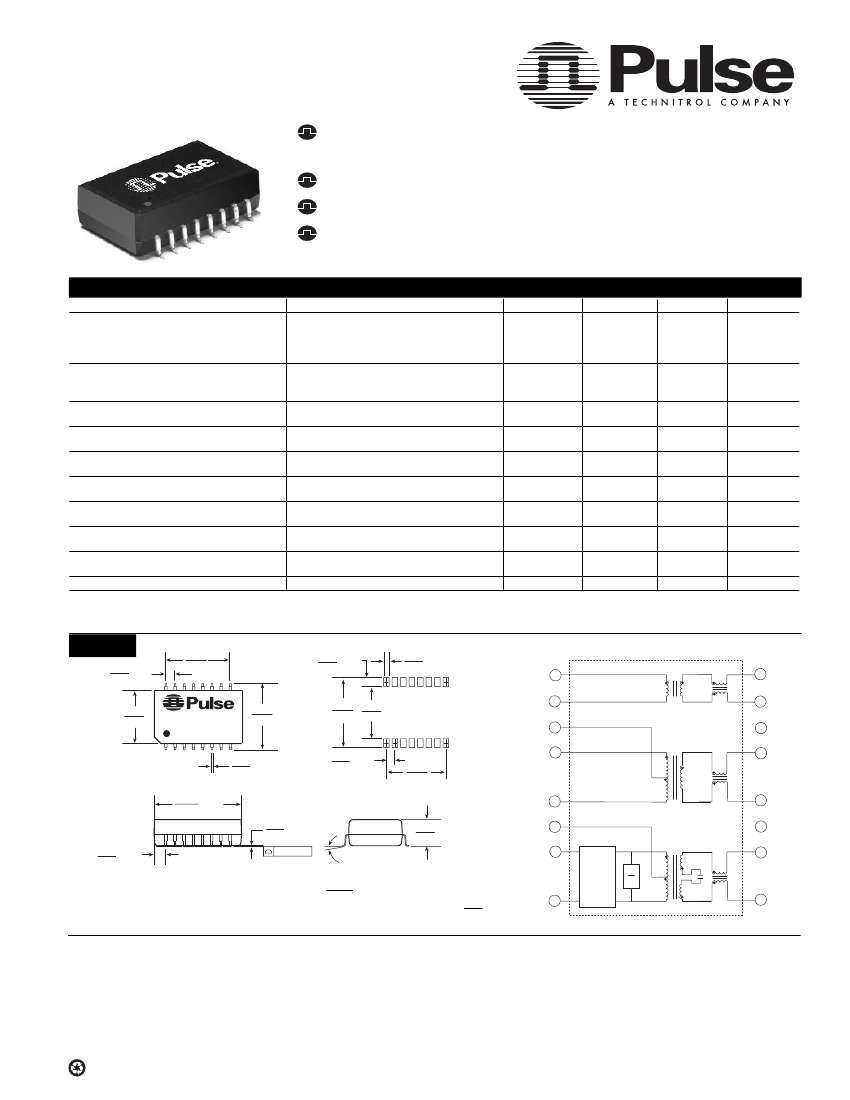

HOME PHONE NETWORKING

BANDPASS AND 10BASE-T FILTER

MODULE

For use with AMD’s 79C978 Phoneline/Ethernet

LAN Controller

Supports TUT Systems

Home Run

™

Technology

Includes protection circuitry, isolation and EMI filtering

Contains 10BASE-T transmit and receive isolation and

EMI filtering

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

PARAMETER

TEST CONDITION

MIN.

NOM.

MAX.

TUT

™

Insertion Loss

6.0 MHz

Input (7-8), Output (9-10)

3.2

7.5 MHz

HP-8751A S21 100

Ω

2.8

3.5

9.0 MHz

3.4

TUT

™

Attenuation

Input (7-8), Output (9-10)

1.0 MHz

HP-8751A S21 100

Ω

27 MHz

TUT

™

Return Loss

Input (9-10), 100

Ω

(7-8)

(6.0 MHz to 9.0 MHz)

HP-8751A S11 100

Ω

10BASE-T

Transmit (4-5):(13-12)

1.38

1.41

1.44

Turns Ratio

Receive (1-2):(16-15)

0.98

1.0

1.02

10BASE-T

Transmit (4-5) 10 KHz, 0.02 Vrms

140

180

Inductance

Receive (1-2) 10 KHz, 0.02 Vrms

140

180

10BASE-T

(4-5) with (13-12) Shorted

0.5

0.7

Leakage Inductance

(1-2) with (16-15) Shorted

0.8

1.0

10BASE-T

(4-5) Short to (13-12) Shorted

Interwinding Capacitance

(1-2) Short to (16-15) Shorted

10BASE-T

(1-2), (4-5)

0.2

0.3

DC Resistance

(13-12), (16-15)

0.6

0.8

10BASE-T

(13-12) to (4-5) 50

Ω

Return Loss

(16-15) to (1-2) 100

Ω

Isolation

Pins (1-8) shorted to (9-16) shorted

2000

NOTE:

Filters are shipped in tubes unless tape and reel is specified. Please add the suffix

“T”

(i.e. B6005T) for tape and reel orders.

UNITS

µH

Ω

Vrms

Mechanical

B6005

.100 TYP

2,54

.700

17,78

.120 TYP

3,05

.050 TYP

1,27

CHIP

RX-

Schematic

MEDIA

1:1

16 RX-

.580

14,73

B6005

Date Code

Country of Origin

U.S. Pat. 5,015,981

.730

18,54

.760 .580

19,30 14,73

RX+

15 RX+

14 NC

1:1.41

13 TX-

XMIT CT

TX-

.018 TYP

0,46

.950 MAX

24,13

.010 TYP

0,25

.125 TYP

3,18

Weight

. . . . . . . . . . . . . .6.0 grams

Tape & Reel

. . . . . . . . . . . .200/reel

Tube

. . . . . . . . . . . . . . . . . .20/tube

.004/0,10

16 Surfaces

.700

17,78

SUGGESTED PAD LAYOUT

TX+

1:1

12 TX+

11 NC

10 RING (-)

.100 TYP

2,54

.290

7,37

0°– 8°

GND

(+)

For More Information :

Corporate

12220 World Trade Drive

San Diego, CA 92128

Tel: 619 674 8100

FAX: 619 674 8262

http://www.pulseeng.com

Quick-Facts: 619 674 9672

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

Band

Pass

Filter

(-) 8

9 TIP (+)

Europe

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

Tel: 44 1483 401700

FAX: 44 1483 401701

Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 287 8998

FAX: 65 280 0080

Distributor

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may

be trademarks or registered trademarks of their respective owners. Tut Systems is a registered trademark of Tut Systems, Inc. and both TUT and HOME RUN are trademarks of Tut Systems, Inc.

PRELIMINARY B918.P (2/99)
