B6006LT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> B6006LT

Preview

B6006LT: DescriptionTelecom Transformer; CategoryPower management transformer; File Size56KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B6006LT Overview

Telecom Transformer

B6006LT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DESIGNED FOR USE WITH AMD 79C978 PHONELINE/ETHERNET LAN CONTROLLER; TURNS RATIO: 1.41:1
high	7.37 mm
length	24.13 mm
Manufacturer's serial number	B6006L
Installation features	SURFACE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	24.13mm X 14.73mm X 7.37mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	14.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

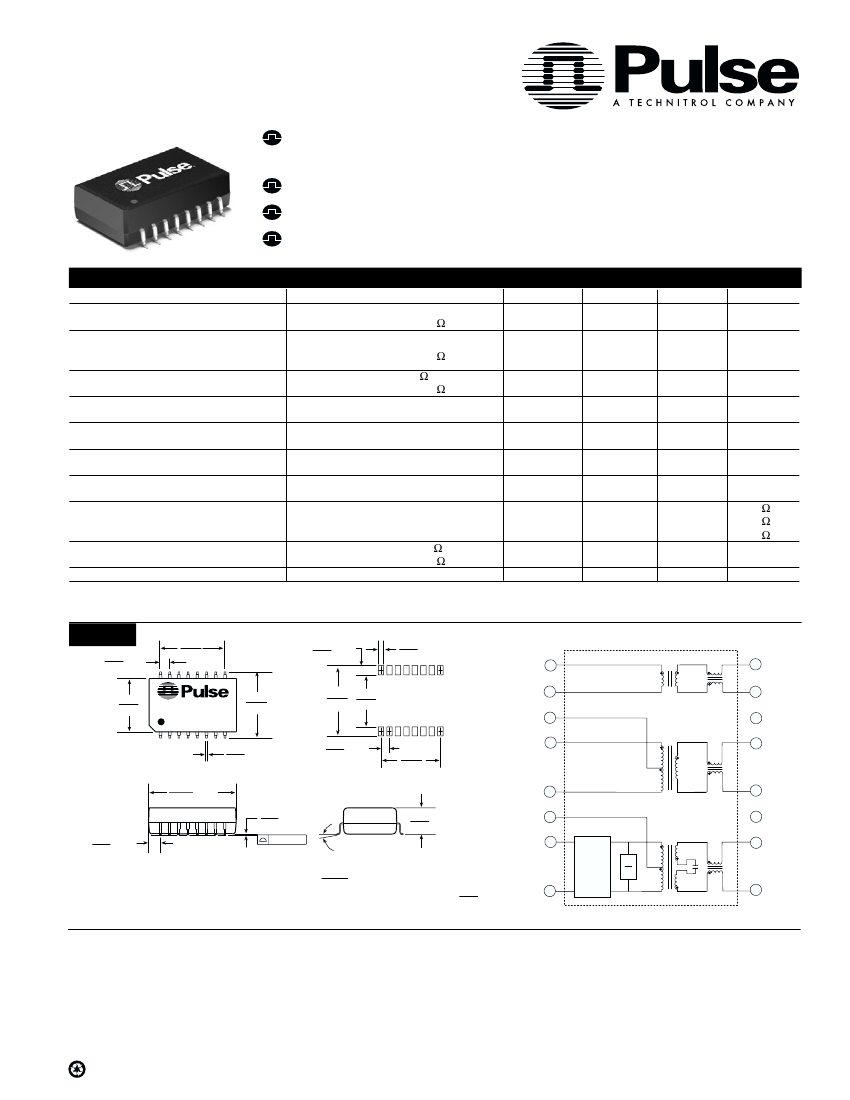

HOME PHONE NETWORKING

BANDPASS AND 10BASE-T FILTER

MODULE

For use with AMD’s 79C978 Phoneline/Ethernet

LAN Controller

Supports HomePNA

™

1M8 Technology

Includes protection circuitry, isolation and EMI filtering

Contains 10BASE-T transmit/receive isolation and EMI filtering

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

PARAMETER

HPN 1M8

Insertion Loss

6.0 MHz to 9.0 MHz

HPN 1M8

Attenuation

1.0 MHz

27 MHz

HPN 1M8

Return Loss

(6.0 MHz to 9.0 MHz)

10BASE-T

Turns Ratio

10BASE-T

Inductance

10BASE-T

Leakage Inductance

10BASE-T

Interwinding Capacitance

TEST CONDITION

Input (7-8), Output (9-10)

HP-8751A S21 100

Input (7-8), Output (9-10)

HP-8751A S21 100

9

MIN.

1.2

70

55

NOM.

1.7

80

60

MAX.

2.2

—

UNITS

dB

—

µH

pF

9

dB

Vrms

Mechanical

B6006

.100 TYP

2,54

.700

17,78

.120 TYP

3,05

.050 TYP

1,27

CHIP

RX-

1

Schematic

MEDIA

1:1

16 RX-

.580

14,73

B6006

Date Code

Country of Origin

U.S. Pat. 5,015,981

.730

18,54

.760 .580

19,30 14,73

RX+

2

15 RX+

14 NC

1:1.41

13 TX-

XMIT CT

TX-

3

4

.018 TYP

0,46

.950 MAX

24,13

.010 TYP

0,25

.125 TYP

3,18

Weight

. . . . . . . . . . . . . .6.0 grams

Tape & Reel

. . . . . . . . . . . .200/reel

Tube

. . . . . . . . . . . . . . . . . .20/tube

.004/0,10

16 Surfaces

.700

17,78

SUGGESTED PAD LAYOUT

TX+

5

6

7

1:1

12 TX+

11 NC

10 RING (-)

.100 TYP

2,54

.290

7,37

0°– 8°

GND

(+)

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

Band

Pass

Filter

(-) 8

Z

9 TIP (+)

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 287 8998

FAX:65 280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may

be trademarks or registered trademarks of their respective owners.

PRELIMINARY B919.P (4/00)

9

Input (14-13), 100 (1-2)

12

15

—

HP-8751A S11 100

Transmit (4-5):(13-12)

1.38

1.41

1.44

Receive (1-2):(16-15)

0.98

1.0

1.02

Transmit (4-5) 10 KHz, 0.02 Vrms

140

180

—

Receive (1-2) 10 KHz, 0.02 Vrms

140

180

—

(1-2) with (16-15) shorted

—

0.4

0.7

(4-5) with (13-12) shorted

—

0.7

1.0

(1-2) short to (16-15) shorted

—

10

12

(4-5) short to (13-12) shorted

—

10

12

(1-2) = (3-5)

—

0.20

0.30

10BASE-T

(4-5)

—

0.15

0.20

DC Resistance

(16-15) = (13-12)

—

0.60

0.80

10BASE-T

(13-12) to (4-5) 50

18

23

—

Return Loss

(16-15) to (1-2) 100

18

23

—

Isolation

Pins (1-8) shorted to (9-16) shorted

2000

—

NOTE:

Filters are shipped in tubes unless tape and reel is specified. Please add the suffix

“T”

(i.e. B6006T) for tape and reel orders.

a

9

B6006LT Related Products

	B6006LT	B6006L
Description	Telecom Transformer	Telecom Transformer
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	DESIGNED FOR USE WITH AMD 79C978 PHONELINE/ETHERNET LAN CONTROLLER; TURNS RATIO: 1.41:1	DESIGNED FOR USE WITH AMD 79C978 PHONELINE/ETHERNET LAN CONTROLLER; TURNS RATIO: 1.41:1
high	7.37 mm	7.37 mm
length	24.13 mm	24.13 mm
Manufacturer's serial number	B6006L	B6006L
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	70 °C
method of packing	TUBE	TUBE
physical size	24.13mm X 14.73mm X 7.37mm	24.13mm X 14.73mm X 7.37mm
surface mount	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	14.73 mm	14.73 mm
Base Number Matches	1	1
