HI2-304/883 datasheet, PDF - EEWORLD Datasheet

HI2-304/883: DescriptionDUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, MBCY10; CategoryAnalog mixed-signal IC The signal circuit; File Size238KB，11 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

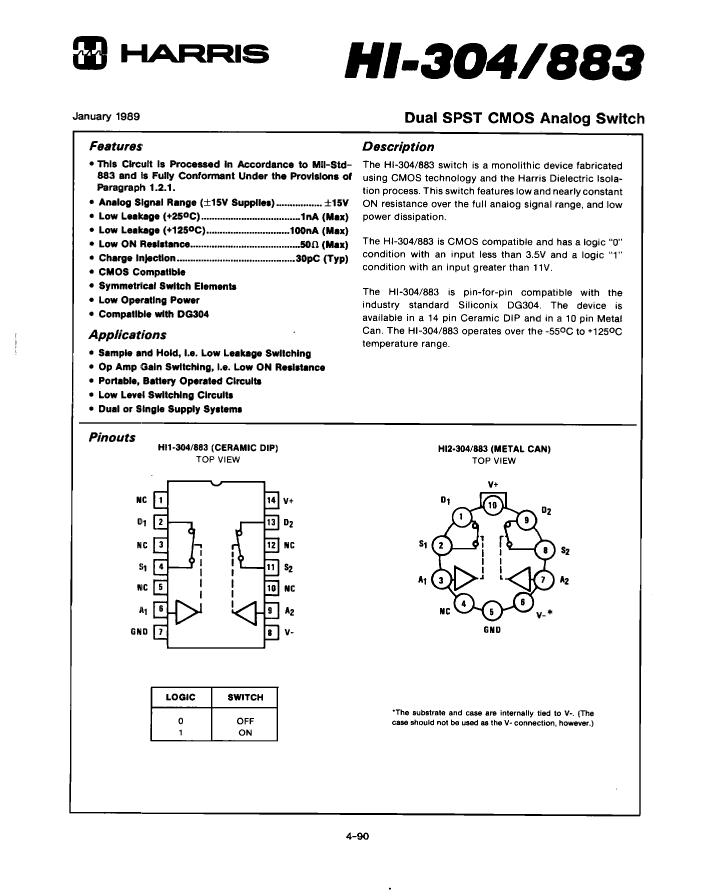

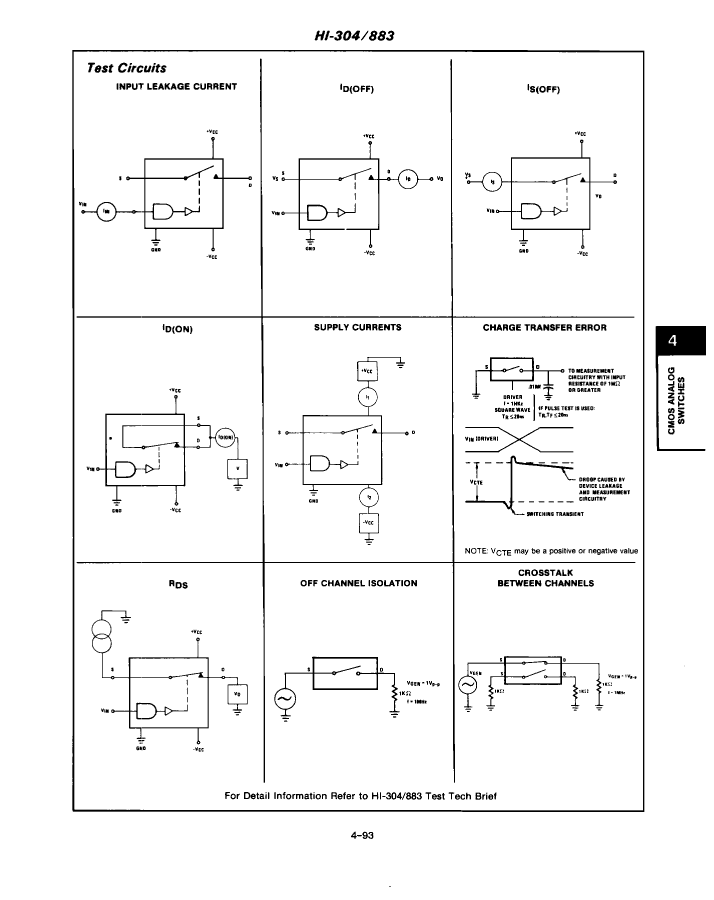

HI2-304/883 Overview

DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, MBCY10

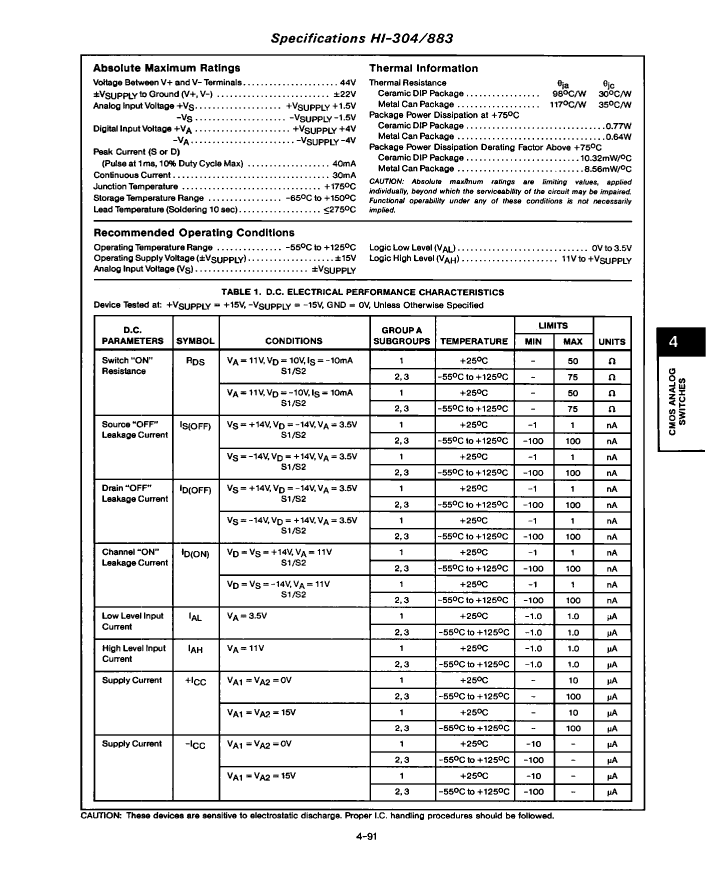

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	O-MBCY-W10
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	10
Nominal off-state isolation	40 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum supply current (Isup)	0.1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO

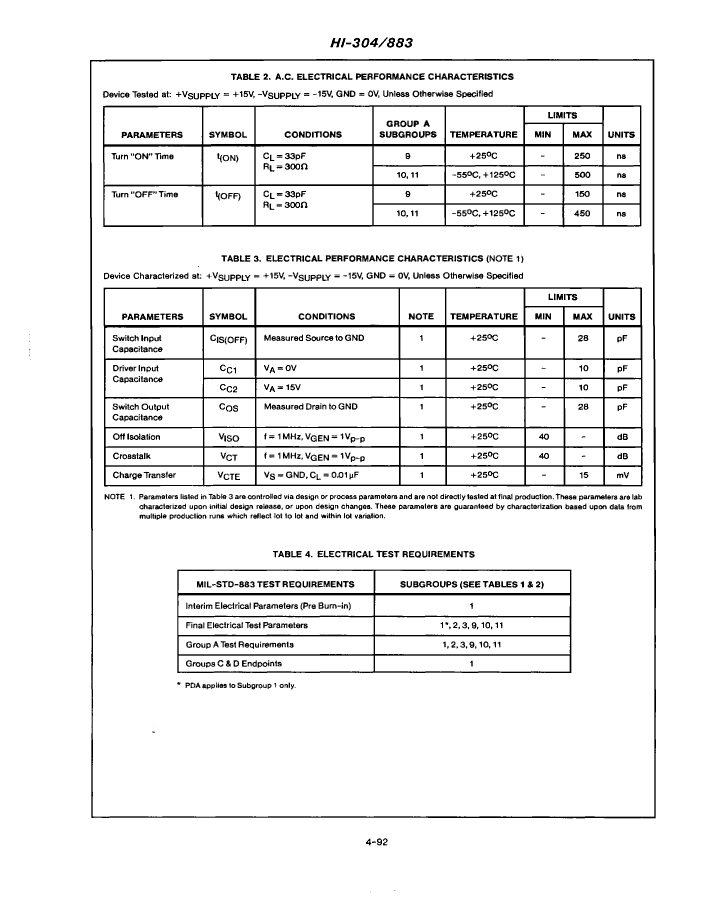

Maximum disconnect time	150 ns
Maximum connection time	250 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

	HI2-304/883	HI1-304/883
Description	DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, MBCY10	IC,ANALOG SWITCH,DUAL,SPST,CMOS,DIP,14PIN,CERAMIC
Reach Compliance Code	unknown	compliant
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	O-MBCY-W10	R-XDIP-T14
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	2	2
Number of terminals	10	14
Maximum on-state resistance (Ron)	50 Ω	75 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	METAL	CERAMIC
Package shape	ROUND	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Maximum connection time	250 ns	500 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL
