Technical Data Sheet

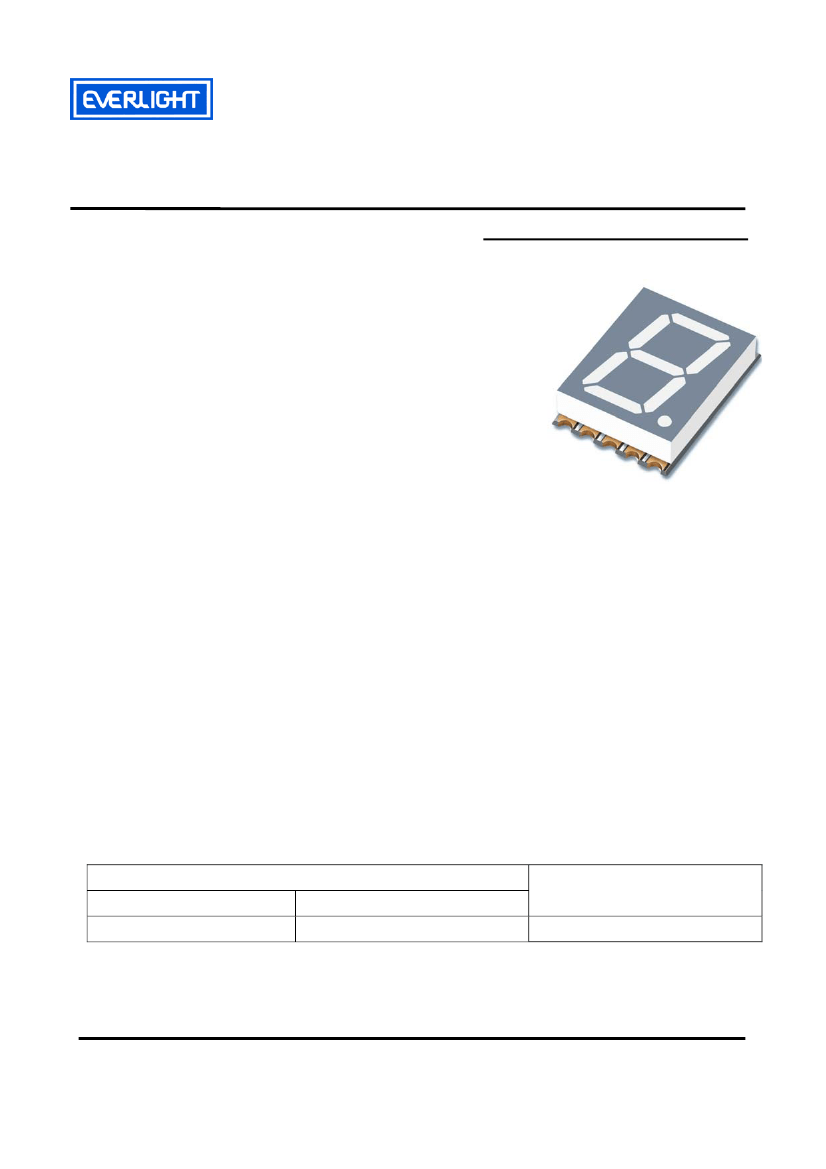

0.51" Single Digit SMD Displays
ELSS-505SYGWA/S530-E2
Features
․Packaged
in tape and reel for SMT manufacturing.
․Design
flexibility(common cathode or anode).
․Categorized
for luminous intensity.
․The
thickness is thinness than tradition display.
․Pb
free
․The
product itself will remain with RoHS compliant
version.
Descriptions
․The
SMD type is much smaller than tradition
type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
Applications
․Suitable
for indoor use.
․Audio
system.
․Set
top box.
․Game
machine.
․Channel
indicator of TV.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Brilliant Yellow Green
Gray
Face Color
Everlight Electronics Co., Ltd.
Device No: CDGS-505-004
http://www.everlight.com
Prepared date: 2005/09/20
Rev.
2
Page 1 of 5
Angel Zhang
Prepared by:
ELSS-505SYGWA/S530-E2

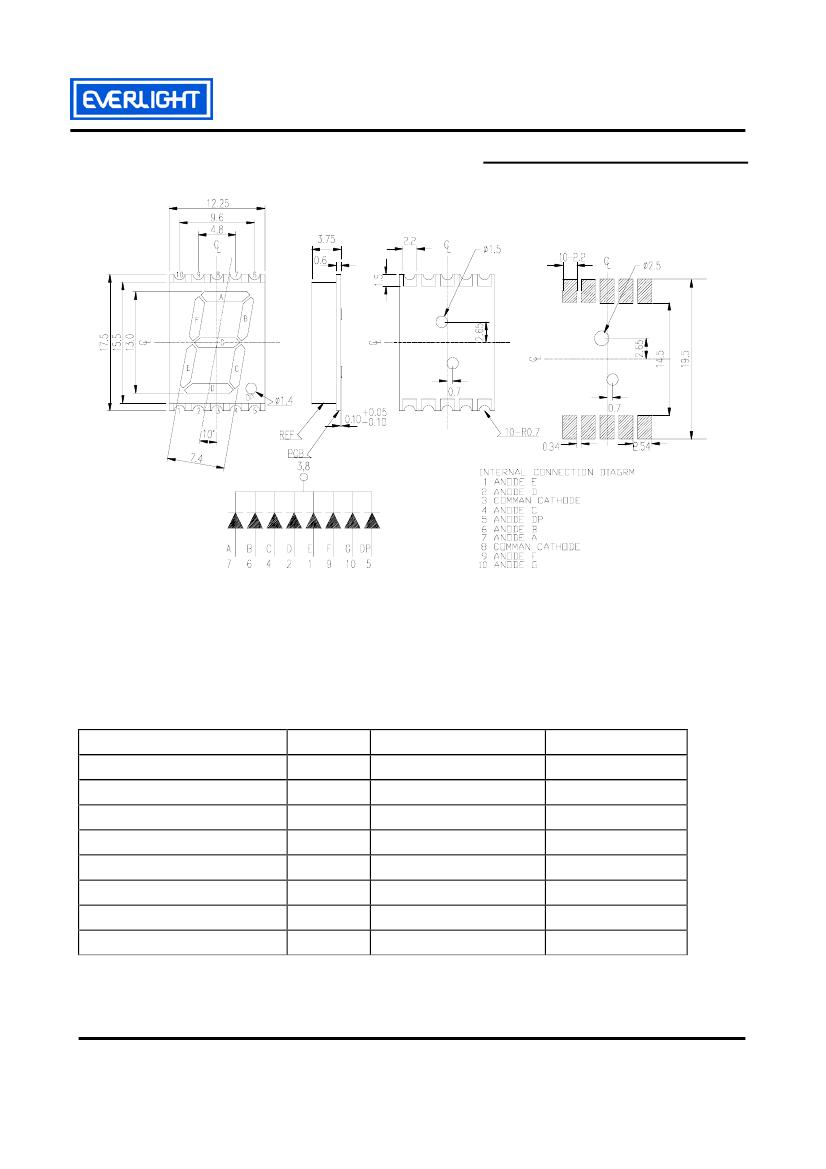

Package Dimensions
Land Pattern(Recommend)
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm unless otherwise noted.
․Above specification may be changed without notice. Supplier will reserve
authority on material change for above specification.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward Current
Pulse Forward Current
*1
Operating Temperature
Storage Temperature
Reflow Temperature
*2
Electrostatic Discharge
Power Dissipation
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
T
sol
ESD
P
d
V
R
Rating
25
60
-40 ~ +85
-40 ~ +85
260
2000
60
5
Units
mA
mA
℃
℃
℃
V
mW
V
Notes:
*1:I
FP
Conditions--Pulse Width≦10msec and Duty≦1/10.
*2:Reflow time≦5 seconds.
Everlight Electronics Co., Ltd.
Device No: CDGS-505-004
http://www.everlight.com
Prepared date: 2005/09/20
Rev.
2
Page 2 of 5
Angel Zhang
Prepared by:
ELSS-505SYGWA/S530-E2
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Symbol
V
F
I
R
Min.
--
--
Typ.
2.0
--
Max.
2.4
10
Units
V
μA
Condition
I
F
=20mA
V
R
=5V
Luminous
Per segment
Intensity
I
V
Per decimal
point
λ
p
λ
d
△λ
4.0
10.8
----
mcd
I
F
=10mA
1.4
3.9
----
Peak Wavelenght
Dominant Wavelenght
Spectrum Radiation
Bandwidth
--
--
--
575
573
20
--
--
--
nm
nm
nm
I
F
=20mA
I
F
=20mA
I
F
=20mA
Chromaticity Coordinates Specifications for Bin Grading (Unit: mcd)
Rank
N
P
Q
R
S
Min.
4.0
5.6
7.8
11.0
15.0
Max.
6.4
8.9
12.5
17.6
24.0
Rank
T
U
V
W
---
Min.
21.0
30.0
42.0
59.0
---
Max.
34.0
48.0
67.0
94.0
---
Everlight Electronics Co., Ltd.
Device No: CDGS-505-004
http://www.everlight.com
Prepared date: 2005/09/20
Rev.
2
Page 3 of 5
Angel Zhang
Prepared by:
ELSS-505SYGWA/S530-E2

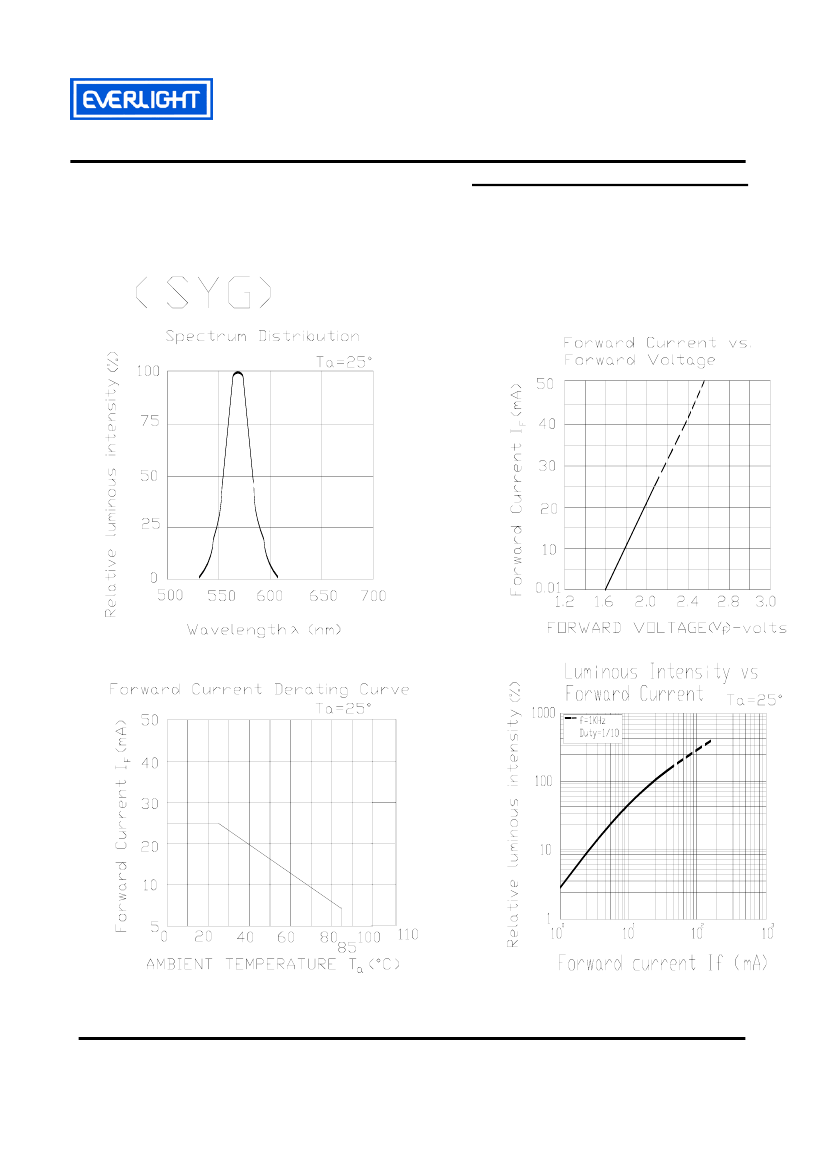

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No: CDGS-505-004
http://www.everlight.com
Prepared date: 2005/09/20
Rev.
2
Page 4 of 5
Angel Zhang
Prepared by:
ELSS-505SYGWA/S530-E2
■
Reflow Temp. / Time :
■
Soldering Iron :
Basic spec is
≦5
sec when 260℃.If temperature is higher, time should be shorter (+10℃
→
-1sec). Power dissipation of iron should be smaller than 15 W , and temperature should
be controllable. Surface temperature of the device should be under 230
℃.
■
Rework :
1. Customer must finish rework within 5 sec under 260℃.
2. The head of iron can not touch copper foil.
Everlight Electronics Co., Ltd.
Device No: CDGS-505-004
http://www.everlight.com
Prepared date: 2005/09/20
Rev.
2
Page 5 of 5
Angel Zhang
Prepared by:
