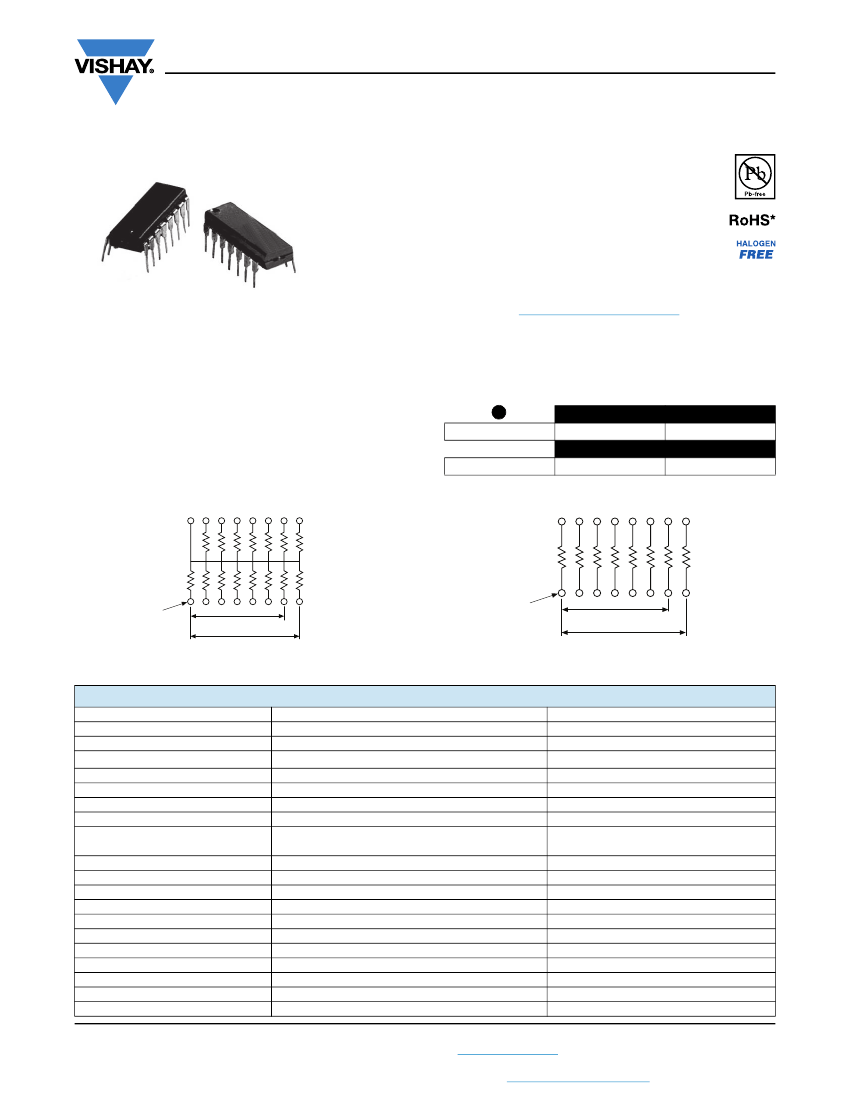

TDP
www.vishay.com
Vishay Dale Thin Film

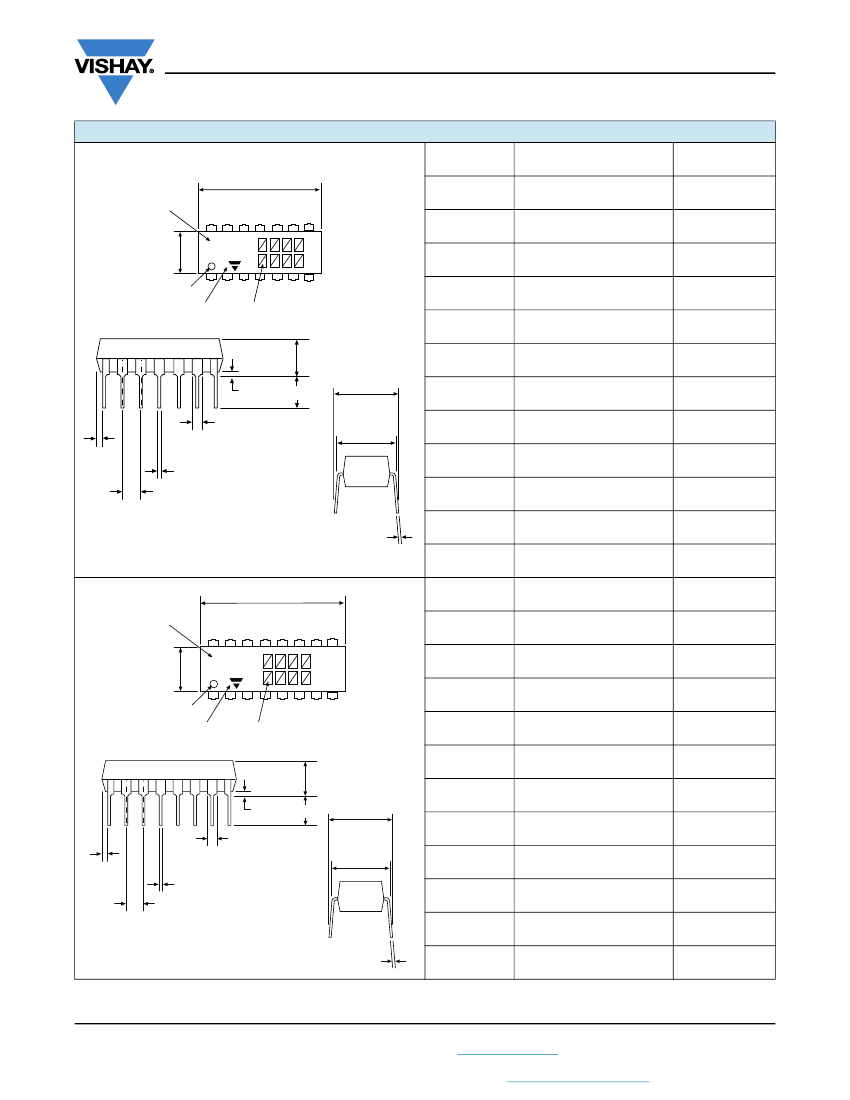

Molded, Dual-In-Line Thin Film Resistor, Through Hole Network
FEATURES
• Standard rugged, molded case construction
(14 pins and 16 pins)
Available
• Highly stable thin film
(500 ppm at +70 °C at 2000 h)
Available
• Low temperature coefficient (± 25 ppm/°C)
• Compatible with automatic insertion equipment
• Standard isolated pin one common schematic
• Isolated and bussed schematics
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
Actual Size
Vishay Dale Thin Film offers two standard circuits in a
14 pins and 16 pins molded dual-in-line over a 100
Ω
to
100 kΩ resistance range. The networks feature ratio
tolerance to 0.05 % with a TCR tracking of 5 ppm/°C.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
ABSOLUTE
0.1
TRACKING
5
RATIO
0.05
SCHEMATIC
Schematic TDP01
Schematic TDP03
Pin 1
Pin 1
TDP-1401
TDP-1601
TDP-1403
TDP-1603
Models: TDP1403 and TDP1603
7 or 8 isolated resistors
Models: TDP1401 and TDP1601
13 or 15 resistors with one pin common
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
Revision: 24-Sep-13
SPECIFICATIONS
Passivated nichrome
14, 16
100
Ω
to 100 kΩ
± 25 ppm/°C
± 5 ppm/°C
± 0.1 %
± 0.05 % to ± 0.5 %
0.05 W/resistor = 01 circuit
0.10 W/resistor = 03 circuit
0.8 W/package
ΔR
± 0.05 %
ΔR
± 0.015 %
< 1 ppm/V (typical)
100 V
-55 °C to +125 °C
-55 °C to +150 °C
< -30 dB
0.08 μV/°C
ΔR
± 0.01 %
ΔR
± 0.002 %
CONDITIONS
-
-
-
-55 °C to +125 °C
-55 °C to +125 °C
+25 °C
+25 °C
at +25 °C
Maximum at +70 °C
2000 h at +70 °C
2000 h at +70 °C
-
-
-
-
-
-
1 year at +25 °C
1 year at +25 °C
Document Number: 60045
