356 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> 356

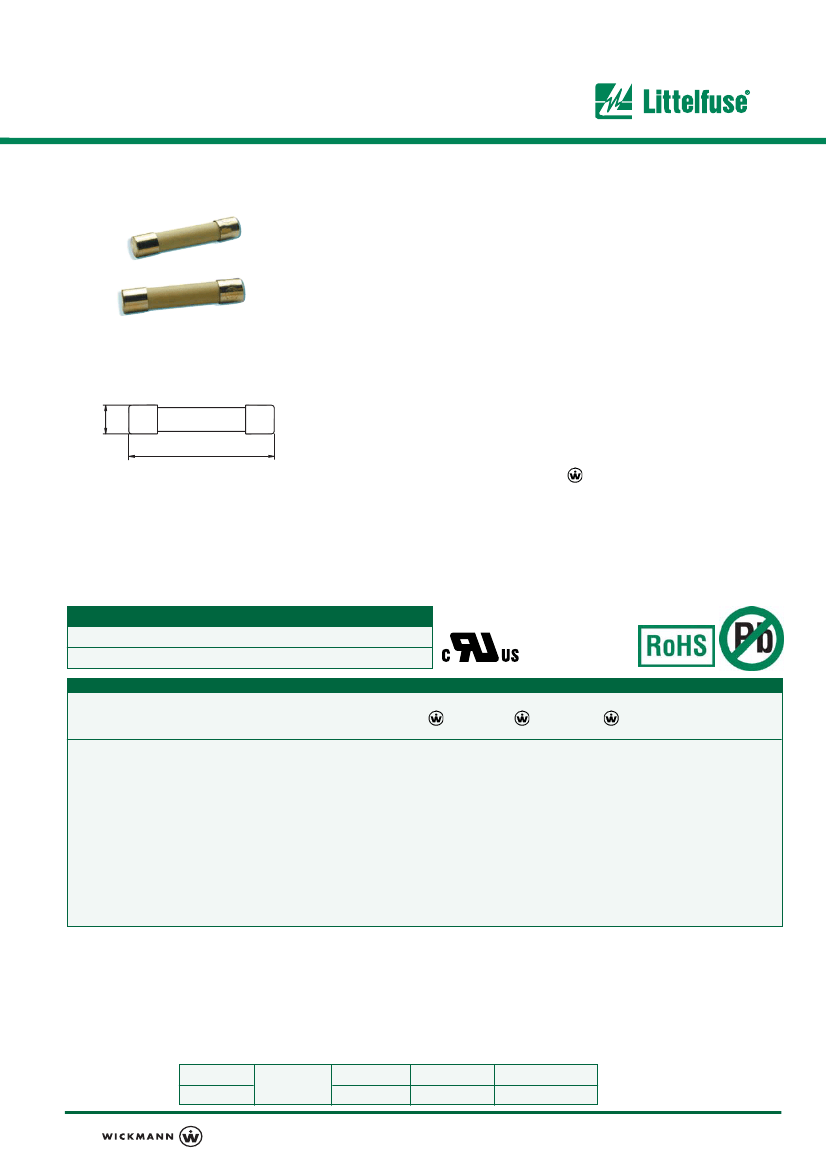

356: DescriptionFEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size68KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet View All

356 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	356	-	-	View	Buy Now

356 Overview

FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

Preview

Download Datasheet

View All

INIATURE

USES

6.3x32 mm / No. 356

Leadfree

Type,

Special Type, 440 V, T

T ime-Current

Time Lag (T)

None

Specifications

Packaging

Materials

002: Pack (100 pcs.)

Tube:

End Caps:

Ceramic

Nickel-plated brass

Characteristic

Standard

Approvals

cULus Recognized: File No. E 67006

Temperature

Operating Temperature

Climatic Category

Stock Conditions

Features

Dimensions (mm)

For high voltage applications

Surge tolerant

High breaking capacity

Agency approved

Pluggable into clips or shocksafe holders

-25ºC to +70ºC (consider de-rating)

-25ºC/+70ºC/21 days (EN 60068-1..3)

+10ºC to +60ºC

relative humidity

≤

75% yearly average,

without dew, maximum value for 30 days-95%

24 cycles at 15 min. each (EN 60068-6)

10 - 60Hz at 0.75mm amplitude

60 - 2000Hz at 10g acceleration

, T, Current Rating, 440V, Approvals

Vibration Resistance

∅

6,3

Marking

Weight

Unit Weight

3.0g (approx.)

Limits for Pre-arcing Time

Rated Current

400 mA ... 10.00 A

1.5 x I

>1h

2.5 x I

< 15 min

4 x I

150 ms ... 2 s

10 x I

10 ms ... 300 ms

100%

Permissible continuous operating current is

≤

100% at ambient temperature of 23ºC (73.4ºF).

Rated

Amp

Voltage

Breaking

Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x I

1.5 x I

10 x I

max. (mV)

max. (W)

min. (A

400 mA

500 mA

630 mA

800 mA

1.00 A

1.25 A

1.60 A

2.00 A

2.50 A

3.15 A

4.00 A

5.00 A

6.30 A

8.00 A

10.00 A

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

1500

1630

1800

2100

440 V

1200

1100

800

700

500

350

320

270

250

230

200

180

150

140

120

1.5

1.6

1.7

1.8

2.0

2.3

2.4

2.6

3.0

3.2

3.8

4.0

0.16

0.53

2.0

3.1

4.4

3.1

8.3

9.2

130

240

510

Approvals

cURus

1000A / 440VAC

50-60Hz

cos

= 1.0

•

1 Depending on the application and mounting, the fuse heating at max. ambient temperature in a closed fuseholder should be considered.

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

050913

Qty.

Order-

Number

Series

356

Amp Code

Packaging

Specifications are subject

to change without notice

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

WebSite

www.littelfuse.com
