12-21SURC-S530-XX-TR8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> 12-21SURC-S530-XX-TR8

12-21SURC-S530-XX-TR8: DescriptionT-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm; CategoryLED optoelectronic/LED; File Size178KB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

12-21SURC-S530-XX-TR8 Overview

T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm

12-21SURC-S530-XX-TR8 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Number of terminals	2
Viewing angle	120 deg
Processing package description	ROHS COMPLIANT, SMD, 2 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE-UNCONFIRMED
terminal coating	NOT SPECIFIED
structure	SINGLE
Optoelectronic device type	SINGLE COLOR LED
color	BRILLIANT RED
Maximum continuous forward current	25 mA
LED height	2 mm
lead gap	2.8 mm
Lens type	WATER CLEAR
light intensity	47.0
Installation features	SURFACE MOUNT
peak wavelength	632
shape	ROUND
size	2 mm
T code	T-3/4

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

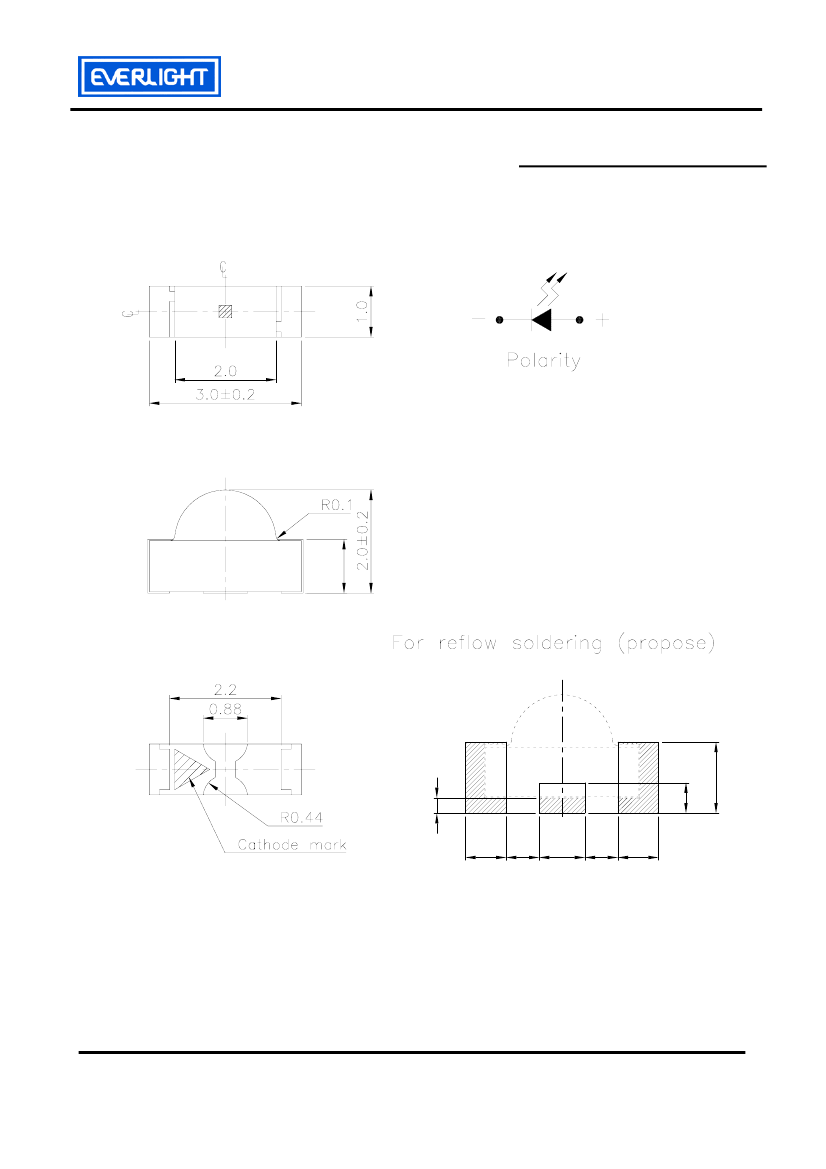

Chip LED with Right Angle Lens

12-21SURC/S530-A3/TR8

Features

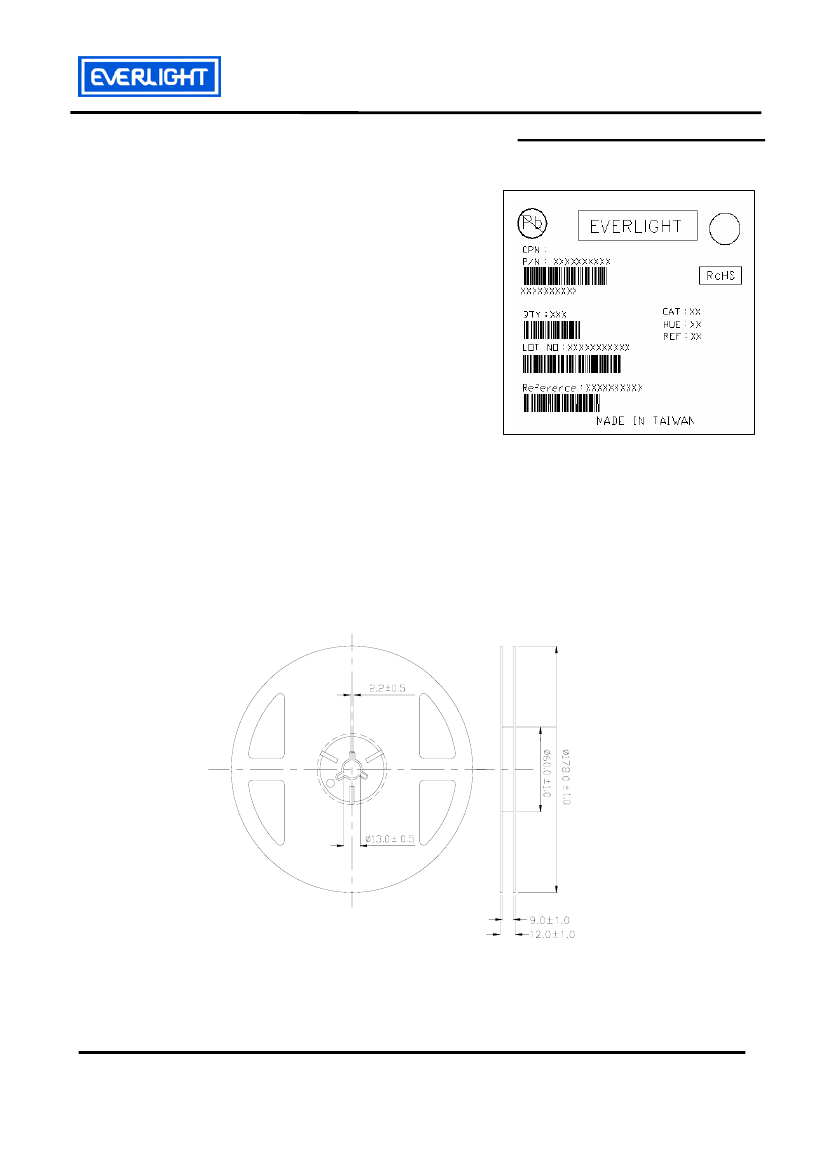

․Package

in 8mm tape on 7〞diameter reel.

․Compatible

with automatic placement equipment.

․Compatible

with infrared and vapor phase reflow

solder process.

․Mono-color

type.

․Pb-free.

․The

product itself will remain within RoHS compliant version.

Descriptions

․The

12-21 SMD Taping is much smaller

than lead frame type components, thus

enable smaller board size, higher packing

density, reduced storage space and finally

smaller equipment to be obtained.

․Besides,

lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting

in dashboard and switch.

․Telecommunication:

indicator and backlighting in

telephone and fax.

․Flat

backlight for LCD, switch and symbol.

․General

use.

Device Selection Guide

Chip

Part No.

Material

12-21SURC/S530-A3/TR8

AlGaInP

Hyper Red

Water Clear

Emitted Color

Resin Color

Everlight Electronics Co., Ltd.

Device No : SZDSE-121-027

http://www.everlight.com

Prepared date: 18-JUN-2007

Rev 1

Page: 1 of 9

Prepared by: Lina jing

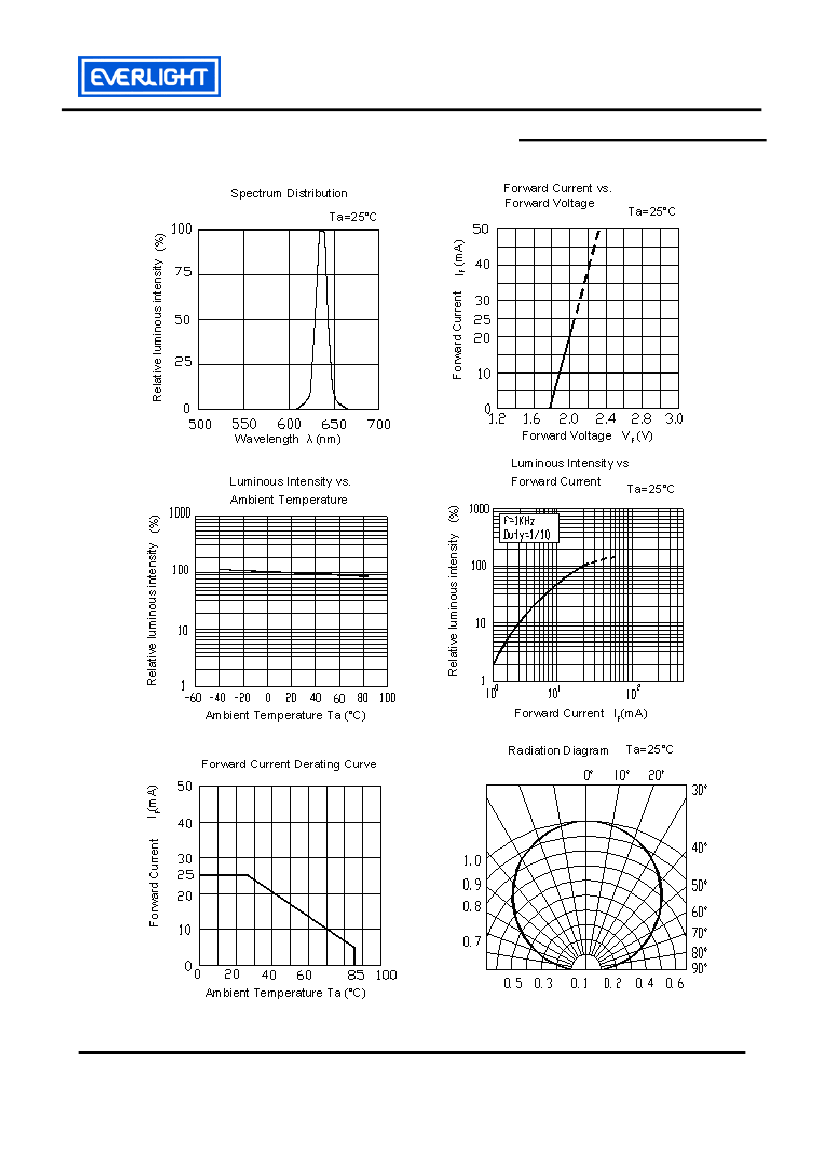

12-21SURC-S530-XX-TR8 Related Products

	12-21SURC-S530-XX-TR8	12-21SURC/S530-A2/TR8	12-21SURC/S530-XX/TR8	12-21SURC/S530-A6/TR8	12-21SURC/S530-A4/TR8	12-21SURC/S530-A5/TR8	12-21SURC-S530-A6-TR8	12-21SURC-S530-A5-TR8	12-21SURC-S530-A4-TR8
Description	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm	T-3/4 SINGLE COLOR LED, BRILLIANT RED, 2mm
Maximum operating temperature	85 Cel	85 °C	85 Cel	85 °C	85 °C	85 °C	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 Cel	-40 Cel	-40 Cel
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
color	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED	BRILLIANT RED
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
peak wavelength	632	632 nm	632	632 nm	632 nm	632 nm	632	632	632
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
T code	T-3/4	T-3/4	T-3/4	T-3/4	T-3/4	T-3/4	T-3/4	T-3/4	T-3/4
Viewing angle	120 deg	-	120 deg	-	-	-	120 deg	120 deg	120 deg
Processing package description	ROHS COMPLIANT, SMD, 2 PIN	-	ROHS COMPLIANT, SMD, 2 PIN	-	-	-	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN
Lead-free	Yes	-	Yes	-	-	-	Yes	Yes	Yes
EU RoHS regulations	Yes	-	Yes	-	-	-	Yes	Yes	Yes
state	ACTIVE-UNCONFIRMED	-	ACTIVE-UNCONFIRMED	-	-	-	ACTIVE-UNCONFIRMED	ACTIVE-UNCONFIRMED	ACTIVE-UNCONFIRMED
terminal coating	NOT SPECIFIED	-	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
structure	SINGLE	-	SINGLE	-	-	-	SINGLE	SINGLE	SINGLE
Optoelectronic device type	SINGLE COLOR LED	-	SINGLE COLOR LED	-	-	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
Maximum continuous forward current	25 mA	-	25 mA	-	-	-	25 mA	25 mA	25 mA
LED height	2 mm	-	2 mm	-	-	-	2 mm	2 mm	2 mm
lead gap	2.8 mm	-	2.8 mm	-	-	-	2.8 mm	2.8 mm	2.8 mm
light intensity	47.0	-	47.0	-	-	-	47.0	47.0	47.0
