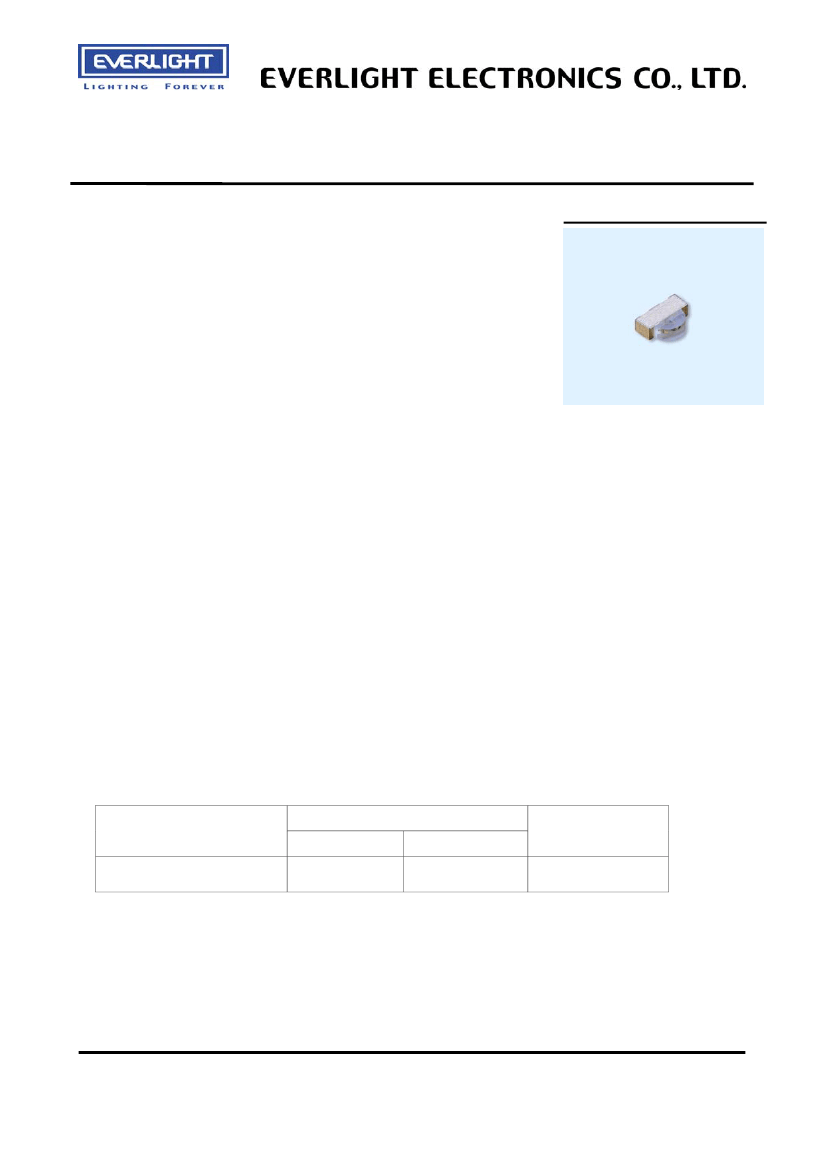

Technical Data Sheet
Chip LED with Right Angle Lens
12-21UBC/C430/TR8
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
12-21 SMD taping is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
Indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
12-21UBC/C430/TR8
Chip
Material
InGaN/SiC
Emitted Color
Blue
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : DSE-121-011
http://www.everlight.com
Prepared date: 6-Apr-2009
Rev.2
Page: 1 of9
Prepared by: Huang yongxin
12-21UBC/C430/TR8

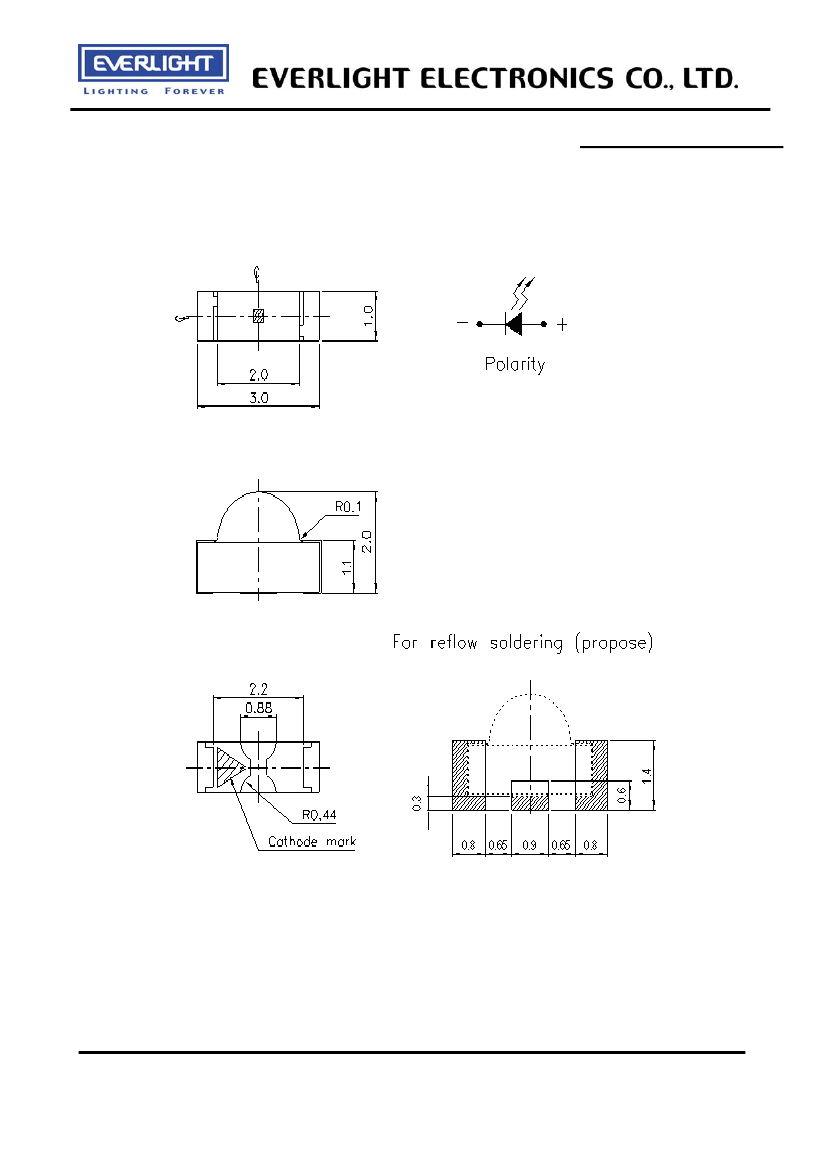

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-121-011
http://www.everlight.com
Prepared date: 6-Apr-2009
Rev.2
Page: 2 of9
Prepared by: Huang yongxin
12-21UBC/C430/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge（HBM）
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
P
d
ESD
Topr
Tstg
Tsol
Rating
5
30
70
130
1000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering :260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
I
V
2θ1/2
λp
λd
△
λ
V
F
I
R
Min.
17
----
----
----
----
----
----
Typ.
22
120
428
466
65
3.8
----
Max.
----
----
----
----
----
4.5
50
Unit
mcd
deg
nm
nm
nm
V
µA
Condition
I
F
=20mA
V
R
=5V
Everlight Electronics Co., Ltd.
Device No. : DSE-121-011
http://www.everlight.com
Prepared date: 6-Apr-2009
Rev.2
Page: 3 of9
Prepared by: Huang yongxin
12-21UBC/C430/TR8

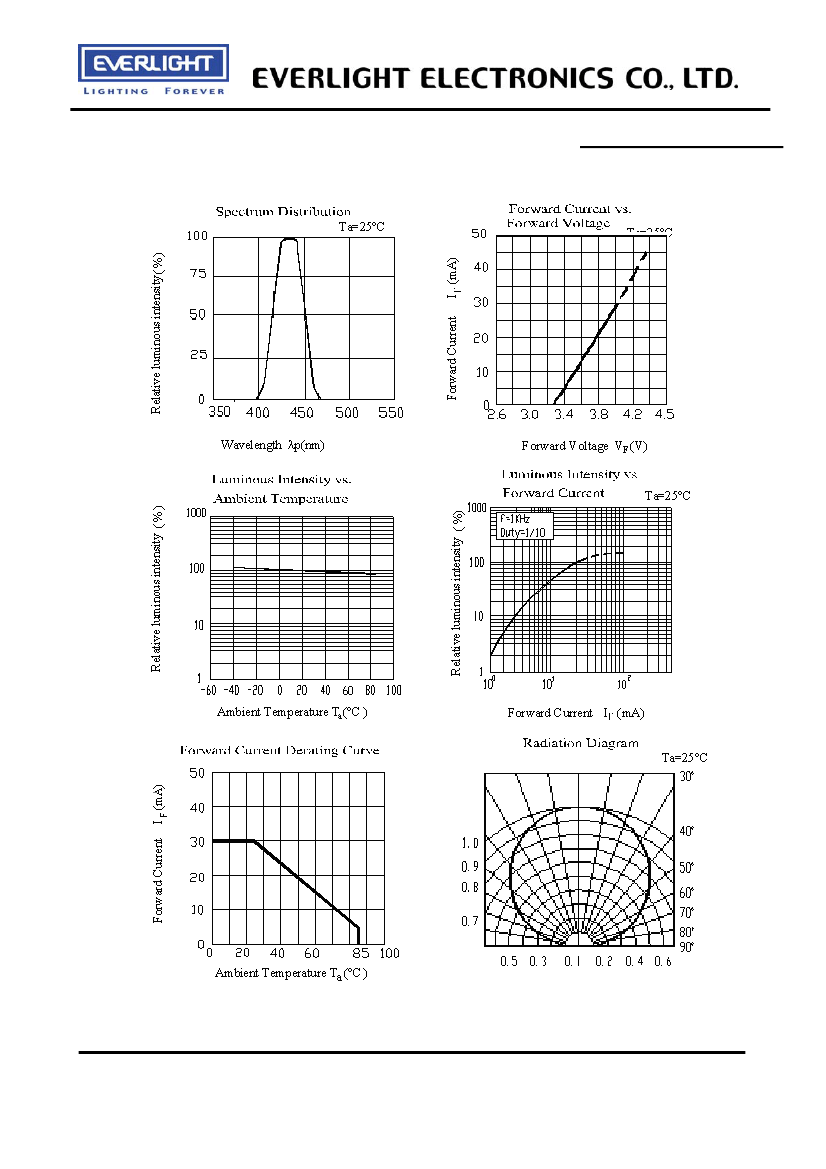

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. : DSE-121-011
http://www.everlight.com
Prepared date: 6-Apr-2009
Rev.2
Page: 4 of9
Prepared by: Huang yongxin
12-21UBC/C430/TR8
Label explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

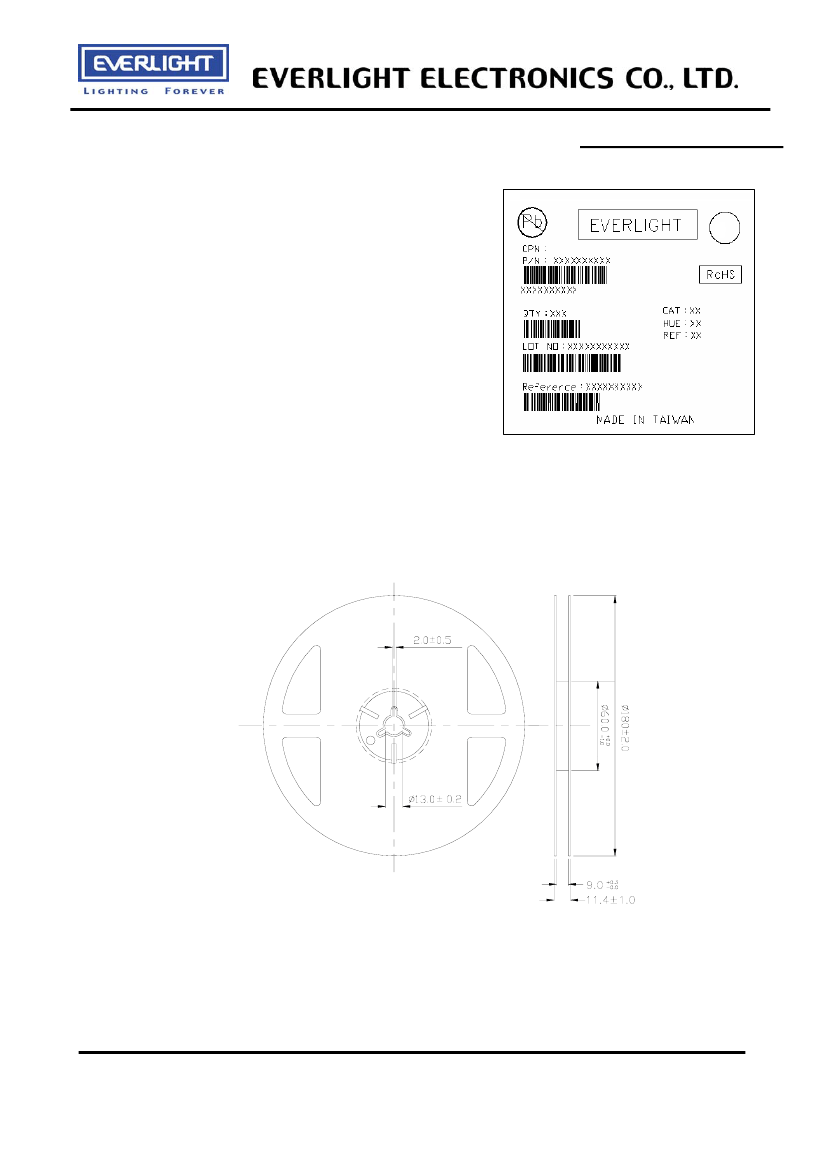

Reel Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-121-011
http://www.everlight.com
Prepared date: 6-Apr-2009
Rev.2
Page: 5 of9
Prepared by: Huang yongxin
