IDT71B229S28Y8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT71B229S28Y8

IDT71B229S28Y8: DescriptionCache SRAM, 32KX9, 28ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32; Categorystorage storage; File Size221KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71B229S28Y8 Overview

Cache SRAM, 32KX9, 28ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32

IDT71B229S28Y8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOJ
package instruction	0.300 INCH, SOJ-32
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	28 ns
Other features	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA
JESD-30 code	R-PDSO-J32
JESD-609 code	e0
length	20.96 mm
memory density	294912 bit
Memory IC Type	CACHE SRAM
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	32
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX9
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm
Base Number Matches	1

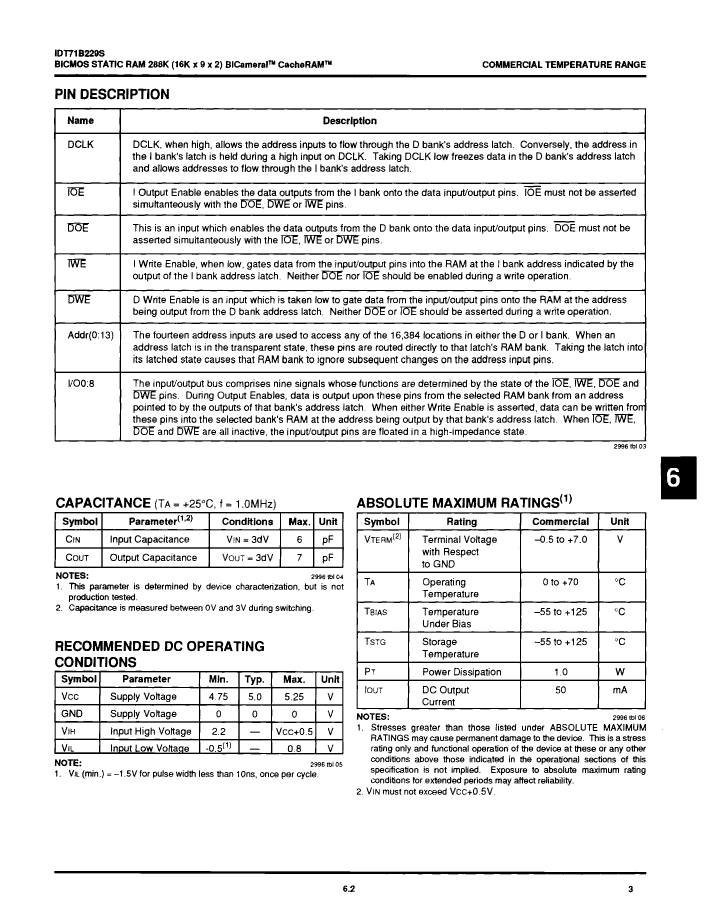

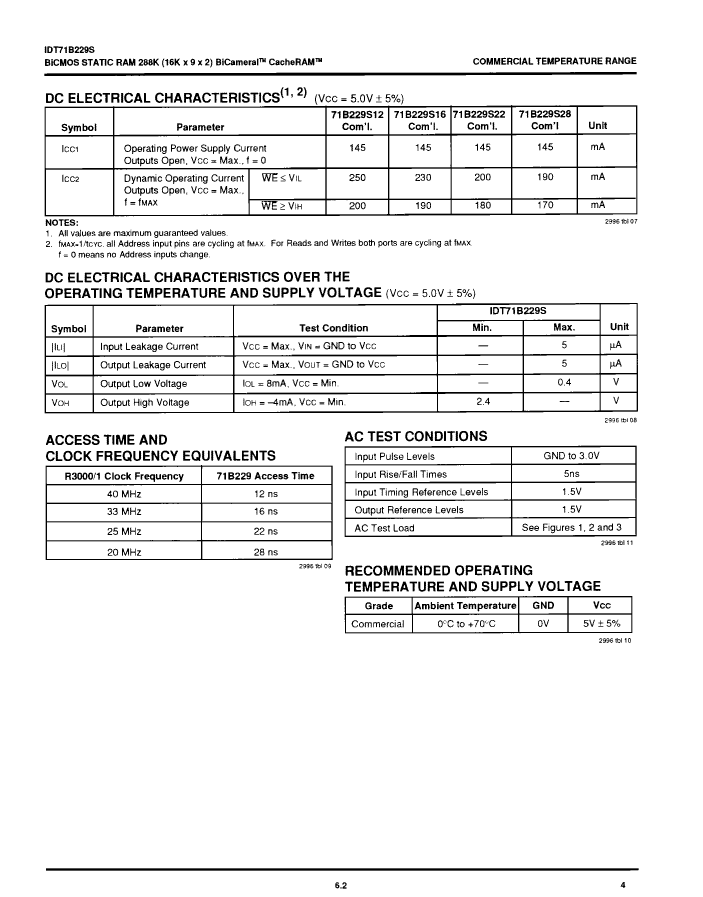

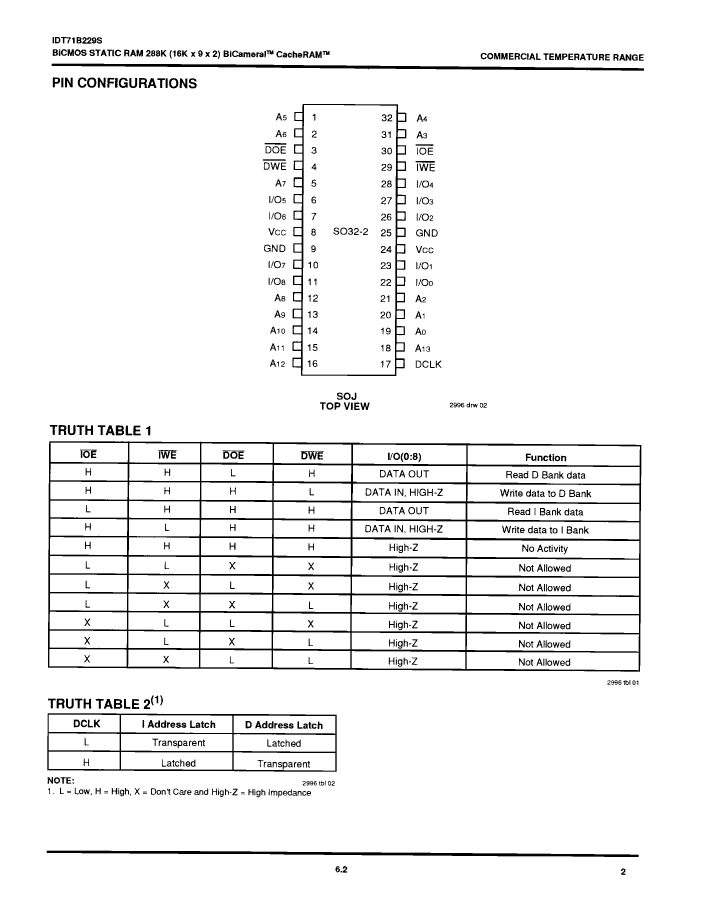

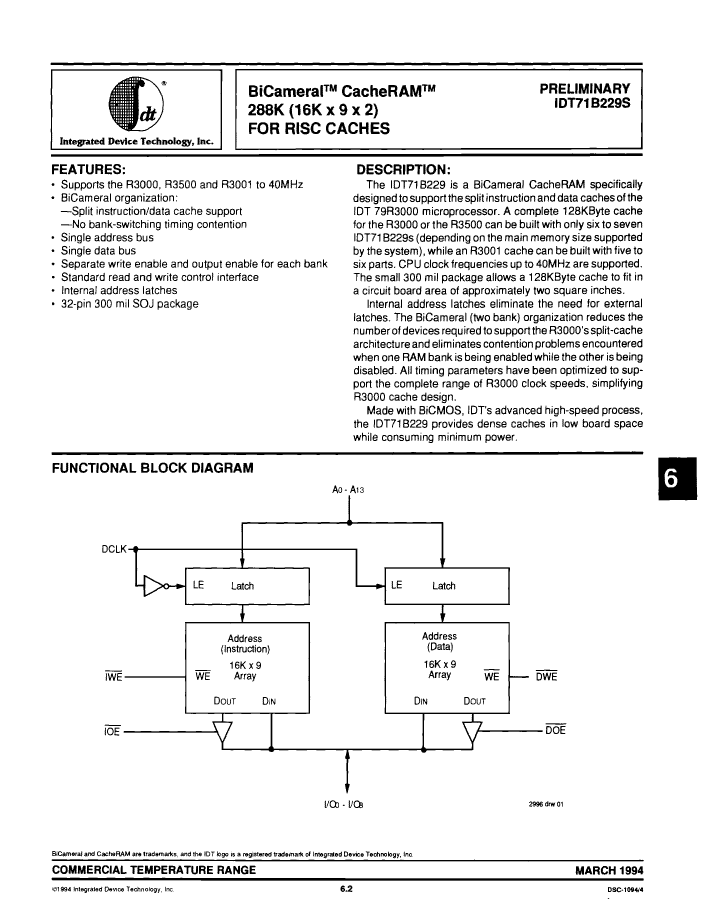

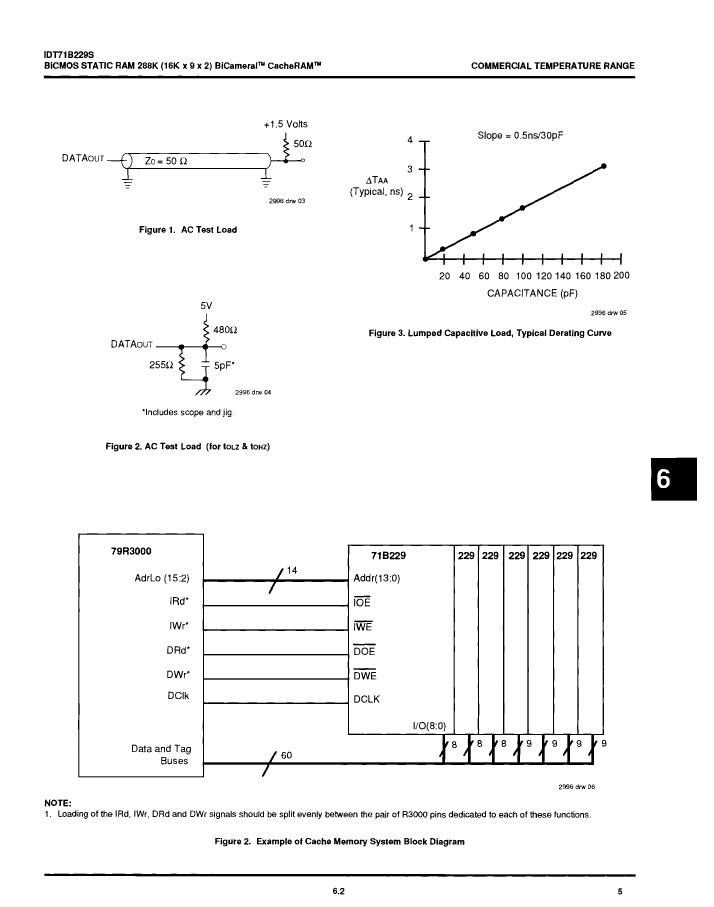

Preview

Download Datasheet

View All

IDT71B229S28Y8 Related Products

	IDT71B229S28Y8	IDT71B229S28Y	IDT71B229S12Y	IDT71B229S12Y8	IDT71B229S22Y8	IDT71B229S16Y	IDT71B229S22Y	IDT71B229S16Y8
Description	Cache SRAM, 32KX9, 28ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 28ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 12ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 12ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 22ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 16ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 22ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32	Cache SRAM, 32KX9, 16ns, BICMOS, PDSO32, 0.300 INCH, SOJ-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32	0.300 INCH, SOJ-32
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	compliant	not_compliant	not_compliant	compliant	compliant	not_compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	28 ns	28 ns	12 ns	12 ns	22 ns	16 ns	22 ns	16 ns
Other features	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA; ADDRESS LATCH	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA; ADDRESS LATCH	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA; ADDRESS LATCH	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA; ADDRESS LATCH	16K X 9 DUAL ARRAY FOR INSTRUCTION AND DATA
JESD-30 code	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm
memory density	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit	294912 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX9	32KX9	32KX9	32KX9	32KX9	32KX9	32KX9	32KX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	-	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
