PLSI2032-110LT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PLSI2032-110LT

PLSI2032-110LT: DescriptionEE PLD, 14.5ns, 32-Cell, CMOS, PQFP44, TQFP-44; CategoryProgrammable logic devices Programmable logic; File Size468KB，16 Pages; ManufacturerLattice; Websitehttp://www.latticesemi.com

Download Datasheet Parametric Compare View All

PLSI2032-110LT Overview

EE PLD, 14.5ns, 32-Cell, CMOS, PQFP44, TQFP-44

PLSI2032-110LT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	TQFP-44
Contacts	44
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	3 EXTERNAL CLOCKS
maximum clock frequency	77 MHz
In-system programmable	NO
JESD-30 code	S-PQFP-G44
JTAG BST	NO
length	10 mm
Humidity sensitivity level	3
Dedicated input times	2
Number of I/O lines	32
Number of macro cells	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP44,.47SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
power supply	5 V
Programmable logic type	EE PLD
propagation delay	14.5 ns
Certification status	Not Qualified
Maximum seat height	1.27 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
Base Number Matches	1

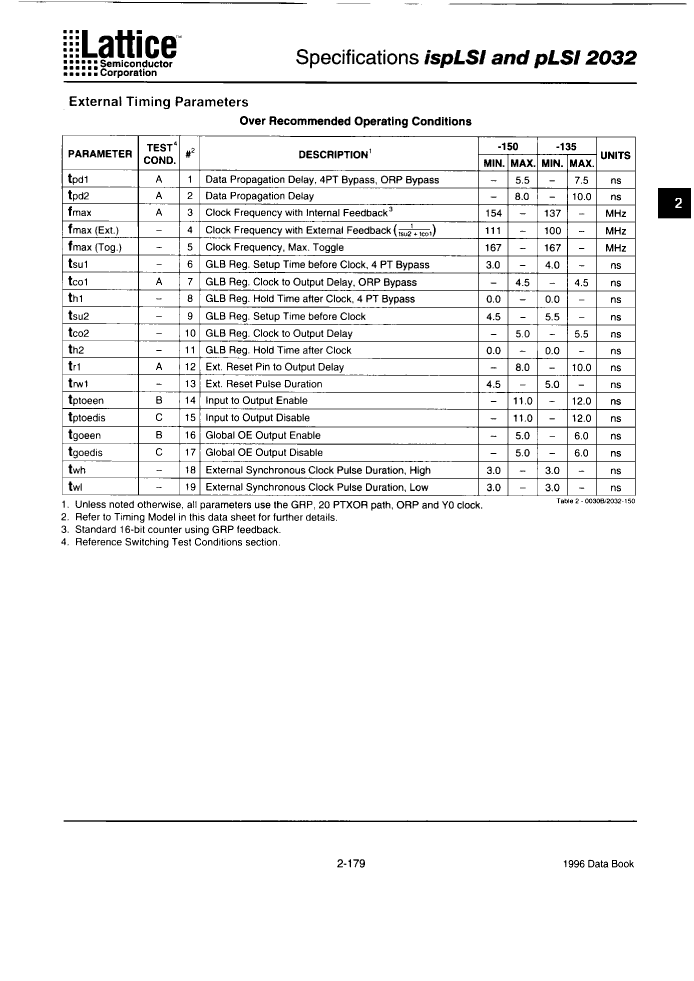

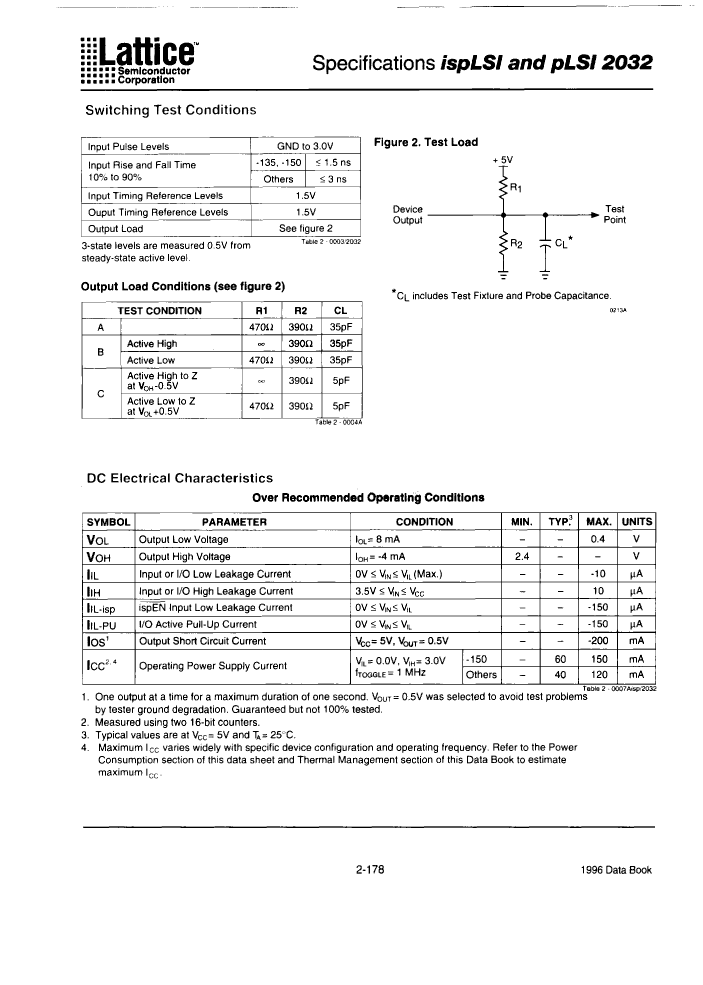

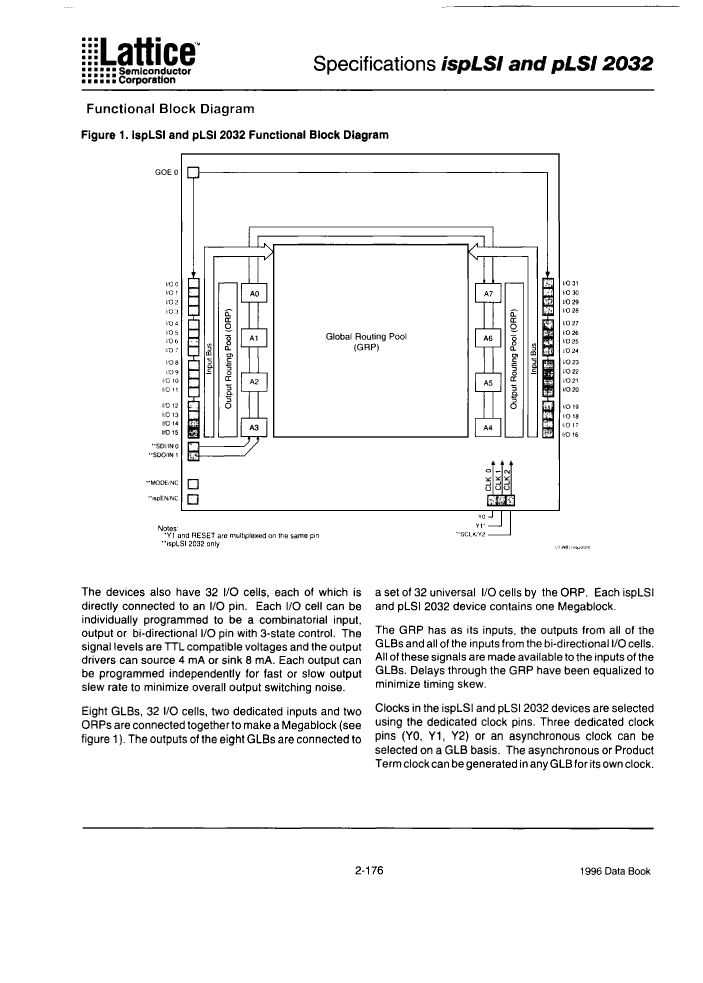

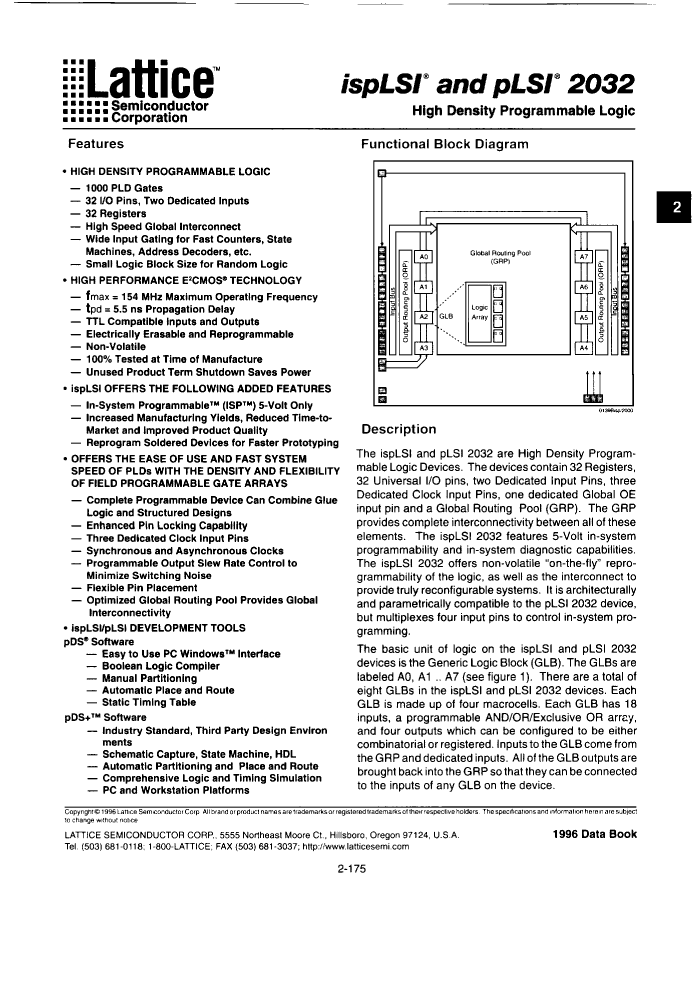

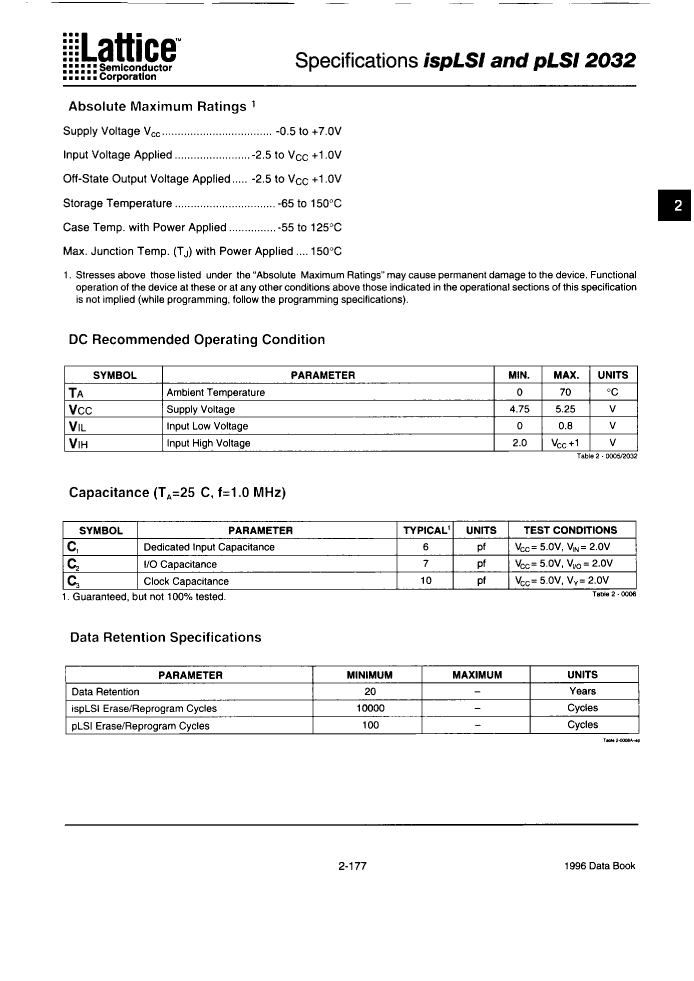

Preview

Download Datasheet

View All

PLSI2032-110LT Related Products

	PLSI2032-110LT	PLSI2032-135LT	PLSI2032-150LT	PLSI2032-80LT
Description	EE PLD, 14.5ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 12ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 11ns, 32-Cell, CMOS, PQFP44, TQFP-44	EE PLD, 24ns, 32-Cell, CMOS, PQFP44, TQFP-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	QFP	QFP
package instruction	TQFP-44	TQFP-44	TQFP-44	TQFP-44
Contacts	44	44	44	44
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS	3 EXTERNAL CLOCKS
maximum clock frequency	77 MHz	100 MHz	111 MHz	57 MHz
In-system programmable	NO	NO	NO	NO
JESD-30 code	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44
JTAG BST	NO	NO	NO	NO
length	10 mm	10 mm	10 mm	10 mm
Humidity sensitivity level	3	3	3	3
Dedicated input times	2	2	2	2
Number of I/O lines	32	32	32	32
Number of macro cells	32	32	32	32
Number of terminals	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O	2 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LQFP	LQFP
Encapsulate equivalent code	QFP44,.47SQ,32	QFP44,.47SQ,32	QFP44,.47SQ,32	QFP44,.47SQ,32
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
power supply	5 V	5 V	5 V	5 V
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	14.5 ns	12 ns	11 ns	24 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	10 mm	10 mm	10 mm	10 mm
Base Number Matches	1	1	1	1
