MKF13477-6-1-707 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MKF13477-6-1-707

MKF13477-6-1-707: DescriptionBoard Connector, 7 Contact(s), 2 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Locking Mech; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKF13477-6-1-707 Overview

Board Connector, 7 Contact(s), 2 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Locking Mech

MKF13477-6-1-707 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZATION AVAILABLE
body width	0.236 inch
subject depth	0.469 inch
body length	0.783 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.047 inch
Insulation resistance	1000000000 Ω
insulator material	POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	MKF13470
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Rated current (signal)	2.5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	7
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

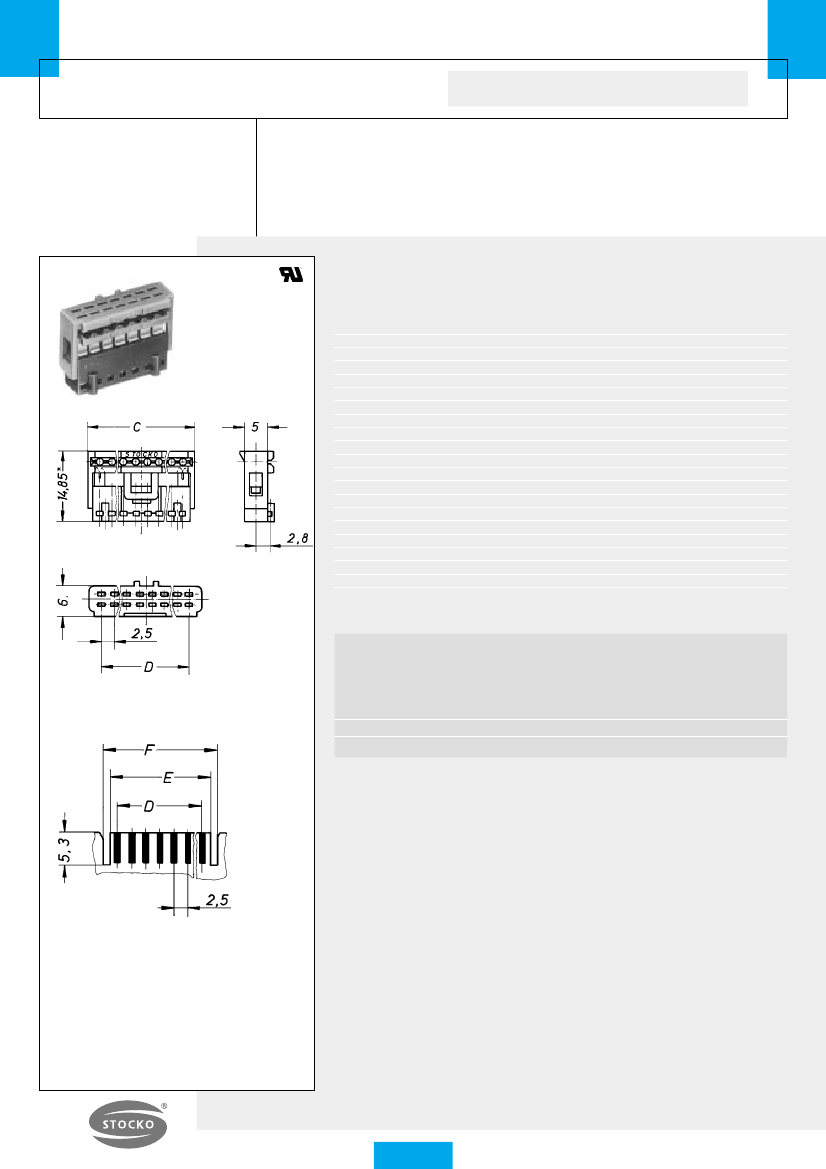

Serie / Series

andverbinder

R andv erbinder in Schneidklemmtechnik

I DC edge connectors

MKF 13470

Serie MKF 13470 für Rastersteg- und Einzelleiter

Series MKF 13470 for ribbon cable and discrete wire

Polzahl

Positions

Artikel-Nummer

Part number

MKF

13472 - 6 -

- 202

13473 - 6 -

- 303

13474 - 6 -

- 404

13475 - 6 -

- 505

13476 - 6 -

- 606

13477 - 6 -

- 707

13478 - 6 -

- 808

13479 - 6 -

- 909

13480 - 6 -

- 1010

13481 - 6 -

- 1111

13482 - 6 -

- 1212

13483 - 6 -

- 1313

13484 - 6 -

- 1414

13485 - 6 -

- 1515

13486 - 6 -

- 1616

13487 - 6 -

- 1717

13488 - 6 -

- 1818

13489 - 6 -

- 1919

13490 - 6 -

- 2020

Abmessungen C

Dimensions

7,4

9,9

12,4

14,9

17,4

19,9

22,4

24,9

27,4

29,9

32,4

34,9

37,4

39,9

42,4

44,9

47,4

49,9

52,4

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

45,0

47,5

4,3

6,8

9,3

11,8

14,3

16,8

19,3

21,8

24,3

26,8

29,3

31,8

34,3

36,8

39,3

41,8

44,3

46,8

49,3

7,45

9,95

12,45

14,95

17,45

19,95

22,45

24,95

27,45

29,95

32,45

34,95

37,45

39,95

42,45

44,95

47,45

49,95

52,45

Bitte fügen Sie hier die

Kennziffer

für den Leiterquerschnitt gemäß nachfolgender Tabelle ein.

Please enter here the

code number

for the required wire size as indicated in the chart below.

* nach Montage 11,9 mm

* after assembly 11.9 mm

Massivleiter

Solid wire

0,4 mm Ø

0,5-0,6 mm Ø

Litze, 7 drähtig verseilt

7 stranded wire

0,14 mm

0,22-0,25 mm

AWG

Isolations Ø

Insulation Ø

1,2-1,5 mm

Kennziffer

Code number

Leiterplattendicke 1,6 mm

PCB thickness 1.6 mm
